UNS N02200 Seamless And Welded Nickel Alloy Steel Tube For Heat Exchanger
Product Details
Seamless Nickel Alloy Steel Tube
,Heat Exchanger Nickel Alloy Tube
,UNS N02200
Nickel 200 UNS N02200 Seamless and welded Nickel Alloy Steel Tube
Type: Nickel alloy steel pipes
Application: For Chemical Equipment, Sea Water Equipment, Heat Exchangers
Technique: Cold-finished, hot-finished
Size:
| OD | 5-420mm |
| WT | 0.5-50mm |
| LENGTH | max12000mm |
Chemical Composition:
| Weight% | Ni | Cu | Fe | Mn | C | Si | S |
| Nickel Alloy 200 | 99.0 min | 0.25 max | 0.40 max | 0.35 max | 0.15 max | 0.35 max | 0.01 max |
| Nickel Alloy 201 | 99.0 min | 0.25 max | 0.40 max | 0.35 max | 0.02 max | 0.35 max | 0.01 max |
Mechanical proporties:
| Material | Tensile Strength | Yield Strength (0.2% Offset) | Elongation in 2" (%) | Hardness | |||
| ksi | MPa | ksi | MPa | Brinnell (3000kg) | Rockwell B | ||
| Nickel 200 | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | 90-120 | 45-70 |
| Nickel 201 | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | 90-120 | 45-70 |

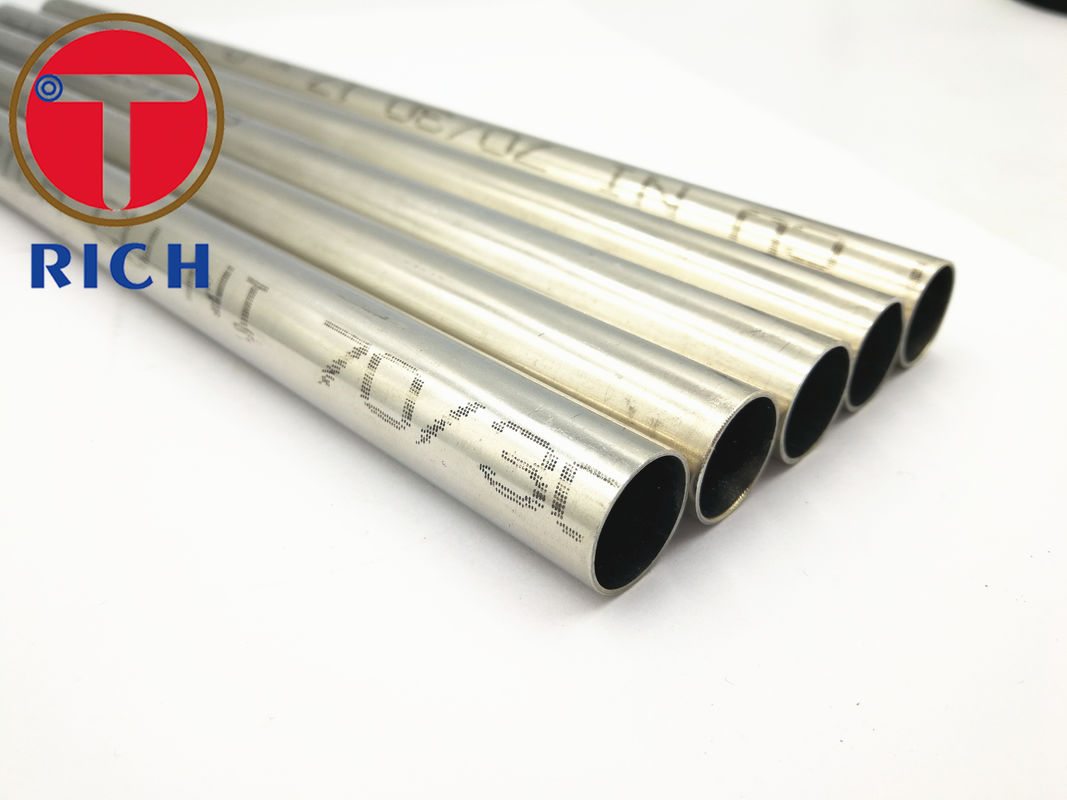

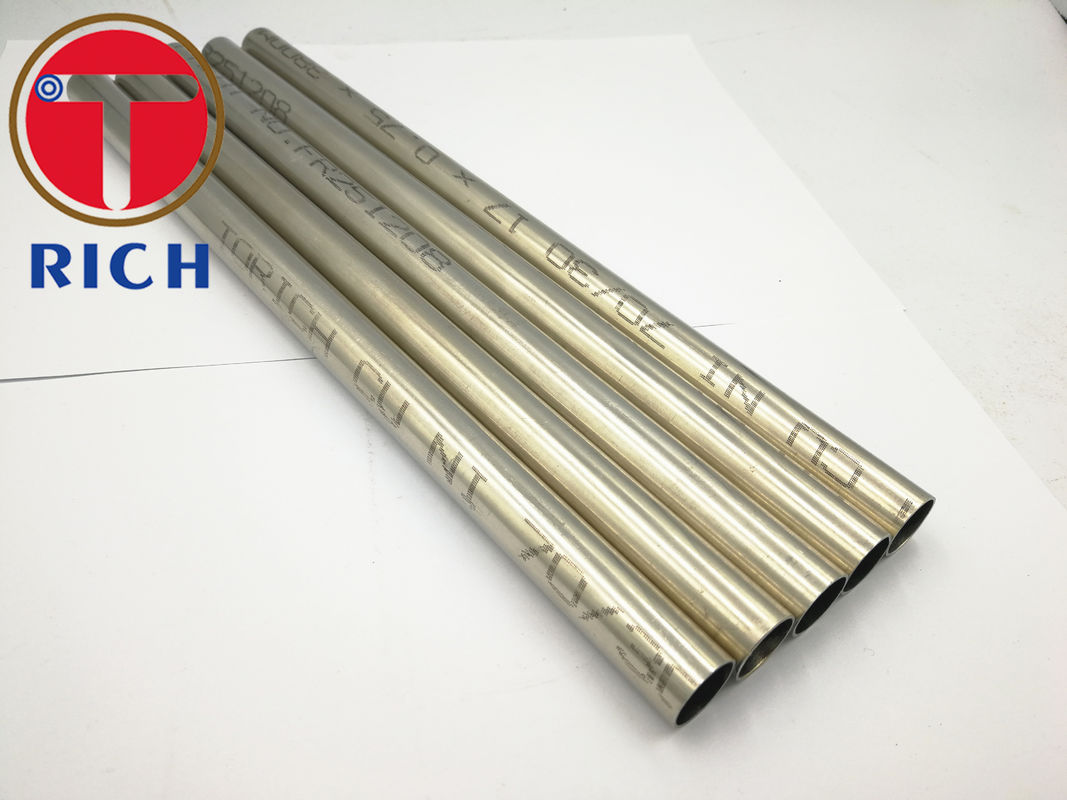

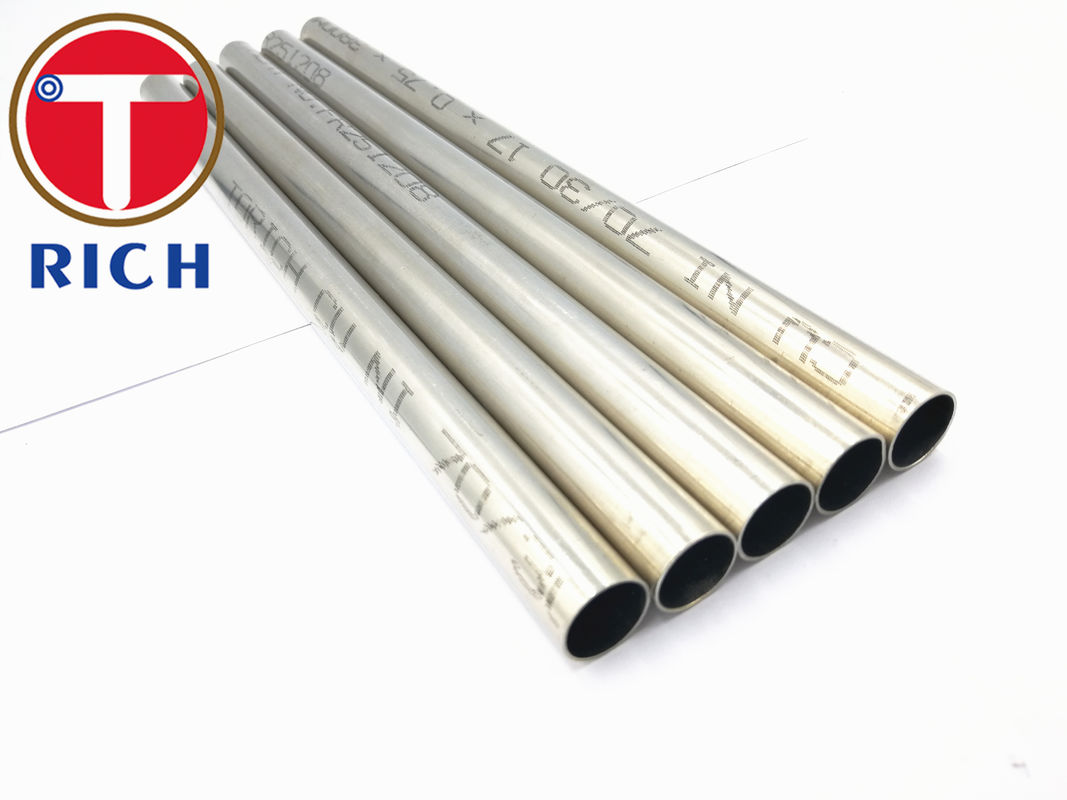

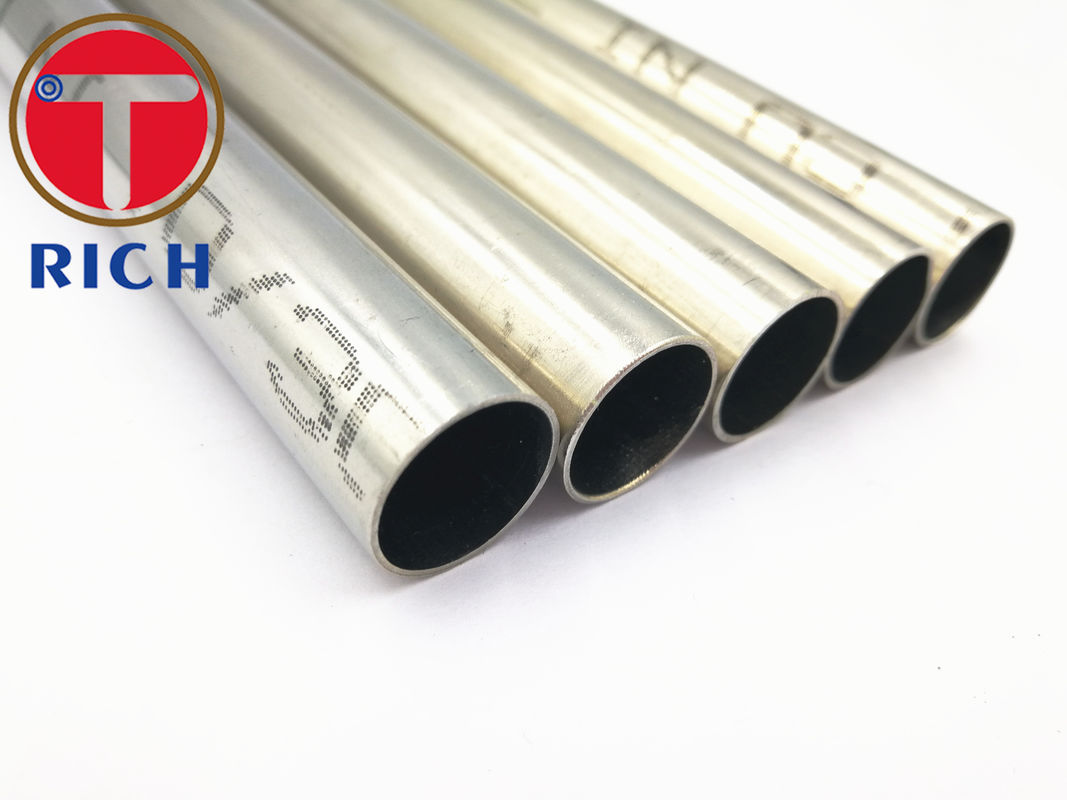

Product show:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
