ASTM B163 Nickel 200 Seamless Tube Nickel Alloy Tube For Seawater Heat Exchanger
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 0.5 tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | In woon boxes. | Delivery Time : | 7-15 week days |
Payment Terms : | L/C, D/A, D/P, T/T | Supply Ability : | 20000tons per year |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | IS09001 ISO14001 TS16949 | Model Number: | UNS N06601 |
Detail Information |
|||
Product Name: | UNS N06601 Nickel Alloy Tubes | Material: | ASTM A718 UNS N06601 |
---|---|---|---|
End: | Plain | Length: | As Per Customer's Requests |
Production: | Cold Drawn Or Cold Rolled | Origin: | China |
High Light: | ASTM A718 Nickel Alloy Tubes,UNS N06601 Nickel Alloy Tubes |
Product Description

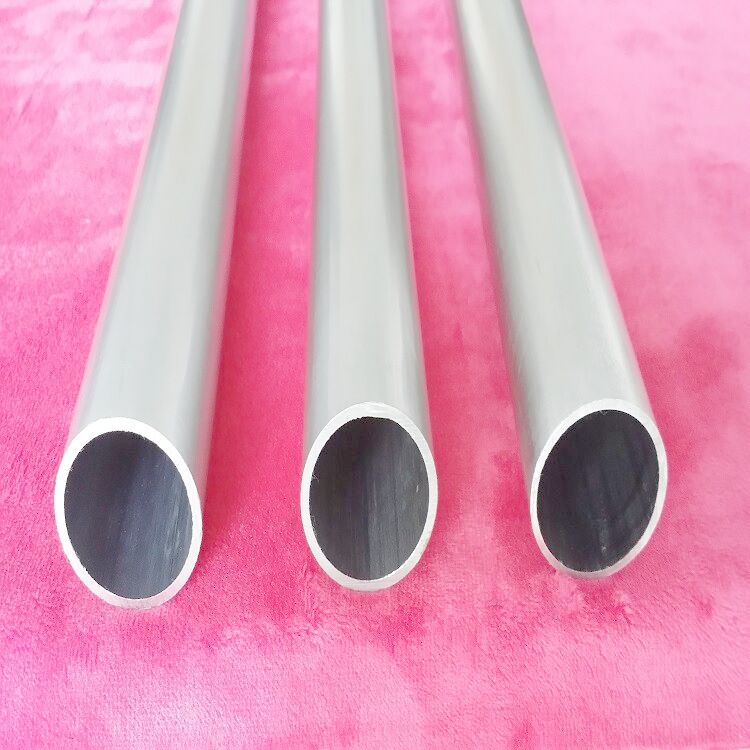

NAS 601 UNS N06601 Nickel Alloy Tubes
Inconel 601 nickel alloy pipe Inconel 601 seamless pipe Inconel 601 pipe
Standard:
ASTM B167
Size Range:
OD: 13.7mm-168.3mm
WT: 1.6mm-8.6mm
Steel Grade: UNS N06025, UNS N06045, UNS N06600, UNS N06601, UNS N06603, UNS N06617, UNS N06674, UNS N06690, UNS N06693, UNS N06696
Chemical Requirements
Element | N06025 | N06045 | N06600 | N06601 | N06603 | N06617 | N06674 | N06690 | N06693 | N06696 |
Ni | remainder | 45.0min | 72.0min | 58.0-63.0 | remainder | 44.5min | remainder | 58.0min | remainder | remainder |
Cr | 24.0-26.0 | 26.0-29.0 | 14.0-17.0 | 21.0-25.0 | 24.0-26.0 | 20.0-24.0 | 21.5-24.5 | 27.0-31.0 | 27.0-31.0 | 28.0-32.0 |
Iron | 8.0-11.0 | 21.0-25.0 | 6.0-10.0 | remainder | 8.0-11.0 | 3.0max | 20.0-27.0 | 7.0-11.0 | 2.5-6.0 | 2.0-6.0 |
Mn | 0.15max | 1.0max | 1.0max | 1.5max | 0.15max | 1.0max | 1.50max | 0.5max | 1.0max | 1.0max |
Mo | ... | ... | ... | ... | ... | 8.0-10.0 | ... | ... | ... | 1.0-3.0 |
Co | ... | ... | ... | ... | ... | 10.0-15.0 | ... | ... | ... | ... |
Al | 1.8-2.4 | ... | ... | 1.0-1.7 | 2.4-3.0 | 0.8-1.5 | ... | ... | 2.5-4.0 | ... |
C | 0.15-0.25 | 0.05-0.12 | 0.15max | 0.10max | 0.20-0.40 | 0.05-0.15 | 0.10max | 0.05max | 0.15max | 0.15max |
Cu | 0.1max | 0.3max | 0.5max | 1.0max | 0.50max | 0.5max | ... | 0.5max | 0.5max | 1.5-3.0 |
B | ... | ... | ... | ... | ... | 0.006max | 0.0005-0.006 | ... | ... | ... |
Si | 0.5max | 2.5-3.0 | 0.5max | 0.5max | 0.50max | 1.0max | 1.0max | 0.5max | 0.5max | 1.0-2.5 |
S | 0.010max | 0.010max | 0.015max | 0.015max | 0.010max | 0.015max | 0.015max | 0.015max | 0.01max | 0.010max |
Ti | 0.1-0.2 | ... | ... | ... | 0.1-0.25 | 0.6max | 0.05-0.20 | ... | 1.0max | 1.0max |
Nb | ... | ... | ... | ... | ... | ... | 0.10-0.35 | ... | 0.5-2.5 | ... |
P | 0.020max | 0.020max | ... | ... | 0.020max | ... | 0.030max | ... | ... | ... |
Zr | 0.01-0.10 | ... | ... | ... | 0.01-0.10 | ... | ... | ... | ... | ... |
Y | 0.05-0.12 | ... | ... | ... | 0.01-0.15 | ... | ... | ... | ... | ... |
Ce | ... | 0.03-0.09 | ... | ... | ... | ... | ... | ... | ... | ... |
N | ... | ... | ... | ... | ... | ... | 0.02max | ... | ... | ... |
W | ... | ... | ... | ... | ... | ... | 6.0-8.0 | ... | ... | ... |
More:
Inconel 601 characteristics:
1. Excellent oxidation resistance at high temperature
2. Good carbonation resistance
3. Good oxidation resistance and sulfur atmosphere
4. It has good mechanical properties at room temperature and high temperature
5. Good stress corrosion cracking resistance. 601 has high creep rupture strength due to the control of carbon content and grain size
601 is recommended for areas above 500 ℃.
The microstructure of Inconel 601 is as follows
601 is a face centered cubic lattice structure.
Corrosion resistance of Inconel 601:
One of the important properties of 601 alloy is its oxidation resistance at temperatures up to 1180 ℃. Even under very harsh conditions, such as heating and cooling
In the process of cycling, 601 can form a dense oxide film and obtain high spalling resistance. 601 has good carbonization resistance. Because of
With high Cr and Al contents, 601 has good oxidation resistance in high temperature and sulfur atmosphere.
Application of Inconel 601:
1. Pallet, basket and fixture for heat treatment plant.
2. Wire strand annealing and radiation tube, high speed gas burner, wire mesh belt in industrial furnace.
3. Isolation tank in ammonia reforming and catalytic support grid in nitric acid manufacturing.
4. Exhaust system components
5. Combustion chamber of solid waste incinerator
6. Pipe support and ash handling components
7. Conponents of waste gas detoxification system
8. Oxygen heater
Similar material:
1.N06601,MonelK500, Monel R-405, Monel 450, Monel S.
2 Incroix Alloy: N06601,N06601H,N06601, Incoloy DS, Incoloy802, Incoloy803, Incoloy804, Incoloy903, Incoloy907, Incoloy909, Incoloy925, Incoloy MA956, Incoloy A-286, Incoloy25-6Mo.
3INCONEL alloy: N06601,N06601,N06601,N06601,N06601, Inconel617, Inconel 622, Inconel 625LCF,Inconel671, Inconel672, Inconel686, Inconel690, Inconel706, Inconel 725, N06601,Monel k500, Inconel751, Inconel754, Inconel758, Inconel783
4 Hastelloy steel : Hastelloy C-276, N06601,Hastelloy C-59, Hastelloy B, Hastelloy B-3, Hastelloy C, Hastelloy C-4, Hastelloy C-22, Hastelloy C-2000, Hastelloy G-30, Hastelloy G-35, Hastelloy N, Hastelloy S, Hastelloy W, Hastelloy X.
5High Temperature alloy: N06601,N06601, GH1015, GH1016, GH1035, GH1040, GH1131, N06601, GH2018, GH2036, GH2038, GH2130, N06601, GH2135, GH2136,GH2302,N06601, N06601, GH4033, GH4037, GH4043, Alloy R41, GH4133, N06601 ,L605(N06601)
6 Special stainless steel :N06601,310S,2520Si2,L ,Carpenter 20Cb3, 309S, 310Si, 316LMod, 347H, 329, S21800, N06601, AL-6XN, 20Mo-6, N06601, 17-7PH, 15-5PH,
7Corrosion resistant alloy :NS111, NS112, NS142, NS143, NS312, NS313, NS315, NS321, NS322, N06601, NS334, NS335, NS336
