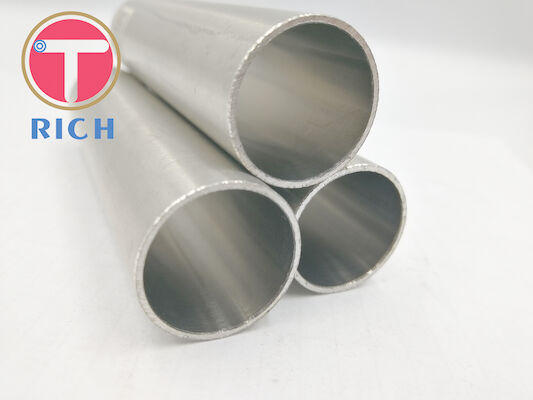

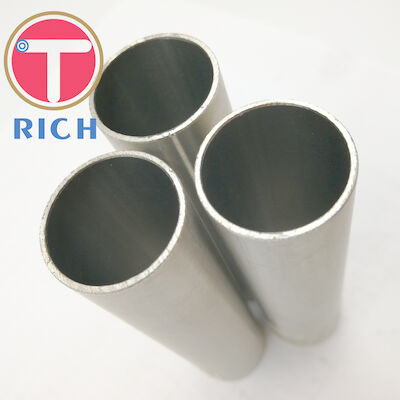

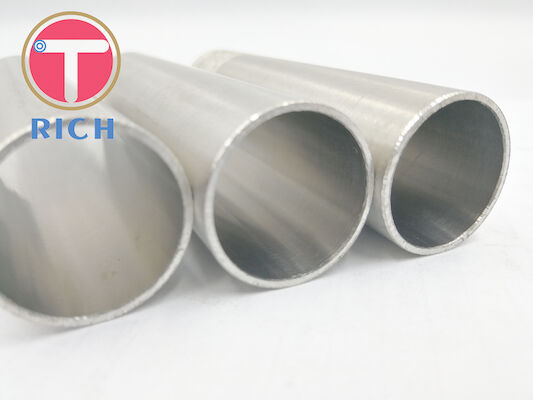

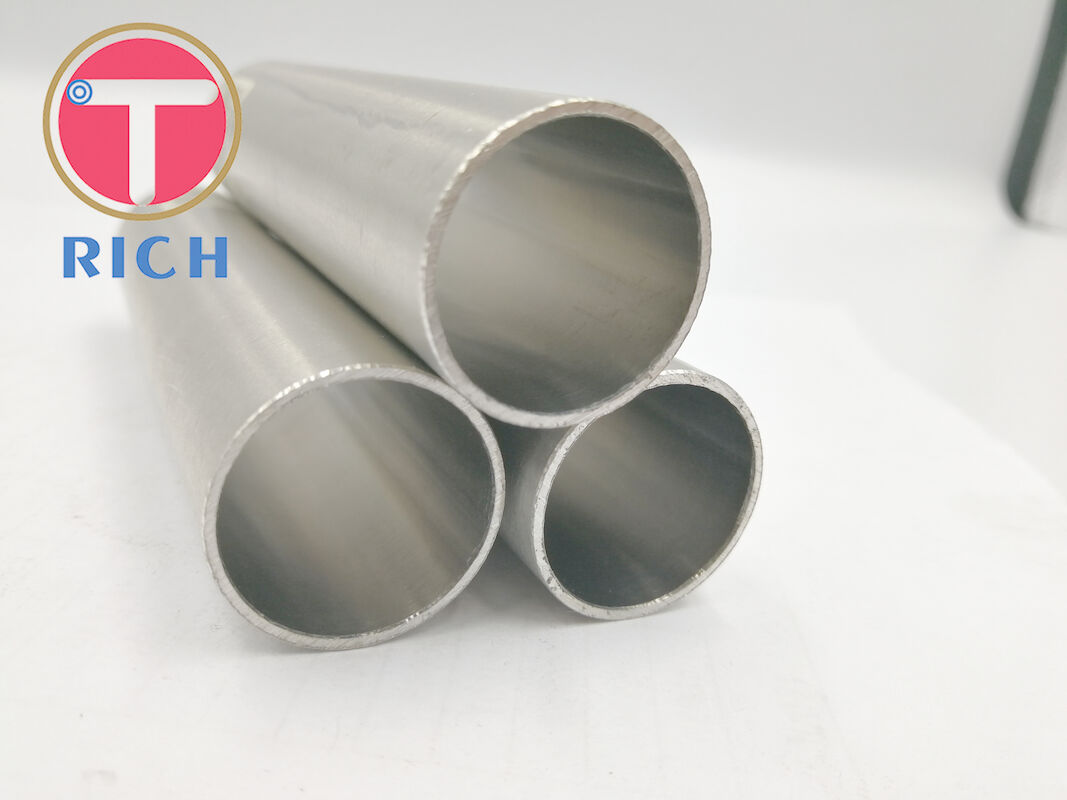

ASTM B163 N02200 Grade Nickel Alloy Tube
Product Details
8.83 G/cm3 Nickel Alloy Tube
,N02200 Grade Nickel Alloy Tube
,ISO 9001 Nickel Alloy Tube
ASTM B163 N02200 NICKEL ALLOY TUBE
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Bar,Pipe/tube,sheet/plate,Forging,Ring,Coil,Flange,Ribbon,Square pipe/bar,product processing |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926;etc | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic: Nitronic 40/50/60;etc | |
| Nimonic: Nimonic 75/80A/90/A263 ;etc | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics | 1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Inspection | ISO,SGS,BV and so on. |
| Packaging | All our products are packed, stored, transported according to the international regulation.Or as customer's requirement provide special packing. |
Different Standard
Monel 400
UNS N04400
DIN W. Nr. 2.4360, 2.4361
Chemical composition:
Ni: 63.0 MIN Cu: 28.0-34.0 Fe: 2.50 MAX C: 0.30 MAX Mn: 2.00 MAX
S: 0.024 MAX Si: 0.50MAX
Physical properties:
Density: 8.80g/cm3 Melting range: 1300-1350℃
Metallographic structure of Monel 400:
The structure of Monel400 alloy is a high - strength single - phase solid solution.
Corrosion resistance of Monel 400:
Monel400 alloy has excellent corrosion resistance in fluorine gas, hydrochloric acid,
sulfuric acid, hydrofluoric acid and their derivatives.At the same time,
it has better corrosion resistance than copper base alloy in seawater.
Acid medium:
Monel400 is resistant to corrosion in less than 85% sulfuric acid.
Monel400 is one of the few important materials that can withstand hydrofluoric acid.
ASTM B163
Referenced ASTM Standard:
B 829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.
B 880 Specification for general requirements for Chemical check analysis limits for Nickel, Nickel alloys and Cobalt alloys.
E 8 Test method for tension testing of metallic materials.
E 18 Test methods for rockwell hardness and rockwell superficial hardness od metallic materials.
E 29 Practice for using significant digits in test data to determine conformance with sprcifications.
E 76 Test methods for chemical analysis of Nickel-Copper alloys.
E 112 Test Methods for determining the average grain size.
E140 Hardness conversion tables for metal.
E 1473 Test methods for chemical analysis of Nickel, Cobalt and high-temperature alloys.
Keywords:
Seamless tube; UNS N02200; UNS N02201; UNS N04400; UNS N06025; UNS N06045; UNS N06600; UNS N06601; UNS N06603; UNS N06686; UNS N06690; UNS N08120; UNS N08800; UNS N08801; UNS N08810; UNS N08811; UNS N08825
-
