JIS G3459 Seamless And Welded Stainless Steel Tube For Pressure Service
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
JIS G3459
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
JIS G3459 Seamless and welded stainless steel tube for pressure service Applications: For pressure service,hign and low temperature service Technique: Cold worked and hot worked Alloy or not: Alloy Secondary or not: Non-Secondary Steel Grade/Steel Material: SUS304TP SUS310TP SUS316TP SUS317TP ...
Product Details
Highlight:
Welded Stainless Steel Tube JIS G3459
,Steel Tube For Pressure Service
Product Name:
JIS G3459 Seamless And Welded Stainless Steel Tube For Pressure Service
Product Keyword:
Stainless Steel Tube
Grade:
SUS304TP SUS310TP SUS316TP SUS317TP SUS347TP Etc
Application:
For Pressure Service,hign And Low Temperature Service
Secondary:
Non-secondary
Section Shape:
Round
Product Description
JIS G3459 Seamless and welded stainless steel tube for pressure service
Applications: For pressure service,hign and low temperature service
Technique: Cold worked and hot worked
Alloy or not: Alloy
Secondary or not: Non-Secondary
Steel Grade/Steel Material: SUS304TP SUS310TP SUS316TP SUS317TP SUS347TP etc
Size range:
| O.D. | 4-305mm |
| W.T. | 1-50mm |
| Length | max 12000mm |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
| CHEMICAL COMPOSITION % max | |||||||||
| steel grade | chemical composition | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | others | |
| SUS304TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS304HTP | 0.04-0.10 | 0.75 | 2.00 | 0.040 | 0.030 | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS304LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00-13.00 | 18.00-20.00 | - | - |
| SUS310TP | 0.150 | 1.50 | 2.00 | 0.040 | 0.030 | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS310STP | 0.080 | 1.50 | 2.00 | 0.045 | 0.030 | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS316TP | 0.080 | 1.000 | 2.00 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316HTP | 0.04-0.10 | 0.750 | 2.00 | 0.030 | 0.030 | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316TiTP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti5*C% min |
| SUS317TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - |
| SUS317LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - |
| SUS347TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00-13.00 | 17.00-19.00 | - | Nb 10*C% min |
| SUS347LTP | 0.04-0.10 | 1.00 | 2.00 | 0.030 | 0.030 | 9.00-13.00 | 17.00-20.00 | - | Nb 8*C%-1.00 |
Mechanical proporties:
| MECHANICAL PROPERTIES min | |||
| Steel grade | Tensile strength Mpa | Yeild point or proof stress Mpa | Elongation % |
| SUS304TP | 520 | 205 | 35 |
| SUS304HTP | 520 | 205 | 35 |
| SUS304LTP | 480 | 175 | 35 |
| SUS310TP | 520 | 205 | 35 |
| SUS310STP | 520 | 205 | 35 |
| SUS316TP | 520 | 205 | 35 |
| SUS316HTP | 520 | 205 | 35 |
| SUS316LTP | 480 | 175 | 35 |
| SUS316TiTP | 520 | 205 | 35 |
| SUS317TP | 520 | 205 | 35 |
| SUS317LTP | 480 | 175 | 35 |
| SUS347TP | 520 | 205 | 35 |
| SUS347HTP | 520 | 205 | 35 |

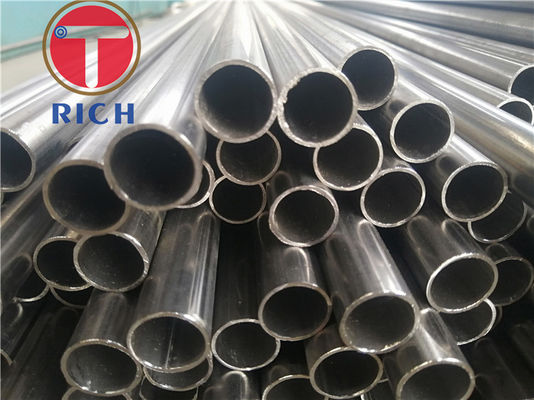

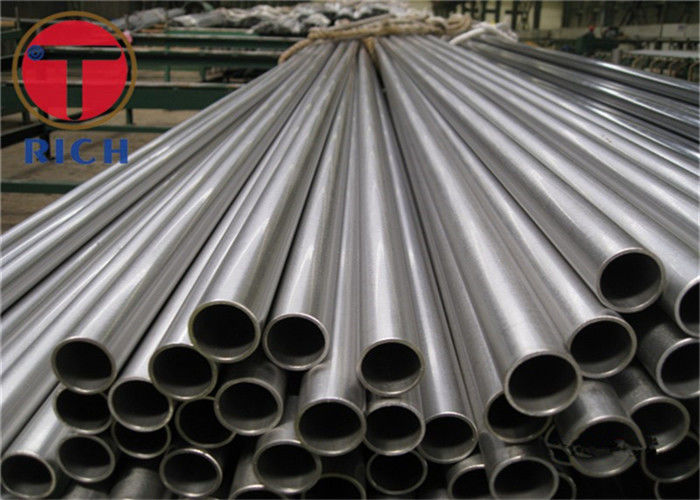

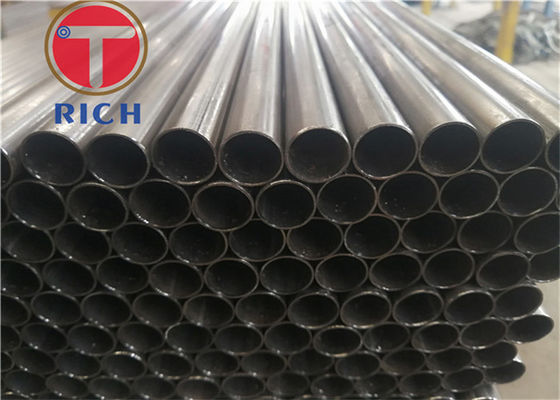

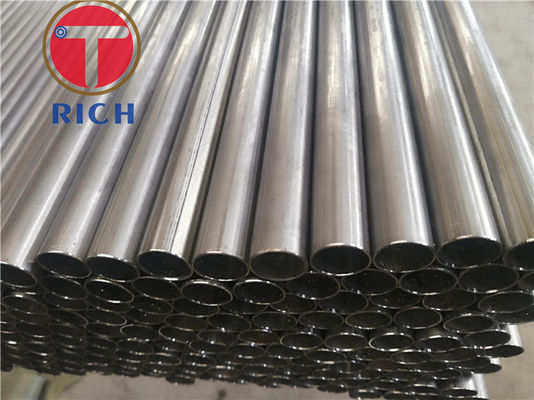

Product Show:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
