ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1Tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Stainless Steel Tubes are packed in bundles in seaworthy packing. | Delivery Time : | 50-60 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASTM A789 |
|
Detail Information |
|||
| Keyword: | Duplex Stainless Steel | Standard: | ASTM A789 |
|---|---|---|---|
| Material: | S32750, S31803, S32760, S32205 | Surface: | Pickling |
| OD: | 6-530 Mm | WT: | 1-30 Mm |
| Length: | Max 15 M | Usage: | Petrochemical, Nuclear Power And Boiler Etc |
Product Description
|
Product Name
|
Seamless Duplex Stainless Steel Pipe for Ship building
|
|
Standard
|
ASTM A789, A312, A790, GB/T13296, GB/T14976
|
|
Size
|
OD: 6-530 mm WT: 1-30 mm Length : max 15m
|
|
Type
|
Seamless and Welded
|
|
Material
|
S32750, S31803, S32760, S32205
|
|
Application
|
Petrochemical, Nuclear power and Boiler etc
|
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Chemical Composition
|
Steel Grade
|
C
|
Mn
|
Si
|
S
|
P
|
Cr
|
Ni
|
Mo Cu
|
N
|
|
S32750(SAF2507)
00Cr25Ni7Mo4N
|
≤0.03
|
≤1.20
|
≤0.80
|
≤0.020
|
≤0.035
|
24.0-26.0
|
6.0-8.0
|
3.0-5.0 ≤0.50
|
0.24-0.32
|
|
S31803/S32205
(SAF2205)
00Cr22Ni5Mo3N
|
≤0.03
|
≤2.00
|
≤1.0
|
≤0.02
|
≤0.030
|
21.0-23.0
|
4.5-6.5
|
2.5-3.5
|
0.08-0.20
|
|
S31500(3RE60)
00Cr18Ni5Mo3Si2
|
≤0.03
|
1.2-2.0
|
1.4-2.0
|
≤0.030
|
≤0.030
|
18.0-19.0
|
4.25-5.25
|
2.5-3.0
|
0.05-0.10
|
Mechaniacl Properties
|
Steel Grade
|
Heat Treating
|
Tensile Strength
Mpa
|
Yeild Strength
Mpa
|
Elongation %
|
Hardness
Brinell Rockwell
|
|
|
S32750(SAF2507)
00Cr25Ni7Mo4N
|
1025-1125℃
water cooling
|
≥800
|
≥550
|
≥15
|
≤310
|
≤32
|
|
S31803/S32205
(SAF2205)
00Cr22Ni5Mo3N
|
1020-1100℃
water cooling
|
≥620
|
≥450
|
≥25
|
≤290
|
≤30.5
|
|
S31500(3RE60)
00Cr18Ni5Mo3Si2
|
980-1040℃
water cooling
|
≥630
|
≥440
|
≥30
|
≤290
|
≤30.5
|

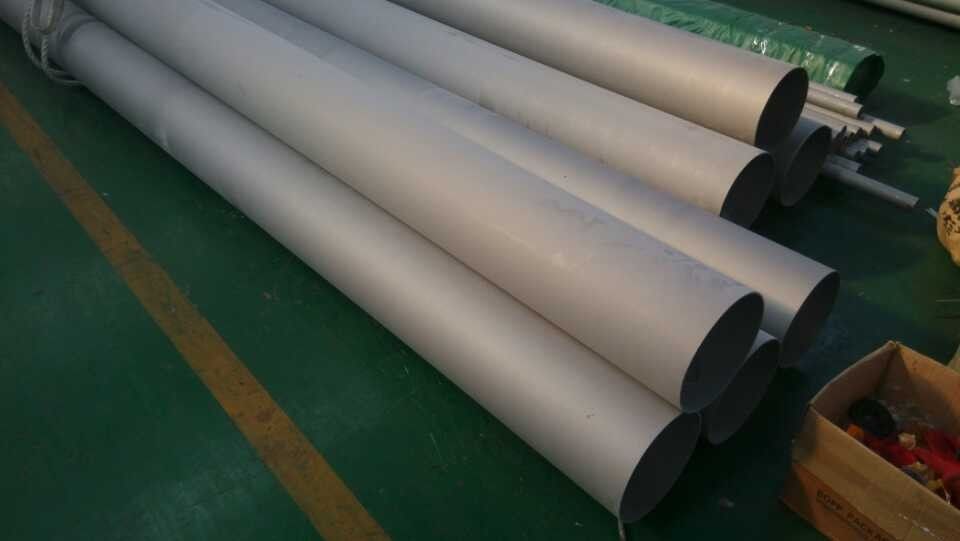

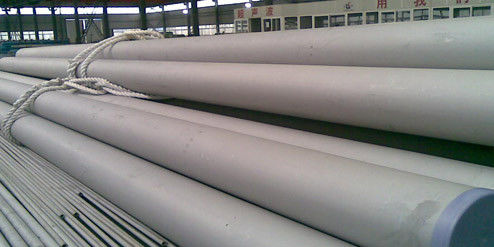

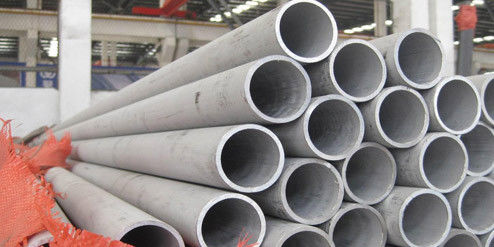

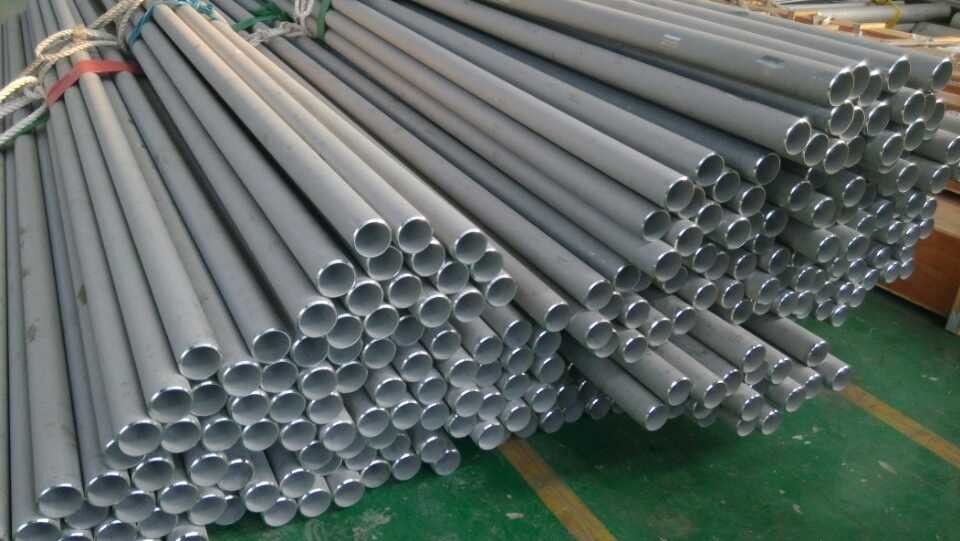

Products Show
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
