5800mm Length SAE J525 1.75 Hrew DOM Steel Tube
Product Details
SAE J525 DOM Steel Tube
,5800mm Length DOM Steel Tube
,SAE J525 1.75 hrew tubing
1.75 hrew dom steel tubing near me
Size range:
O.D.:30-350mm
W.T.:1-15mm
L: 12000mm or Cut to Short Pieces as specified length
Delivery Condition:
BK, BKW, BKS, GBK, NBK
CDW DOM Steel Tubing Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
ERW Steel Tube and Cold Drawing or Cold Rolling Production
Applications: for Bending and Flaring, Auto Parts
| Table 1- TUBING OUTSIDE DIAMATER TOLERANCE | |||||||
| Nominal Tubing OD mm | Tolerance OD ±mm | Tolerance ID ±mm | |||||
| Up to 9.50 | 0.05 | 0.05 | |||||
| Over 9.50 to 15.88 inclusive | 0.06 | 0.06 | |||||
| Over 15.88 to 50.80 inclusive | 0.08 | 0.08 | |||||
| Over 50.8 to 63.50 inclusive | 0.10 | 0.10 | |||||
| Over 63.50 to 76.20 inclusive | 0.13 | 0.13 | |||||
| Over 76.20 to 100.00 inclusive | 0.15 | 0.15 | |||||
| WT tolerance shall be not more than 10% | |||||||
| Table 2- TUBING WALL THICKNESS TOLERANCE | |||||||
| Nominal Wall Thickness | Nominal OD Through 22mm ±mm | Nominal OD 22-48mm ±mm | Nominal OD 48-100mm ±mm | ||||
| 0.89 | 0.05/0.05 | 0.05/0.05 | 0.05/0.05 | ||||
| 1.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.25 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.50 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.65 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.11 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.410 | 0.05/0.05 | 0.05/0.08 | 0.08/0.08 | ||||
| 2.500 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 2.770 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.000 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.050 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.40 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 3.75 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 4.00 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.19 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.57 | - | 0.10/0.10 | 0.08/0.13 | ||||
| 5.00 | - | 0.10/0.13 | 0.10/0.13 | ||||
1.75 hrew dom steel tubing near me
| Table 2- CHEMICAL REQUIREMENTS | |||||||
| Element | % | ||||||
| Carbon | 0.06-0.18 | ||||||
| Manganese | 0.30 to 0.60 | ||||||
| Phosphpris | 0.040 max | ||||||
| Sulfur | 0.050 max | ||||||
| Table 3- MECHANICAL PROPERTIES | |||||||
| Properties | Value | ||||||
| Yield Strength,min | 170 Mpa | ||||||
| Ultimate Strenth,min | 310 Mpa | ||||||
| Elongation in 50mm, min | 35% | ||||||
| Hardness ( Rockwell B),max | 65.00 | ||||||

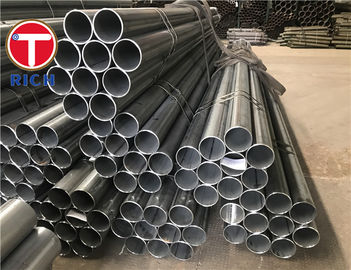

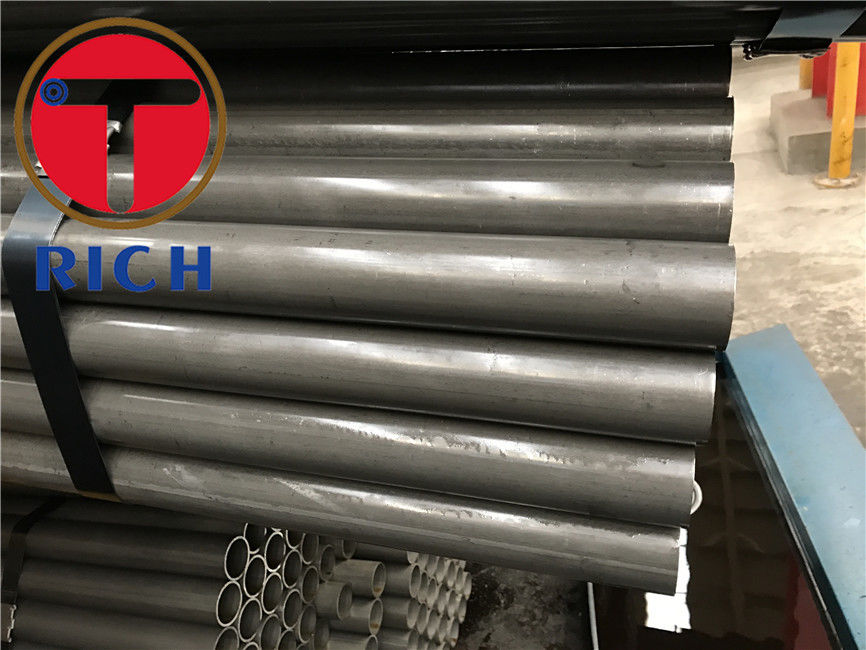

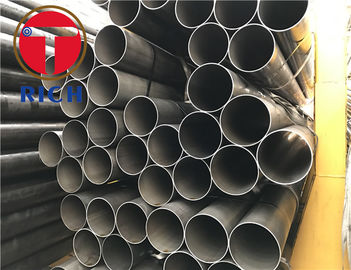

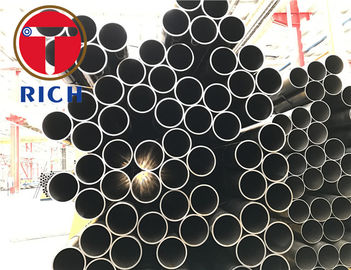

Product Pictures
Company Introduction
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
-
