Torich Incoloy 800 Incoloy 800 Tubing Welded Seamless Nickel Alloy Steel Rod,Tube and Pipe EB3552
Product Details
Seamless Nickel Alloy Steel Rod
,EB3552 Nickel Alloy Steel Rod
,Welded Nickel Alloy Steel Rod
Torich Incoloy 800 Incoloy 800 Tubing Welded Seamless Nickel Alloy Steel Rod,Tube and Pipe EB3552
| Product Name | Torich Incoloy 800 Incoloy 800 Tubing Welded Seamless Nickel Alloy Steel Rod,Tube and Pipe EB3552 |
| Technique | Hot Rolled or Forged |
| Length | Customized |
| Diameter | 5-300mm or customized |
| Form | Round/Square/Hexagonal Bar |
| Delivery | 7-15 days after deposit |
Incoloy800 Typical values (Weight %):
| Cr | Ni | C | Si | Mn | P | S | Fe |
| 19.0-23.0 | 30.0-35.0 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.030 | ≤0.015 | Margin |
Incoloy800 Mechanical Properties:
| Temperature℃ | σ/ MPa | σ0.2 / MPa | δ5 /% |
| 100 | 425 | 140 | 160 |
| 300 | 390 | 95 | 115 |
| 500 | 360 | 80 | 110 |
| 600 | 300 | 75 | 95 |
Incoloy800 Physical Properties:
| Melting Temperature Range | 1350-1400℃ |
| Specific Heat | 455J/(kg.℃) |
| Thickness | 8.0g/lcm³ |
| Magnetism | / |
Incoloy 800H Close to the Brand:
| GB/T | UNS | Trademark | W.Nr |
| NS112 | N08810 | Incoloy800H | 1.4876 |
Incoloy800H Typical Values (Weight %):
| Alloy | % | Ni | Ge | Fe | C | Mn | Si | Cu | S | Al | Ti | P |
| Incoloy800H | Min | 30 | 19 | Margin | 0.05 | 0.15 | 0.15 | |||||
| Max | 35 | 23 | 0.1 | 1.5 | 1 | 0.75 | 0.015 | 0.6 | 0.6 | 0.03 |
Incoloy800H Physical Properties:
| Thickness | 8.0 g/cm3 |
| Melting Point | 1350-1400 ℃ |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

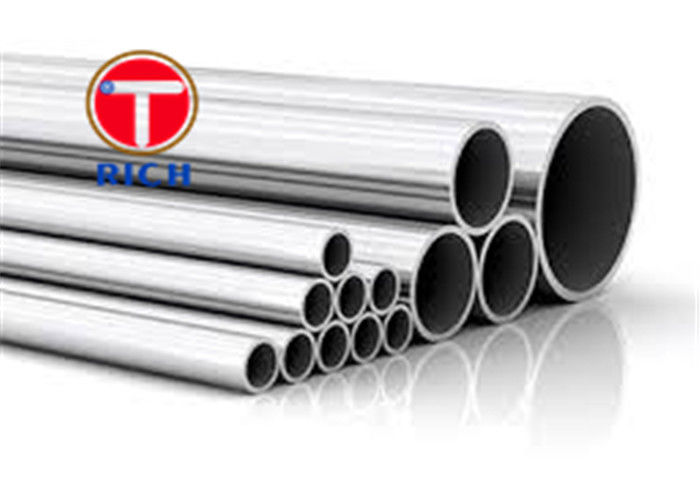

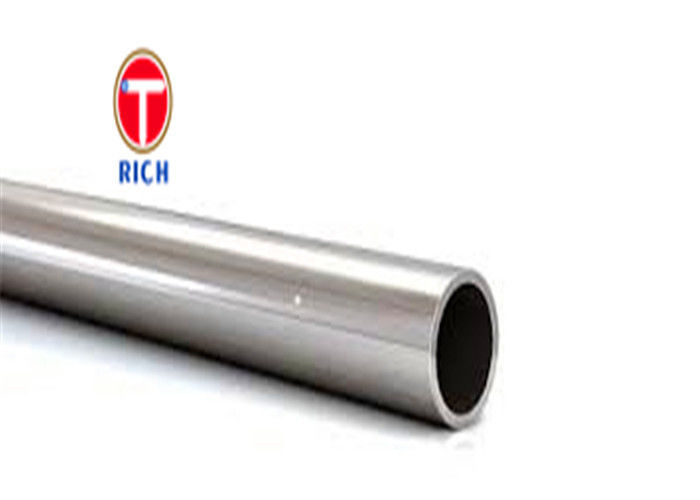

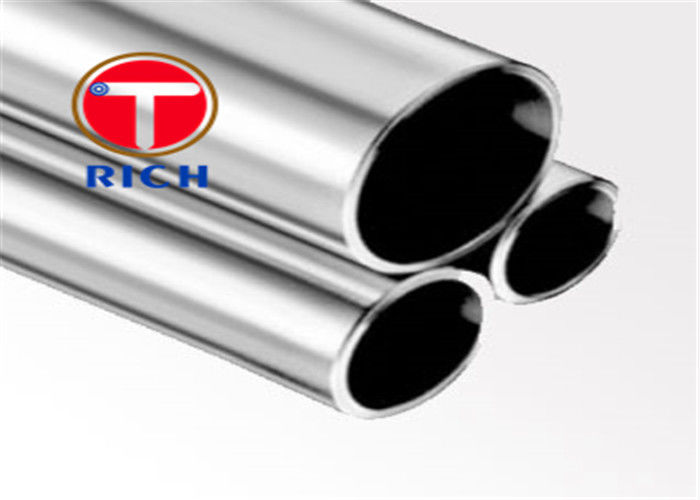

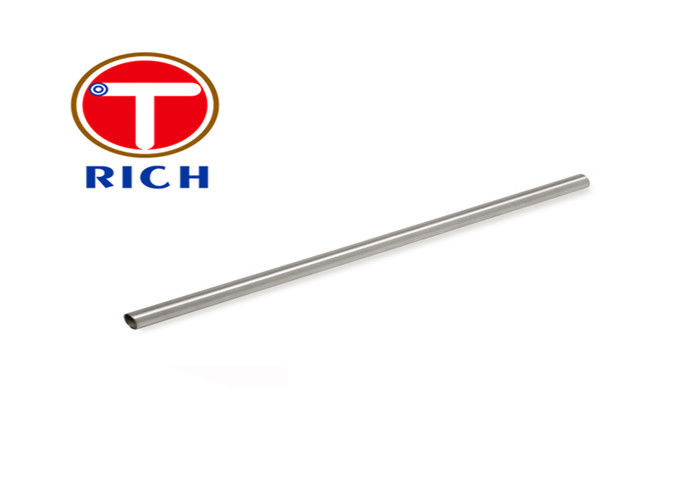

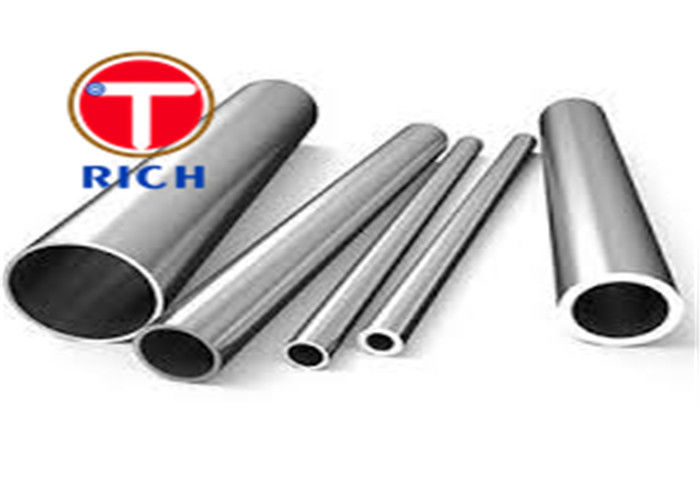

Product show:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:Do you have agent or distributor in our country?
A:We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
Q:How is your production capability?
A:1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
Q:How to get the sample?
A:1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
-
