Nickel Inconel 601
Product Details
Nickel Inconel 601
Inconel 601 Tubes
Inconel 601, an alloy material. Excellent oxidation resistance at high temperature, good resistance to carbonization, good oxidation resistance, sulfur-containing atmosphere, good mechanical properties at room temperature and high temperature, good stress corrosion resistance, cracking performance due to control Carbon content and grain size, 601 has a high creep rupture strength, so it is recommended to use 601 in the field above 500 °C.
Inconel 601 Features:
1. Excellent oxidation resistance at high temperatures
2. Very good anti-carbonization
3. Good oxidation resistance sulfur-containing atmosphere
4. Good mechanical properties at room temperature and high temperature
5. Good resistance to stress corrosion cracking Due to the control of carbon content and grain size, 601 has a high creep rupture strength, so 601 is recommended in the field above 500 °C.
Chemical composition:
| Grade | Chemical Component % | ||||||||
| C | Si | Mn | S | Cr | Ni | Fe | Cu | Al | |
| Inconel 601 | Max 0.1 | Max 0.5 | Max 1.0 | Max 0.015 | 21.0-25.0 | 58.0-63.0 | balance | Max 1.0 | 1.0-1.7 |
Products standard:
| Products | Bar,rod,wire | Sheet,Plate,strip | Welded tube/pipe | Seamless tube/pipe | Fitting | Forging |
| Standard | ASTM B166 AMS 5665 Din 17752 | ASTM B168 AMS 5540 Din 17750 | ASTM B516/B517 ASTM B775/B751 | ASTM B167 | ASTM B366 | ASTM B56 Din 17754 |
Application:
1. Power generation
2. Radiant tubes
3. Chemical processing such as manufacture of nitric acid.
4. Exhaust system components
5. Combustion chamber of solid waste incinerator
6. Pipe support and soot treatment components
7. Exhaust gas detoxification system components
8. Oxygen reheater

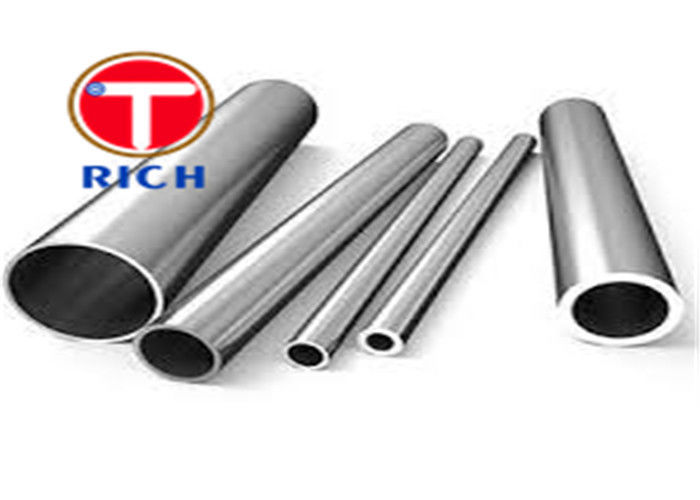

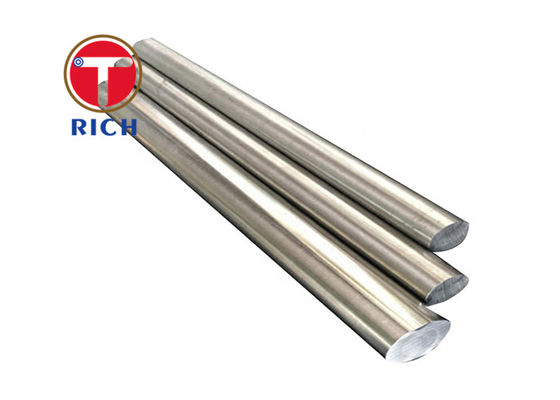

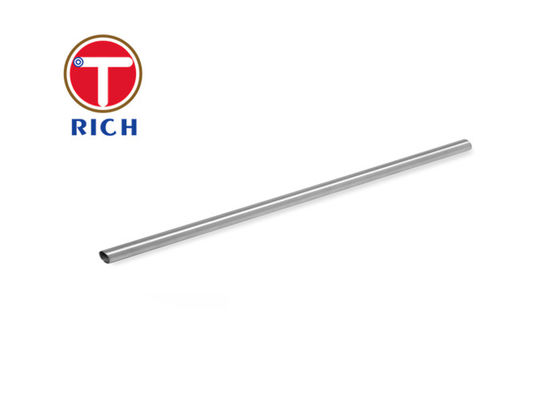

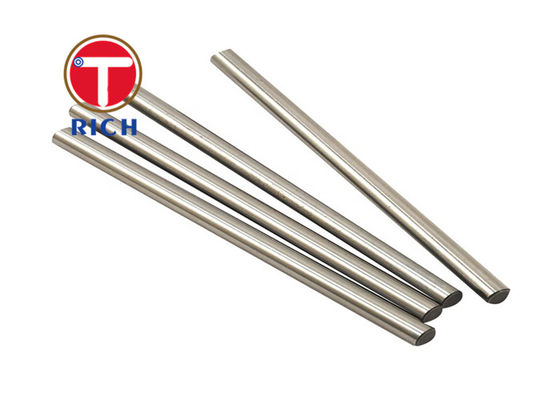

Product Pictures:
Company Introduction:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
