UNS N06600 nickel alloy inconel 600 pipe for chemical processing
Product Details
Chemical Processing Inconel 600 Pipe
UNS N06600 nickel alloy inconel 600 pipe for chemical processing
Applications: For industry heating elements,home appliances
Technique: Cold Drawn
Alloy or not: Alloy
Secondary or not: Non-Secondary
Steel Grade/Steel Material: inconel 600
Size range:
| O.D. | 1-600mm |
| W.T. | 1.0-18mm |
| Length | max 12000mm |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
| Item | Chemical Composition (%) | ||||||||
| Inconel 600 | C | Mn | Si | S | Cr | Ni | Fe | Cu | |
| ≤0.15 | ≤1.0 | ≤0.5 | ≤0.015 | 14.0~17.0 | ≥72.0 | 6.0~10.0 | ≤0.5 | ||
| Standard | |||||||||
| Sheet/Plate | Round bar/Wire | Pipe | Tube | ||||||
| ASME SB-168 AMS 5540 | ASME SB-166 AMS 5665 | ASME SB-163 ASME SB-167 ASME SB-751 ASME SB-775 AMS 5580 | ASME SB-516 ASME SB-517 ASME SB-751 ASME SB-775 | ||||||
Mechanical Proporties:
| Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
| 585 | 240 | 30 |

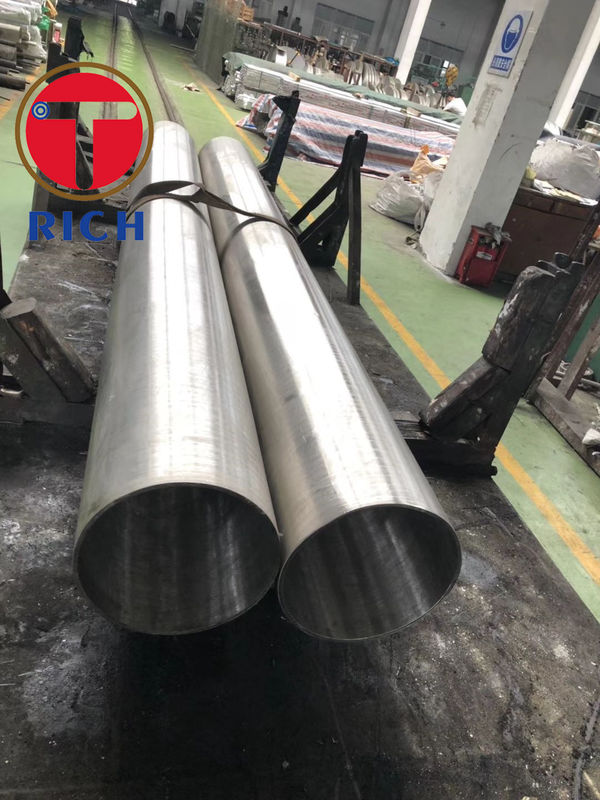

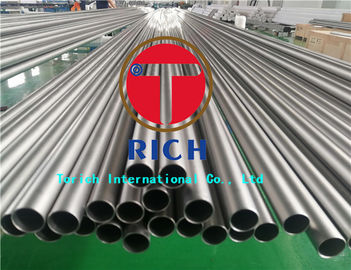

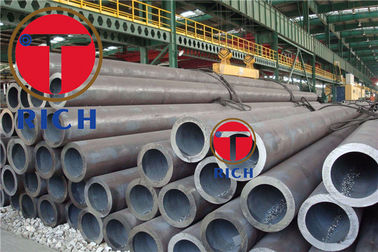

Product Show:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
