Inconel 625 Heat Exchanger/ Condenser Tubes
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Model Number:
Inconel 625
Trading Properties
Minimum Order Quantity:
1 Tons
Price:
USD 800-1200/Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Tons/Year
Product Summary
Inconel 625 Heat Exchanger / Condenser Tubes Inconel 625 Heat Exchanger / Condenser Tubes is durable products that are easily installed and maintained. These heat exchangers are well recognized for their superior durability and toughness. These possess superior fabricability and weldability. The ...
Product Details
Highlight:
Inconel 625 Heat Exchanger Tubes
,Inconel 625 Condenser Tubes
,Inconel 625 Heat Exchanger
Standards:
Inconel 625
Finish:
Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
O.D.:
5-420mm
W.T.:
0.5-50mm
Length:
Max 12000mm
Brand:
Torich
Product Description
Inconel 625 Heat Exchanger / Condenser Tubes
Inconel 625 Heat Exchanger / Condenser Tubes is durable products that are easily installed and maintained. These heat exchangers are well recognized for their superior durability and toughness. These possess superior fabricability and weldability. The heat exchangers/ condensor are high-performance Inconel 625 alloy product combined with chromium-nickel and molybdenum content. This grade of heat exchangers/condensor exhibits excellent resistance to the crevice and pitting corrosion. Furthermore, it also offers superior resistance to various corrosive media and oxidizing agents. The product offers outstanding mechanical properties at both at high and low-temperature conditions.
The Inconel 625 Electropolish Tube has the ability to retains its excellent ductility properties as well as toughness properties even at low working temperature. The two crucial properties of the alloy, which makes them stand out according to inconel 625 tube suppliers are its resistance to oxidation as well as its resistance to scaling at very high temperatures. These two properties of the 625 Inconel Heat exchanger Tube makes the alloy superior in comparison to other alloys, even those metals which have been produced for high temperatures and varying heating as well as cooling conditions.
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Chemical Composition
| Element | Alloy 625 |
| C | 0.10max |
| Mn | 0.50 max |
| Si | 0.50 max |
| S | 0.015max |
| Cu | - |
| Fe | 5.0 max |
| Ni | 58.0 min |
| Cr | 20.0 – 23.0 |
Physical Properties
| Element | Incoloy Alloy 625 |
| Density | 8.4 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |
Application field:Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube

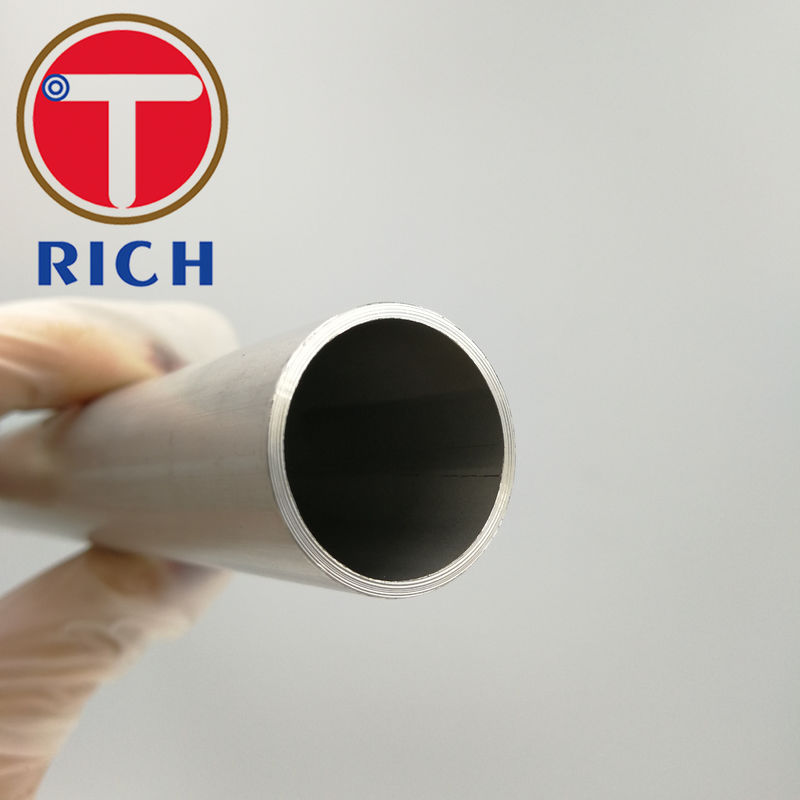

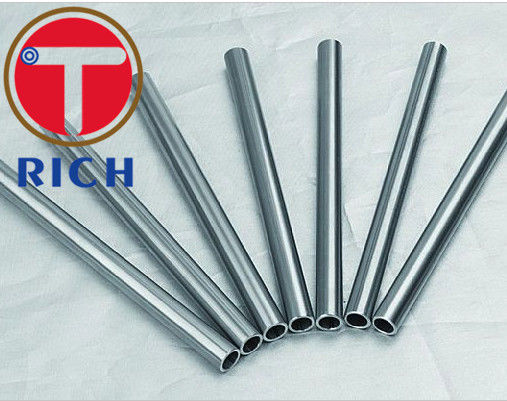

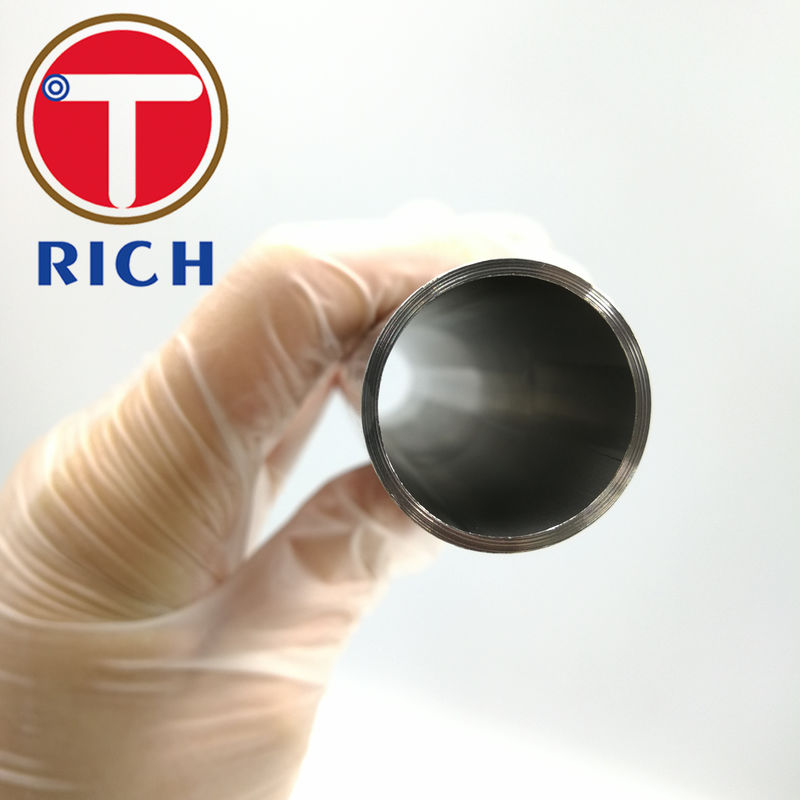

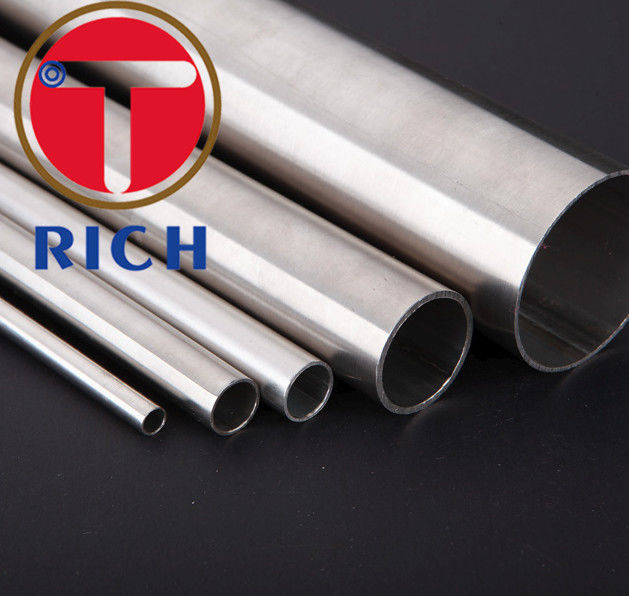

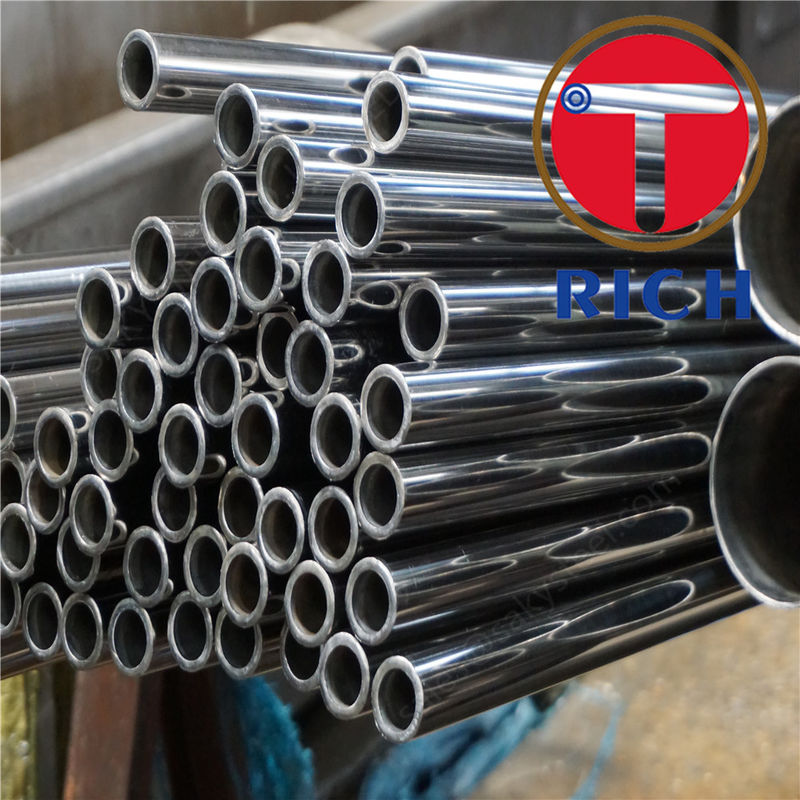

Product Pictures
Company Introduction:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
