Nickel Inconel 600
Product Details
Nickel Inconel 600
Nickel Inconel 600
Inconel 600 is a nickel-chromium alloy known for its oxidation resistance at high temperatures and good resistance in carburizing and chloride containing environments. It is normally used for applications which require resistance to corrosion and heat. It also has high strength and good workability. This material is extensively used in the chemical industry due to its strength and corrosion resistance. This grade is commonly found in nuclear reactors, steam generators and chemical manufacturing components.
Chemical Properties
| Element | Percent |
| Nickel (plus Cobalt) (Min) | 72 |
| Chromium | 14-17 |
| Iron | 6-10 |
| Carbon (Max) | .15 |
| Manganese (Max) | 1 |
| Sulfur (Max) | .015 |
| Silicon (Max) | .5 |
| Copper (Max) | .5 |
Physical Properties (Annealed)
| Property | Value |
| Tensile Strength | 80.0 ksi |
| Yield Strength at 0.2% Offset | 35.0 ksi |
| Elongation in 4D | 30% |
Characteristic :
1. Good corrosion resistance property for the reduction, oxidation, Nitric and other media. 2.Good stress corrosion cracking resistance property in both room temperature and high temperature.
3. Good corrosion resistance of the dry chlorine and chlorine hydride.
4. Good mechanical property when below zero, room temperature and high temperature.
5. Good anti-creep rupture strength, with the recommendation of 700℃ or above working environment.
Application field:
1. Erosion thermocouple sheath of the atmosphere
2. Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation.
3. Oxide shaft chloride converted to six fluoride: hydrogen fluoride anti-corrosion.
4. Corrosive alkali metal produce and usage filed, especially the sulfide use environment.
5. Use Chlorine produce titanium dioxide
6. Organic or inorganic chlorine produce: corrosion resistance to chlorine and fluoride.
7. Nuclear reactor
8. Heat treatment furnace flask and components, especially in the carbonization and nitride atmosphere.

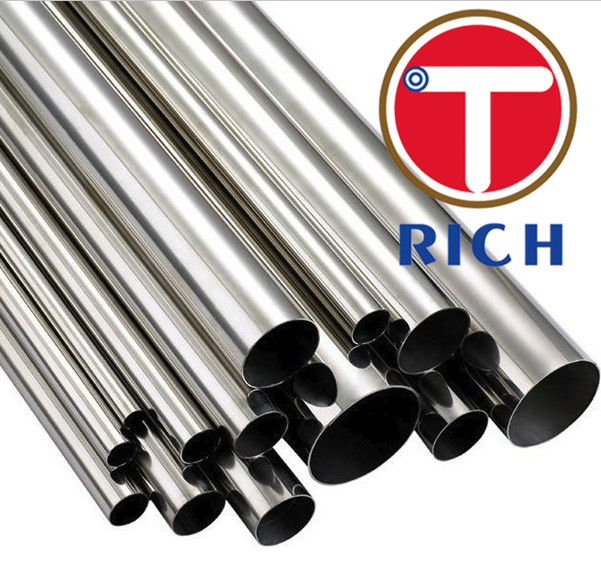

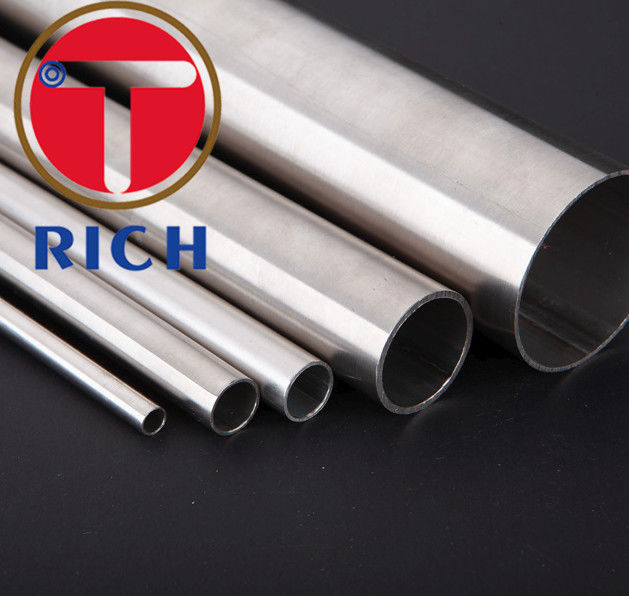

Product Pictures:
Company Introduction:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
