ASTM B163 Nickel 200 Seamless Tube Nickel Alloy Tube For Seawater Heat Exchanger
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 Tons | Price : | USD 800-1200/Ton |
|---|---|---|---|
| Packaging Details : | In bundles or in wooden boxes packaging.as per clients' options. | Delivery Time : | 30-45 days after order confirmed |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Tons/Year |
| Place of Origin: | ZheJiang,CHINA | Model Number: | Inconel 738 |
|---|
|
Detail Information |
|||
| Brand Name: | Torich | Product Name: | Inconel 738 Hot Rolled Alloy Steel Round Bar |
|---|---|---|---|
| Grade: | Inconel 738 | Standard: | ASTM ASME JIS DIN GB |
| Surface: | Bright/Black | Technique: | Cold Drawn /Hot Rolled Forged |
| Shape: | Round | Certificate: | SGS/ISO/BV |
| Type: | Nickel Bar | Application: | Industrial,construction,etc |
Product Description
Inconel 738 Hot Rolled Alloy Steel Round Bar
Inconel 738 offers a combination of outstanding high-heat creep-rupture strength and corrosion resistance better than many high-strength superalloys with lower chromium content. Inconel 738 is a nickel-based alloy, vacuum-cast and precipitation-hardened, offering exceptional mechanical properties to 1800°F (982°C). IN-738 holds up to the hot corrosive environments found in the turbine industry.
| Appearance | Metallic powder or solid in various forms |
|---|---|
| Melting Point | 1230-1315 °C |
| Boiling Point | N/A |
| Density | 8.11 g/cm3 |
| Solubility in H2O | N/A |
| Specific Heat | 0.10 Btu/lb/° F (70 ° F) |
| Tensile Strength | 159000 psi (70 °F) |
| Thermal Conductivity | 82 Btu/ft2/in/hr/°F (400 °F) |
| Thermal Expansion | 6.45 x 10-6 (70-200 °F) |
Chemical Composition Of Inconel 738
| Chemical Element | % Present |
| Carbon (C) | 0.15-0.20 |
| Manganese (Mn) | 0.20 max |
| Silicon (Si) | 0.30 max |
| Nickel (Ni) | Balance |
| Sulfur (S) | 0.015 max |
| Iron (Fe) | 0.50 max |
| Chromium (Cr) | 15.70-16.30 |
| Aluminium (Al) | 3.20-3.70 |
| Molybdenum (Mo) | 1.50-2.00 |
| Boron (B) | 0.005-0.015 |
| Titanium (Ti) | 3.20-3.70 |
| Cobalt (Co) | 8.00-9.00 |
| Columbium (Cb) | 0.60-1.10 |
| Tantalum (Ta) | 1.50-2.00 |
| Tungsten (W) | 2.40-2.80 |
| Zirconium (Zr) | 0.05-0.15 |

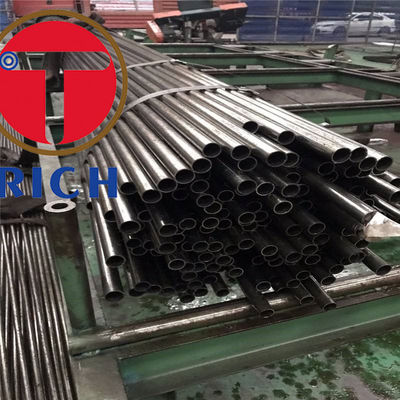

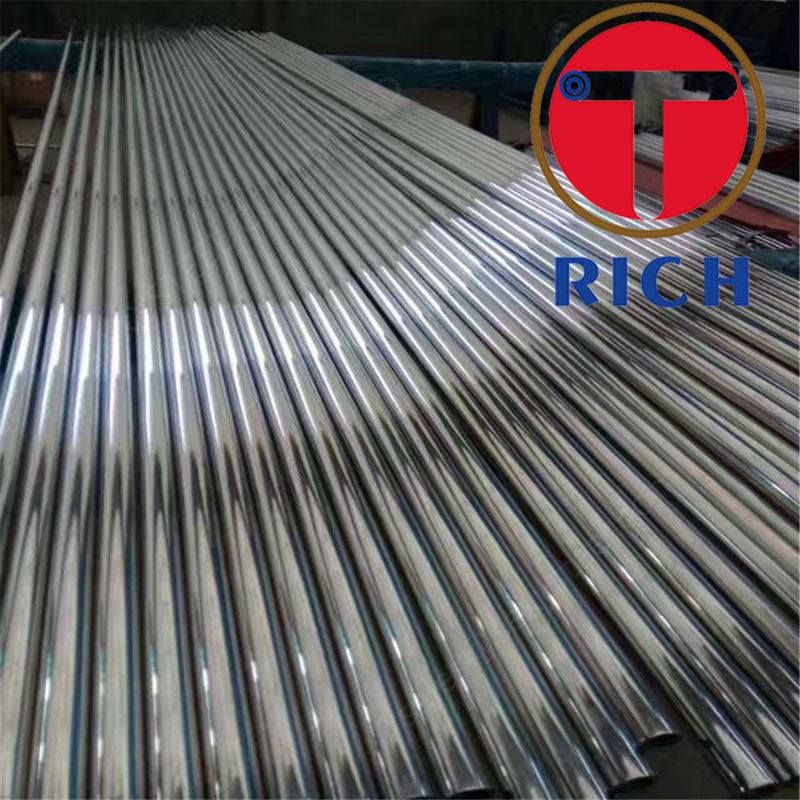

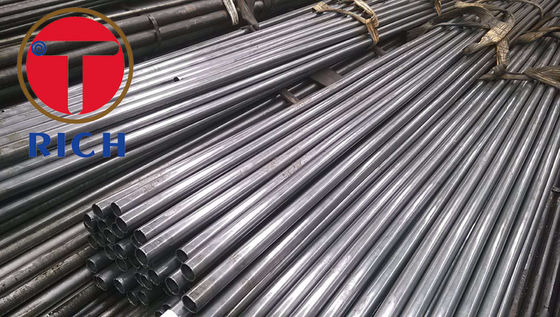

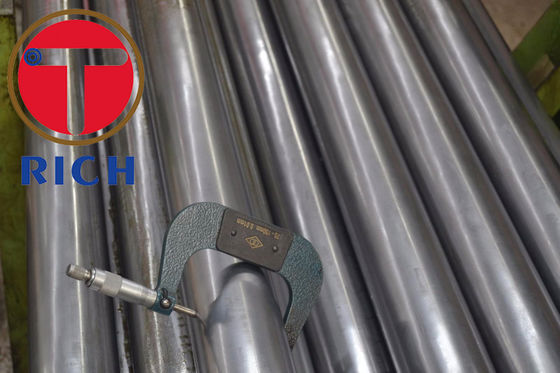

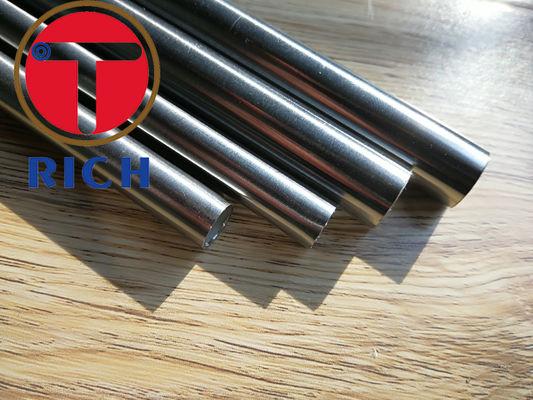

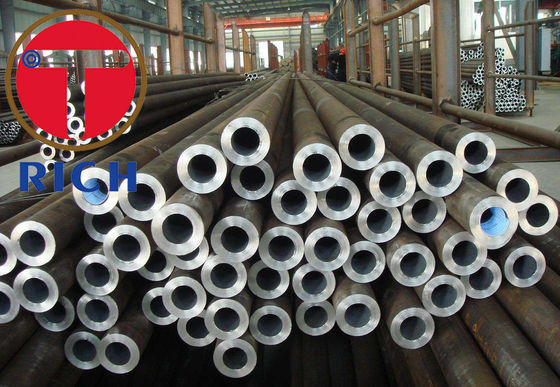

Product Pictures
Company Introduction
FAQ:
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
