72% Ni 20inch Alloy 625 600 Inconel Tube

Minimum Order Quantity : 100 Kgs Price : Negotiable
Packaging Details : Waterproof bag or wooden case Delivery Time : 3-4 Weeks
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 255 Tons Per Month
Place of Origin: ZHEJIANG Brand Name: TORICH
Certification: ISO 9001

Detail Information

Model Number: Inconel 600 625 Resistance (μΩ.m): 1.15
Ni (Min): 72% Ultimate Strength (≥ MPa): 650
High Light:

72% Ni inconel 625 pipe

,

72% Ni inconel 600 pipe

,

20inch inconel 625 pipe

Product Description

Inconel Alloy 625 600 Pipe 20 inch



Inconel 600 with high nickel content, is virtually immune to chloride-induced stress corrosion cracking.

The alloy has superb corrosion resistance to caustic environments.

Inconel Alloy 600 also demonstrates resistance to dry chlorine up to 538°C.

They are available in a wide range of formats including wire, plate, sheet, strip,pipe, fittings, bar, flanges, and so on.



Inconel Alloy 600

Inconel Alloy 600 has good resistance to corrosion and high temperature, and has high strength and good fabric-ability. It resists chloride-ion-incurred stress corrosion cracking, sulfur compounds and oxidizing conditions at high temperatures. The alloy demonstrates good performance in high temperature nitriding environments.


Chemical component



%
Ni
Cr
Fe
C
Mn
Si
S
Cu
min
72.0
14.0
6.0
___
___
___
___
__
max
___
17.0
10.0
0.15
1.00
0.50
0.015
0.50



Other Inconel Grade

Inconel 600 (UNS N06600, DIN W. Nr. 2.4816)
Inconel 601 (UNS N06601, DIN W. Nr. 2.4851)
Inconel 617 (UNS N06617, DIN W. Nr. 2.4663A)
Inconel 625 (UNS N06625, DIN W. Nr. 2.4856)
Inconel 718 (UNS N07718, DIN W. Nr. 2.4668)
Inconel X-750(UNS N07718, DIN W. Nr. 2.4668)



Form
Standard ASTM
Rod, bar and wire
B 166
Plate, sheet and strip
B 168, B 906
Seamless pipe and tube
B 167, B 829
Welded pipe
B 517, B 775
Welded tube
B 516, B 751
Welding fitting
B 366
Billet and bar for reforging
B 472
Forging
B 564


Applications: Chemical process industry, heat treating fixtures, air-frame components and nuclear reactors.
Density :8.47 g/cm3
Melting range :1354-1413℃

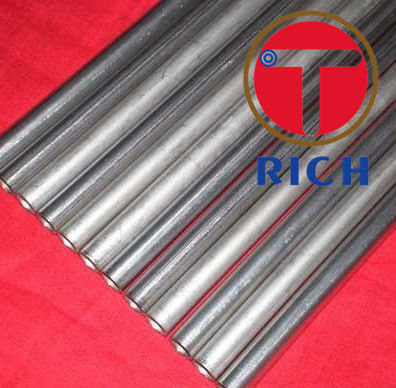

72% Ni  20inch Alloy 625 600 Inconel Tube 0

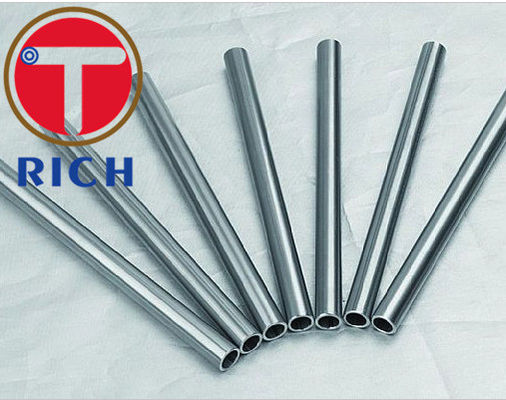

72% Ni  20inch Alloy 625 600 Inconel Tube 1

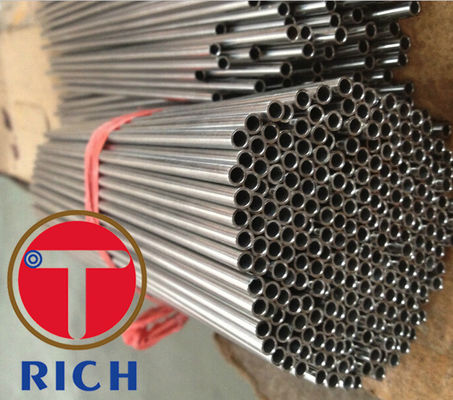

72% Ni  20inch Alloy 625 600 Inconel Tube 2



ASTM B167 Standard Specification for Nickel-Chromium-Iron Alloys (UNS N06600,N06601,N06603,N06690,

N06693,N06025,N06045,and N06696),Nickel-Chromium-Cobalt-Molybdenum Alloy(UNS N06617), and

Nickel-Iron-Chromium-Tungsten Alloy(UNS N06674) Seamless Pipe and Tube



Referenced ASTM Standard:
B829 Specification for general requirements for Nickel and Nickel alloy seamless pipe and tube
B880 Specification for general requirements for Chemical check analysis limits for Nickel, Nickel alloys and Cobalt alloys.
E8 Test method for tension testing of metallic materials.
E29 Practice for using significant digits in test data to determine conformance with sprcifications.
E38 Methods for Chemical Analysis of Nickel-Chromium and Nickel-Chromium-Iron Alloy.
E112 Test Methods for determining the average grain size.
E527 Practice for numbering metals and alloys in the unified numbering system (UNS)
E1473 Test methods for chemical analysis of Nickel, Cobalt and high-temperature alloys.

Keywords: seamless pipe; seamless tube; UNS N06025; UNS N06045; UNS N06600; UNS N06601; UNS N06603;

UNS N06617; UNS N06674; UNS N06690; UNS N06693; UNS N06696
