ASTM B167 Inconel 600 Capillary Tube

Minimum Order Quantity : 100 Kgs Price : USD 23 Per Kg
Packaging Details : Waterproof bag or wooden case Delivery Time : 3-4 Weeks
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 255 Tons Per Month
Place of Origin: ZHEJIANG Brand Name: TORICH
Certification: ISO 9001 Model Number: ASTM B167

Detail Information

Resistance (μΩ.m): 1.15 Ni (Min): 72%
Ultimate Strength (≥ MPa): 650 Model Number: Inconel 600

Product Description

ASTM B167 Inconel 600 Capillary Tube



Inconel 600 with high nickel content, is virtually immune to chloride-induced stress corrosion cracking.

The alloy has superb corrosion resistance to caustic environments.

Inconel Alloy 600 also demonstrates resistance to dry chlorine up to 538°C.

They are available in a wide range of formats including wire, plate, sheet, strip,pipe, fittings, bar, flanges, and so on.



Chemical component



%
Ni
Cr
Fe
C
Mn
Si
S
Cu
min
72.0
14.0
6.0
___
___
___
___
__
max
___
17.0
10.0
0.15
1.00
0.50
0.015
0.50





Form
Standard ASTM
Rod, bar and wire
B 166
Plate, sheet and strip
B 168, B 906
Seamless pipe and tube
B 167, B 829
Welded pipe
B 517, B 775
Welded tube
B 516, B 751
Welding fitting
B 366
Billet and bar for reforging
B 472
Forging
B 564





Other Inconel Grade

Inconel 600 (UNS N06600, DIN W. Nr. 2.4816)
Inconel 601 (UNS N06601, DIN W. Nr. 2.4851)
Inconel 617 (UNS N06617, DIN W. Nr. 2.4663A)
Inconel 625 (UNS N06625, DIN W. Nr. 2.4856)
Inconel 718 (UNS N07718, DIN W. Nr. 2.4668)
Inconel X-750(UNS N07718, DIN W. Nr. 2.4668)



Inconel Alloy 600

Inconel Alloy 600 has good resistance to corrosion and high temperature, and has high strength and good fabric-ability. It resists chloride-ion-incurred stress corrosion cracking, sulfur compounds and oxidizing conditions at high temperatures. The alloy demonstrates good performance in high temperature nitriding environments.


Applications: Chemical process industry, heat treating fixtures, air-frame components and nuclear reactors.
Density :8.47 g/cm3
Melting range :1354-1413℃

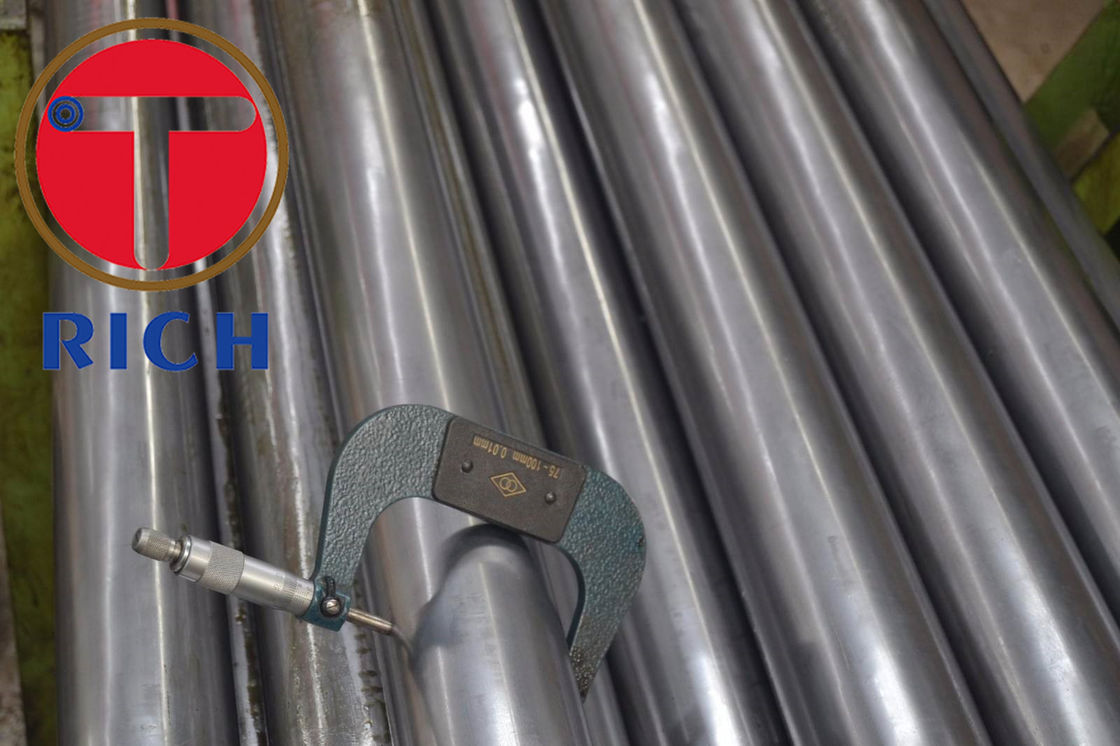

ASTM B167 Inconel 600 Capillary Tube 0

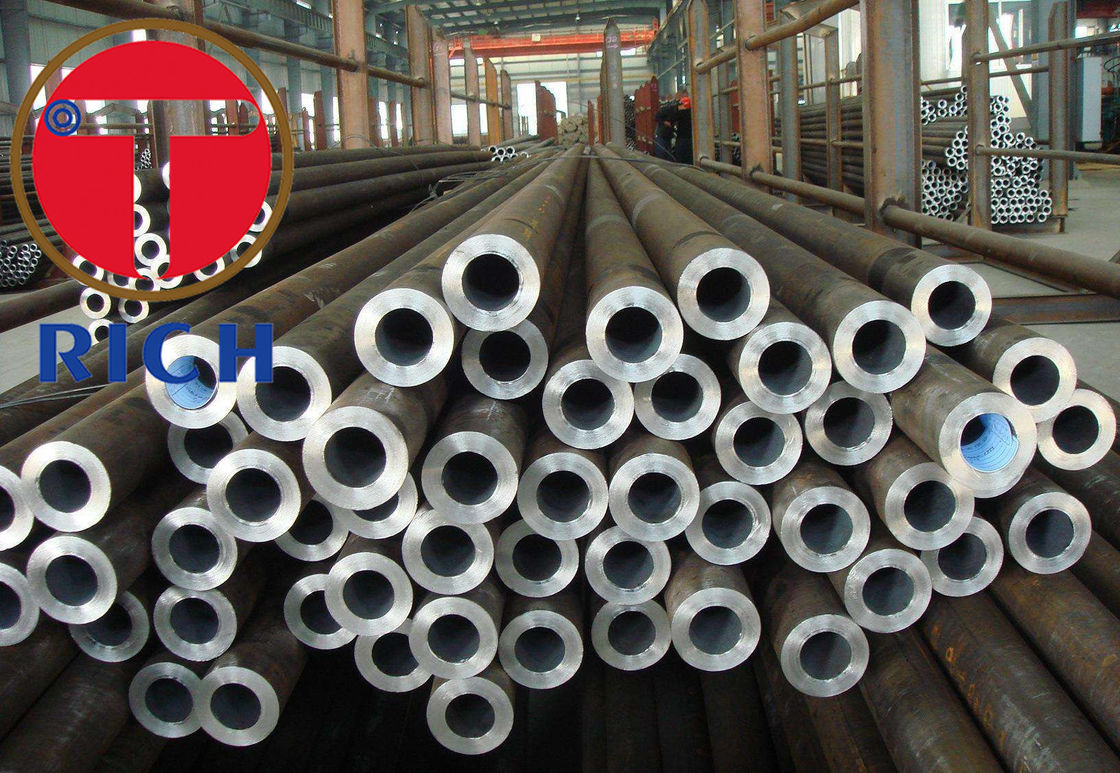

ASTM B167 Inconel 600 Capillary Tube 1

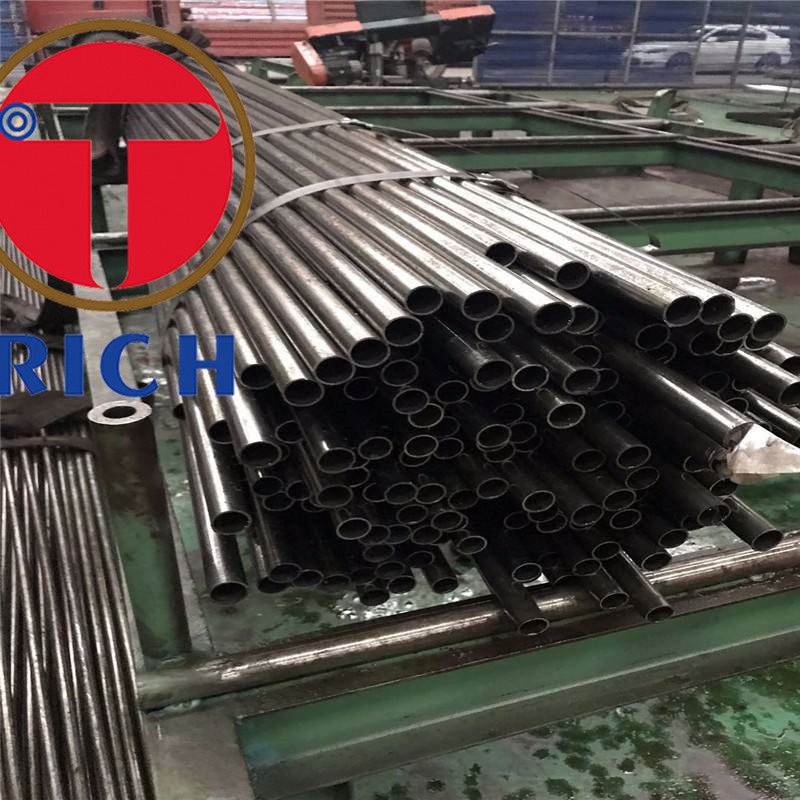

ASTM B167 Inconel 600 Capillary Tube 2

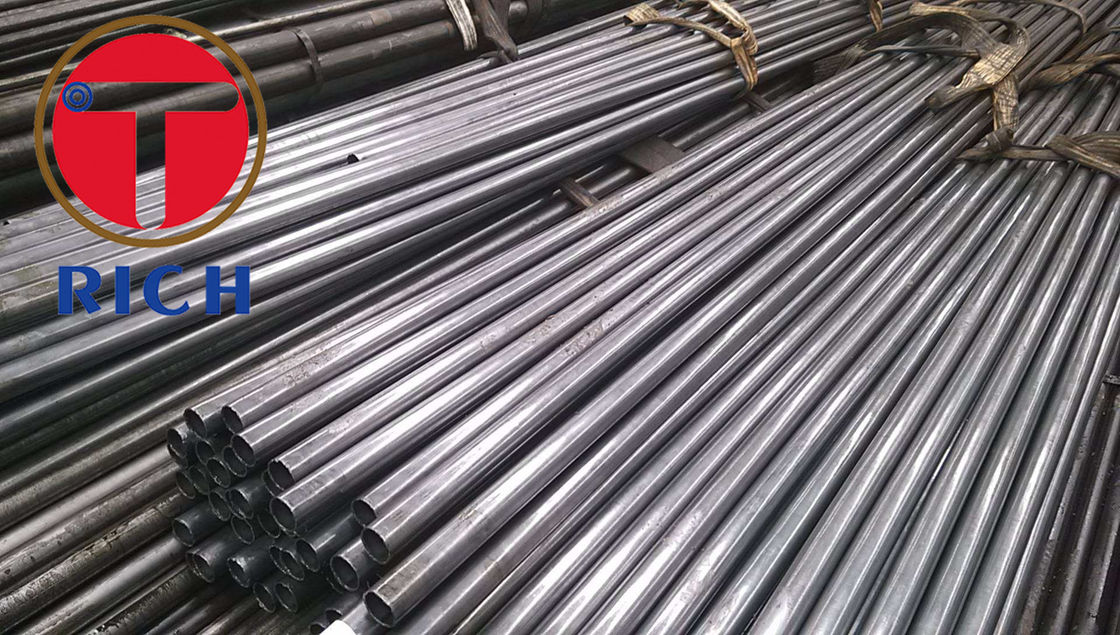

ASTM B167 Inconel 600 Capillary Tube 3
