ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | packing in wooden boxes or in hexagonal bundles | Delivery Time : | 30-35 days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per year |
Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001; ISO14001; TSI16949 | Model Number: | ASTM A312 |
Detail Information |
|||
Product Name: | ASTM A312 Seamless And Welded Austentic Stainless Steel Tube And Pipe For Food Industry | Keyword: | Austentic Stainless Steel Tube |
---|---|---|---|
Standard: | ASTM A312 | Application: | For Daily And Food Industry |
Alloy Or Not: | Alloy | Technique: | Cold-Formed And Hot-Rolled |
Secondary Or Not: | Non-Secondary | Grade: | TPXM-19, TPXM-10, TPXM-11, TPXM-29, TP304, TP304L, TP304H |
O.D.: | 4-305mm | W.T.: | 1-50mm |
Length: | According To Customers' Requirement | Section Shape: | Round |
Usage: | Fluid Pipe | Surface Treatment: | Sand Blast |
Product Description
ASTM A312 Seamless and Welded Austentic Stainless Steel Tube and Pipe For Food Industry
Applications: Sanitary tubing in the daily and food industry
Technique: Cold-Formed and Hot Rolled
Steel Grade/Steel Material:
TPXM-19, TPXM-10, TPXM-11, TPXM-29, TP304, TP304L, TP304H
Size range:
O.D. | 4-305mm |
W.T. | 1-50mm |
Length | max 12000mm |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
Grade: | … | TPXM-19 | TPXM-10 | TPXM-11 | TPXM-29 | TP304 | TP304L | TP304H |
UNS | S20400 | S20910 | S20900 | S21904 | S24000 | S30400 | S30403 | S30409 |
C, max | 0.03 | 0.060 | 0.080 | 0.04 | 0.08 | 0.08 | 0.035 | 0.040-0.10 |
Mn, max | 7.0-9.0 | 4.0-6.0 | 8.0-10.0 | 8.0-10.0 | 11.5-14.5 | 2.00 | 2.00 | 2.00 |
P, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.060 | 0.045 | 0.045 | 0.045 |
S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
Cr | 15.0-17.0 | 20.5-23.5 | 19.0-21.5 | 19.0-21.5 | 17.0-19.0 | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 |
Ni | 1.50-3.00 | 11.5-13.5 | 5.5-7.5 | 5.5-7.5 | 2.3-3.7 | 8.0-11.0 | 8.0-13.0 | 8.0-11.0 |
Mo | … | 1.50-3.00 | … | … | … | … | … | … |
Ti | … | … | … | … | … | … | … | … |
Columbium | … | 0.10-0.30 | … | … | … | … | … | … |
Tantalum | … | … | … | … | … | … | … | … |
Nitrogen | 0.15-0.30 | 0.20-0.40 | 0.15-0.40 | 0.15-0.40 | 0.20-0.40 | … | … | … |
Vanadium | … | 0.10-0.30 | … | … | … | … | … | … |
Copper | … | … | … | … | … | … | … | … |
Cerium | … | … | … | … | … | … | … | … |
Boron | … | … | … | … | … | … | … | … |
Aluminum | … | … | … | … | … | … | … | … |

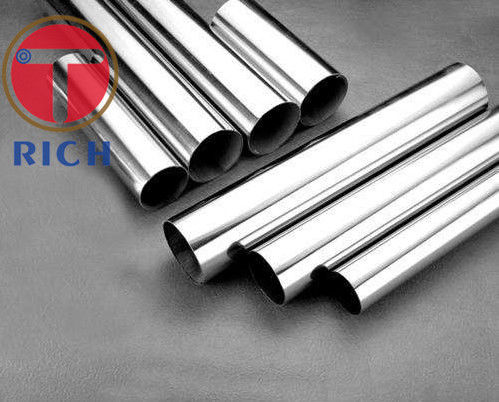

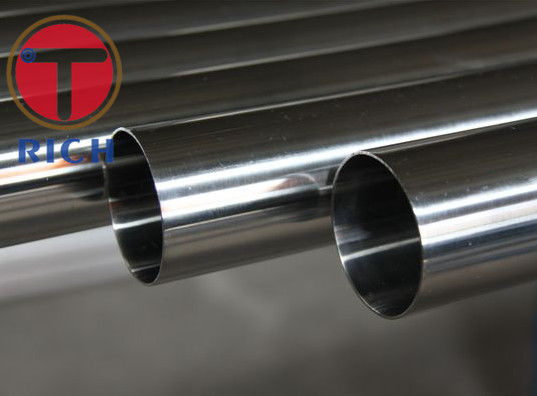

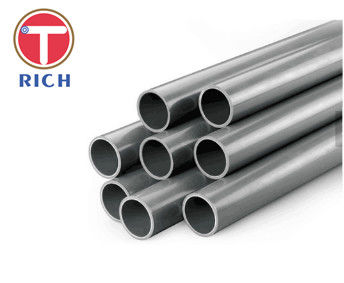

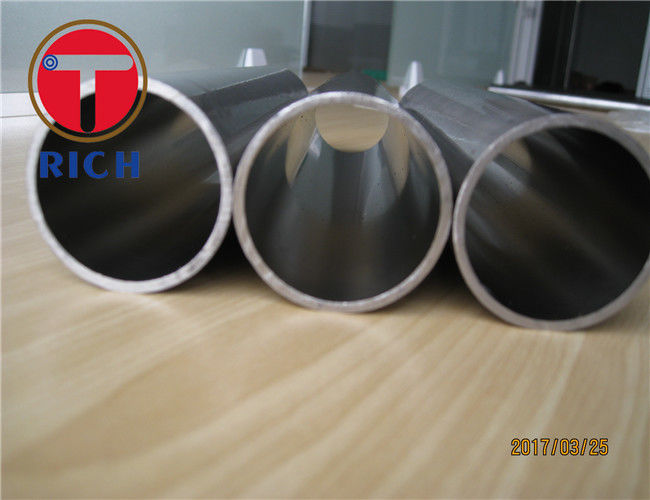

Product Show:
FAQ
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
ASTM A312 Seamless and Welded Austentic Stainless Steel Tube and Pipe For Food Industry
