Mechanical 1/2" Seamless ASTM A270 SS Sanitary Tubing
Product Details
ASTM A270 SS Sanitary Tubing
,1/2" SS Sanitary Tubing
,EN10204 3.1 Precision Steel Tube
ASTM A270 Seamless and Welded Austenitic and Ferritic Stainless Steel Sanitary Tubing
Download Link for: ASTM A270 Standard Specification for Seamless and ...
ASTM A270 Stainless Steel Seamless Tubes and ASTM A270 Welded Tubing primarily consists of the austenitic 304, 304L, 316 and 316L grade in annealed and pickled, 2B finish, bright annealed, mill finish and polished conditions.Our high quality steel tubes, good customer service, and in house pipes and tubes processing capabilities have made us one of the emerging suppliers of ASTM A270 Stainless Steel Tubing and ASTM A270 Stainless Steel Welded Sanitary Tubing.
STAINLESS STEEL TUBE CHEMICAL COMPOSITION:
| STAINLESS STEEL SANITARY TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP304 | S30400 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | S30403 | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | S3160 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
MECHANICAL PROPERTIES:
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
KEY WORDS:
ASTM A270 Sanitary Tubing
ASTM A270 Seamless Sanitary Tubes, ASTM A270 Tubing,
ASTM A270 Welded Sanitary Tubing,
ASTM A270 Welded Sanitary Tubes,
ASTM A270 Stainless Steel Sanitary Tubing

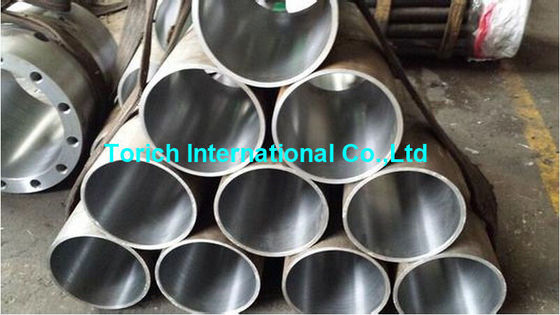

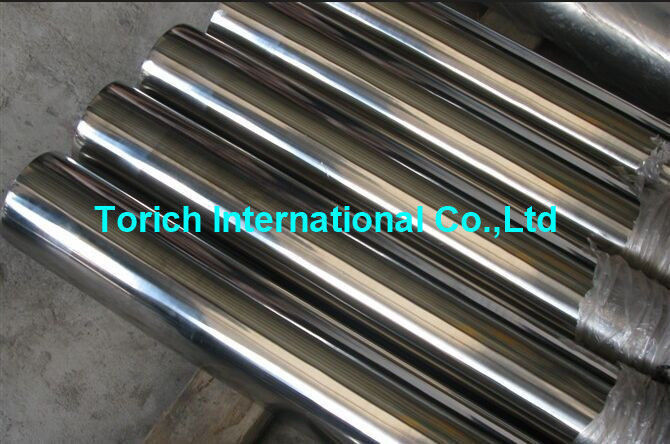

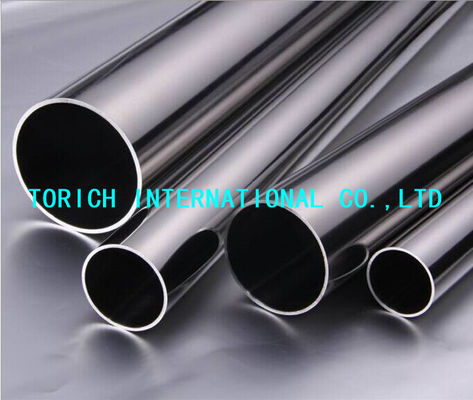

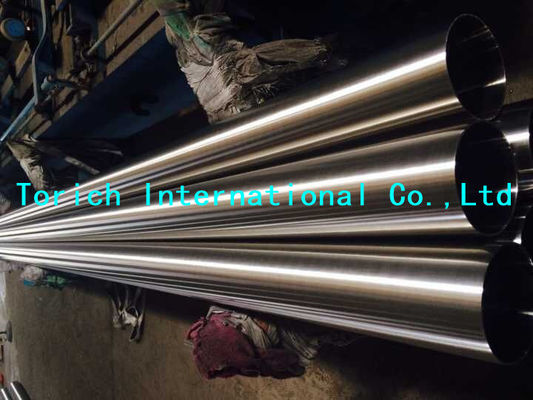

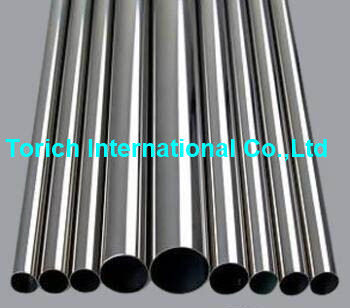

PRODUCT PICTURES:
Packing and Delivery :
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
