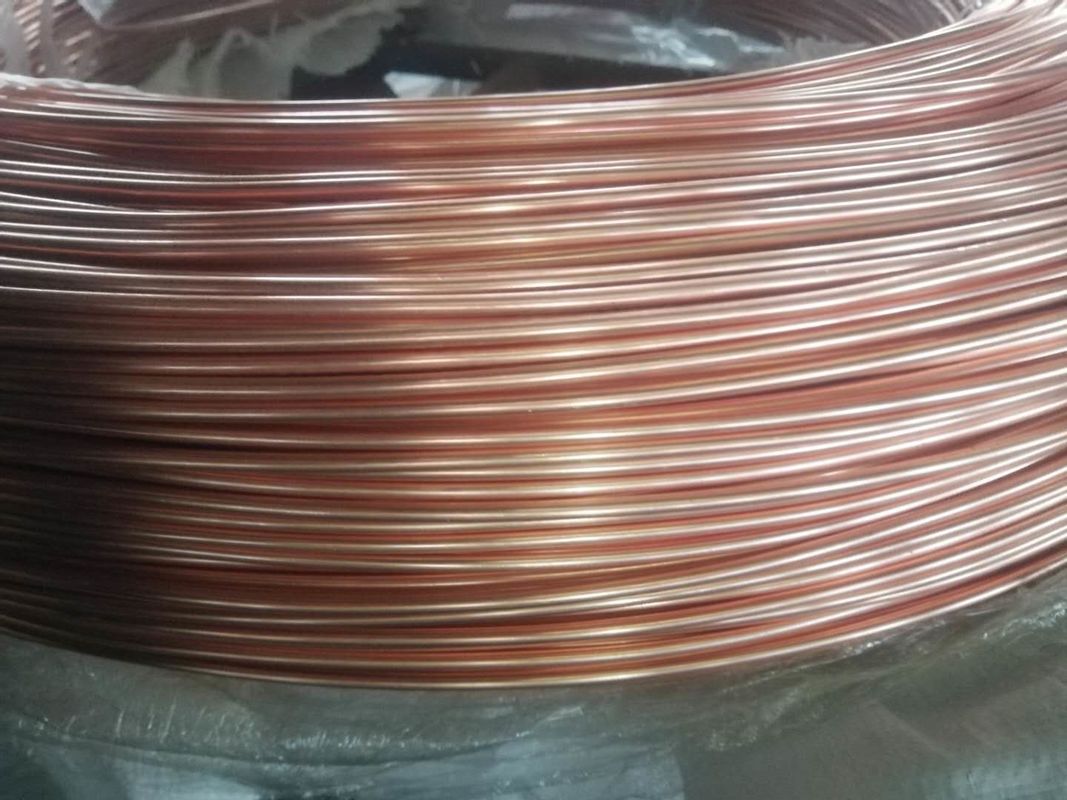

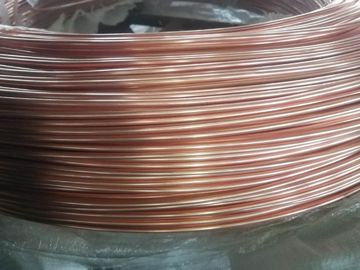

Copper Coating Bundy 4.76*0.7 Welded Steel Tube

Copper Coating Bundy 4.76*0.7 Welded Steel Tube

MOQ: 10 TONS
Standard Packaging: 4.76*0.7 Welded Steel Tube,packed in bundles
Delivery Period: 10-15 days
Payment Method: T/T, L/C, D/A, D/P, Western Union,
Supply Capacity: 5000 ton per year
Detail Information
Place of Origin
Zhejiang,China
Brand Name
TORICH
Certification
ISO9001,ISO14001
Model Number
ASTM A254
Product Name:
4.76*0.7 Welded Steel Tube
Keyword:
Bundy Tube
Material:
ASTM A254 BHG1
Usage:
Refrigeration
Shape:
Round
Technique:
ERW
Surface:
Copper Coating
Length:
Max12000mm
OD:
0.28-10mm
WT:
0.08-1mm
Highlight:

Bundy Welded Steel Tube

,

4.76*0.7 Welded Steel Tube

Product Description

4.76*0.7 Welded Steel Tube

1. Standard

ASTM A254 Copper-brazed steel tubing

SAE J526 Welded low-carbon tubing

EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems



2. Steel Grade

BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06



3. Heat Treatment

BK or NBK



4. Specification

O D/ mm 4 4.2 4.76 6 6.35 7.8 8 9.52
W T 0.5-1.0mm (0.5-0.7mm common WT)
Tolerance ±0.05mm
Length 180Kg/coil; 700-1000m/coil; per customer’s request



5. Production Process

Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing



6. Surface Treatment

Coating Thickness Salt spray test duration
Copper/White Zinc/Colour-Zinc 8μm 72h
PVF 8μm+20μm 1000-2000h
Military Green Zinc 8μm 180h
GALF 8μm+20μm 1000-2000h
Nylon 8μm+40μm 180h



7. Packing: In coil, in wooden box with seaworthy packing



8. Application

1) Fluid carrying system for automobiles

2) Fluid carrying system for refrigerators

3) Wire condenser for chillers, showcase

4) Vending machine, ice machine etc.
