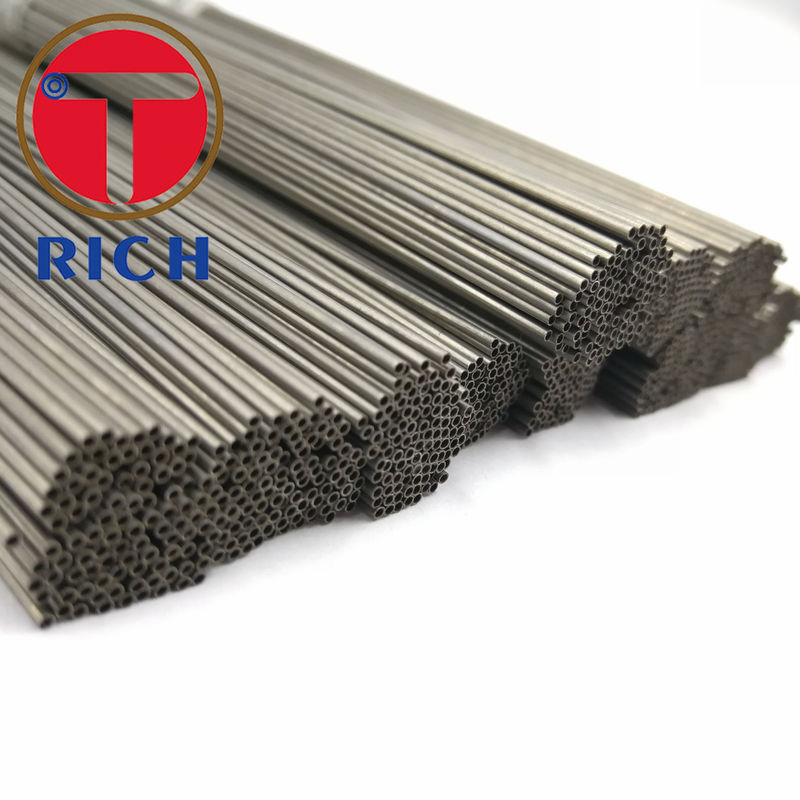

201 304 316 Welded Stainless Steel Tube Syringe Needle Tube ASTM A269 Standard
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
SS201 304 316
Trading Properties
Minimum Order Quantity:
1kgs
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000ton/year
Product Summary
201 304 316 Welded Stainless Steel Capillary Tube For Syringe Needle NameSyringe Needle TubeStandardASTM A213,ASTM A312,ASTM A789,ASTM A790Material Grade201/202/304/316/S31803/S32750Outer Diameter0.1mm--219.1mmThickness0.05mm - 20mmLength≤12000mm or as per customer requestTolerance a) Outer Diameter...
Product Details
Highlight:
stainless steel round tube
,stainless tube steel
Product Name:
Syringe Needle Tube
Standard:
ASTM A269
Technique:
Welded
Section Shape:
Round
Certification:
ISO9001, TS16949
Alloy Or Not:
No
Secondary Or Not:
Non-secondary
Special Tube:
Medical Micro Tube
Surface:
Polished
Shipment:
Ocean/ Air
Product Description
201 304 316 Welded Stainless Steel Capillary Tube For Syringe Needle
| Name | Syringe Needle Tube |
| Standard | ASTM A213,ASTM A312,ASTM A789,ASTM A790 |
| Material Grade | 201/202/304/316/S31803/S32750 |
| Outer Diameter | 0.1mm--219.1mm |
| Thickness | 0.05mm - 20mm |
| Length | ≤12000mm or as per customer request |
| Tolerance | a) Outer Diameter: +/- 0.2mm |
| b) Thickness: +/- 10% OR as customer request | |
| c) Length: +/- 10mm | |
| Surface | Satin / Hairline :180#, 320# |
| Polish : 400# ,600# ,800# or Mirror surface | |
| Pickling | |
| Application | Decoration ,( Processed into railings, handrails, doors and Windows ),medical,industry,etc |
| Packaing | Plastic bag/woven packing(please send details packing to us if you have other requirements) |
| Seamless Welded Tubing (TYPE) |
Material | Min. Burst pressure (PSI) | Min. Collapse pressure (PSI) | Load at Min. 0.2% YS (IBS) | Load at Typical UTS (IBS) |
| 1/8" × 0.028" | 316L | 29,531 | 9,487 | 256 | 768
|
| 1/8" × 0.035" | 316L | 36,914 | 11,132 | 297 | 891 |
| 1/4" × 0.035" | 316L | 18,676 | 6,540 | 709 | 2,128 |
| 1/4" × 0.049" | 316L | 26,146 | 8,635 | 928 | 2,785 |
| 1/4" × 0.065" | 316L | 34,684 | 10,666 | 1,133 | 3,400 |
| 3/8" × 0.035" | 316L | 12,500 | 4,583 | 1,122 | 3,365 |
| 3/8" × 0.049" | 316L | 17,500 | 6,183 | 1,506 | 4,517 |
| 1/2" × 0.035" | 316L | 9,394 | 3,522 | 1,534 | 4,602 |
| 1/2" × 0.049" | 316L | 13,151 | 4,799 | 2,083 | 6,248 |
| 1/2" × 0.065" | 316L | 17,445 | 6,167 | 2,665 | 7,995 |
| 1/2" × 0.083" | 316L | 22,276 | 7,587 | 3,262 | 9,786 |
