Sa179 Sa192 Seamless Special Steel Pipe Carbon Boilers Internal Thread Steel Pipe

Basic Information
Place of Origin: China
Brand Name: TORICH
Certification: ISO9001
Model Number: ASTM A179
Minimum Order Quantity: 5 tons
Packaging Details: Packing: In hexagon bundles, in wooden box
Delivery Time: 30-45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500tons per month
Detail Information
Material: SA179, SA192, SAE1010 , SAE1020 Technique: Cold Drawn
Keywords: Thread Steel Pipe Standard: ASTM A179
OD: 5-420 Mm WT: 1-50 Mm
Length: Up To 12 M Usage: Boiler Tube
Heat Treatment: +C, +A, +N Shape: Internal Thread
High Light:

alloy steel seamless pipe

,

rectangular steel pipe


Product Description

SA192 Seamless Carbon Boilers Tubes Thread Steel Pipe



Applications: Seamless Carbon Boiler Tubes

Size range: O.D.:5-420mm W.T.:0.5-50mm L: according to customer's requirement (Max12m)



Chemical Compositions Mechanical Properties
C 0.06-0.18 Tensil Streghth min ksi[Mpa] 47[325]
Mn 0.27-0.63 Yield Point min ksi[Mpa] 26[180]
P ≤0.035 Elongation ≥35%
S ≤0.035
Si ≤0.25

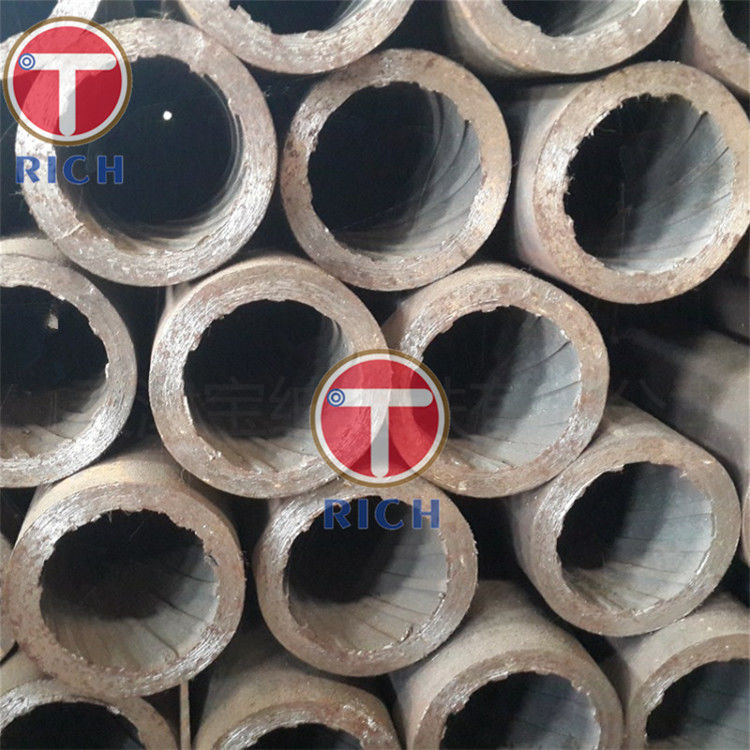

Sa179 Sa192 Seamless Special Steel Pipe Carbon Boilers Internal Thread Steel Pipe 0

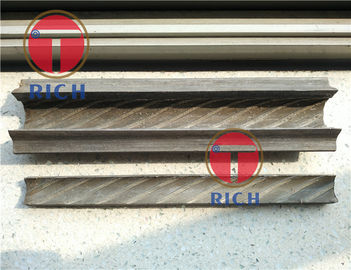

Sa179 Sa192 Seamless Special Steel Pipe Carbon Boilers Internal Thread Steel Pipe 1

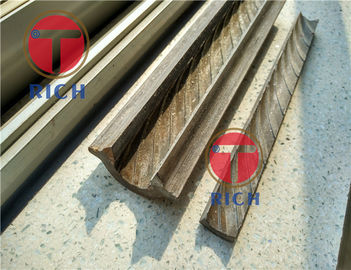

Sa179 Sa192 Seamless Special Steel Pipe Carbon Boilers Internal Thread Steel Pipe 2



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
