Flat Sided Elliptical Welded Carbon Steel Pipe Oiled Surface High Strength
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
GBT3094
Trading Properties
Minimum Order Quantity:
5tons
Price:
Negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000ton/year
Product Summary
Welded Carbon Steel Flat Sided Elliptical Oval Tube Standard GB/T3094, BS, JIS, GB, DIN, ASTM, API Matrial 10#-45# A53-A369, ST35-ST52, Q195, Q235 , Q345 Size OD: 4-1200mm WT: 0.3-200mm Length: 1-12m Application Mechanical engineering , Agricultural machines , Structural construction Surface painted...
Product Details
Highlight:
welded steel pipe
,electric resistance welded steel tube
Product Name:
Carbon Steel Oval Tube
Steel Grade:
Q195, Q235, 1020
Technique:
Welded
Section Shape:
Oval
Certification:
ISO9001, TS16949
Alloy Or Not:
No
Secondary Or Not:
Non-secondary
Special Tube:
Elliptical Structural Tube
Surface:
Oiled
Shipment:
Ocean/ Air
Product Description
Welded Carbon Steel Flat Sided Elliptical Oval Tube
| Standard | GB/T3094, BS, JIS, GB, DIN, ASTM, API |
| Matrial | 10#-45# A53-A369, ST35-ST52, Q195, Q235 , Q345 |
| Size | OD: 4-1200mm WT: 0.3-200mm Length: 1-12m |
| Application | Mechanical engineering , Agricultural machines , Structural construction |
| Surface | painted,galvanized,or oiled according to customer's requirement |
| Test and Inspection | Mechanical Test, Tension Test Flaring Test, Flattening Test Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
Mechanical Properties
| Grade | Tensile Strength min Mpa | Yield Strength min Mpa | Elongation min % |
| 10 | 335 | 205 | 24 |
| 20 | 390 | 245 | 20 |
| 35 | 510 | 305 | 17 |
| 45 | 590 | 335 | 14 |
| Q195 | 315 | 195 | 22 |
| Q215 | 335 | 215 | 22 |
| Q235 | 375 | 235 | 20 |
| Q295 | 430 | 295 | 22 |
| Q345 | 510 | 345 | 21 |
| Q390 | 530 | 390 | 18 |

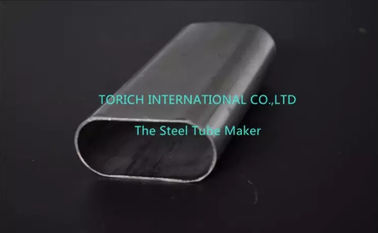

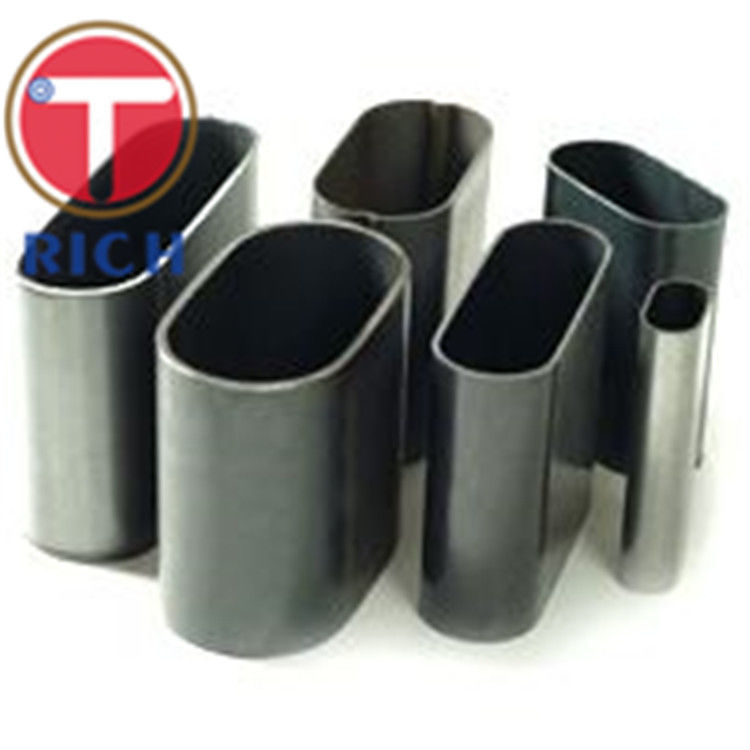

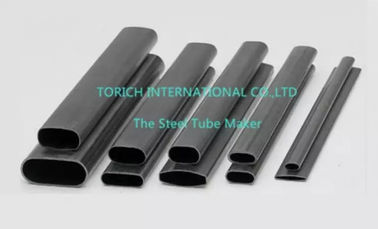

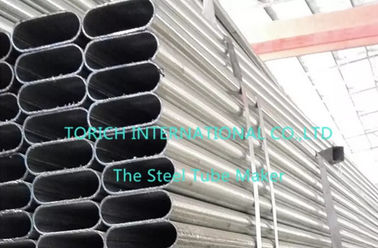

Photos of oval tubes
Packing: packed in bundles, in wooven bags.
