GB/T 31940 Stainless Steel Tube Bi-Metal Composite Corrosion Resistance For Fluid Transportation
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | Stainless Steel Tubes are packed in wooden boxes in seaworthy packing. | Delivery Time : | 30-45 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000Tons per Year |
Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASTM A269 |
Detail Information |
|||
Keyword: | Stainless Steel Tube | Material: | 304, 304L, 316, 316L, 410 Etc Stainless Steel |
---|---|---|---|
OD: | 0.23"to 48" (5.8-1219mm) | WT: | 0.04" To 2" (1.0-50.8mm) |
Length: | Customers' Requirements | Usage: | Special Purpose, Machinery Industry, For Heat Exchanger |
Delivery Condition: | Annealed And Pickled | Type: | Welded Or Seamless |
High Light: | stainless steel round tube,stainless tube steel |
Product Description
TORICH 410 304 316 Seamless Steel Tube Welded Stainless Steel Pipe for Heat Exchanger
Size:ANSI /ASME size is under,other standard of size is for ready choice
O.D.:0.23'to 48'(5.8-1219mm)
W.T.:0.04'to 2'(1.0-50.8mm)
Length:Max.18 Meter
NPS 1/8'-48' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
410 Seamless Steel Tube Welded Stainless Steel Pipe 304 316
Stainless Steel Pipe Surface finish:Annealed,Polished
Process Method:Cold Drawn/Cold Rolled
Delivery Condition:Annealed & Pickled
Torich's Chemical assurance
1.Each lot of raw materials will be tested by spectrometer before put in storage.
2.100%PMI the mother pipe to ensure we put right material.
2.100%PMI the finished pipe again to ensure we produced right grade
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.
Application:Fluid and gas transport,Structure and machining.
Packing:Bundles for each piece then packed in seaworthy wooden cases.

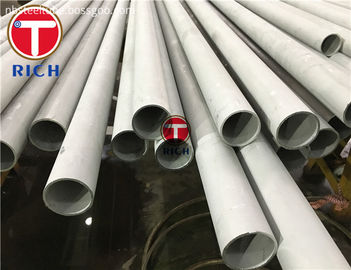

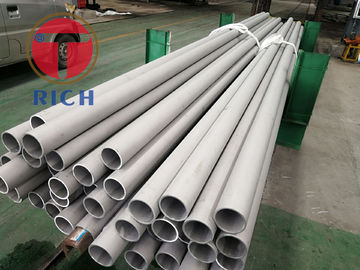

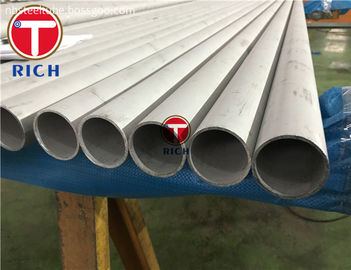

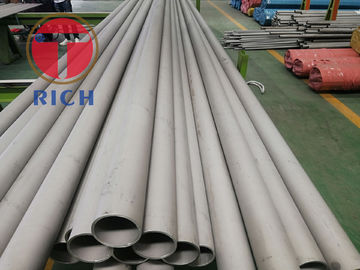

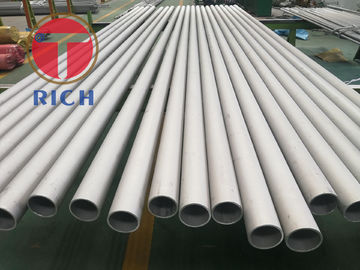

Product pictures:
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
