EN 10305-3 E195 ERW Welded Cold Sized Carbon Steel Tube For Precision Applications
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 500 kgs | Price : | Negotiated |
|---|---|---|---|
| Packaging Details : | in wooden boxes | Delivery Time : | 30-40 days |
| Payment Terms : | L/C, D/A, D/P, T/T | Supply Ability : | 50000 tons one year |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001-2008 ISO14001 | Model Number: | EN10305-1 |
|
Detail Information |
|||
| Material: | Carbon And Alloy Steel | Steel Grade: | E235 E355 E195 |
|---|---|---|---|
| Shape: | Round | Standard: | EN 10305-1 |
| Dimension: | OD6-380mm*WT-35mm*max12000mm | Manufacture: | Seamless Cold Drawn |
| Applications: | Hydraulic Systems | MTC: | EN10204 3.1 |
| High Light: | precision steel pipe,precision seamless pipe |
||
Product Description
EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe
TORICH is working on EN103051 precision seamless steel tube more than 20 years, with much experience in export.
1. Size range of precision seamless steel tube:
O.D.:6-380mm
W.T.:1-35mm
L:max12000mm
2.Ra roughness: max 0.8μm
3. Applications: Hydraulic system
4.Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
5.Mechanical properties:
| Mechanical properties at room temperature | |||||||||||||
| Steel grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Note: Special steel grade is also available, according to customer request.

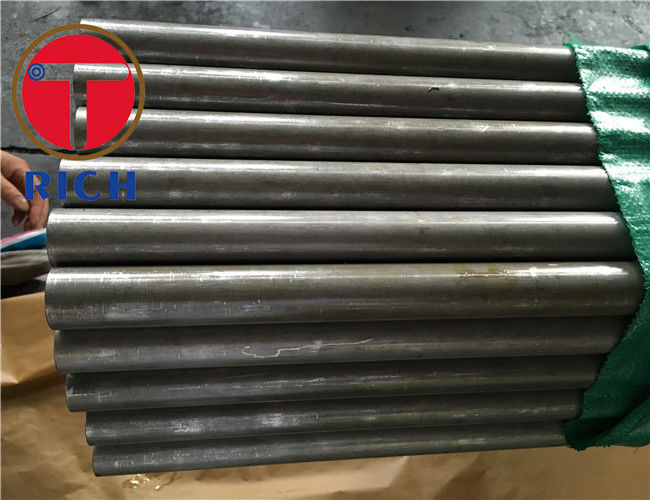

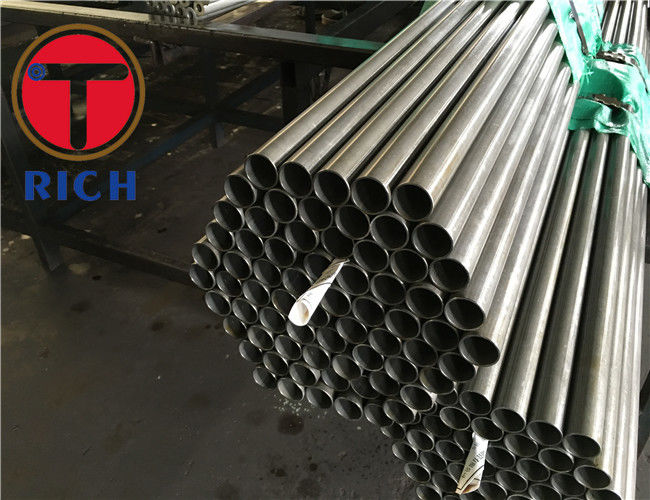

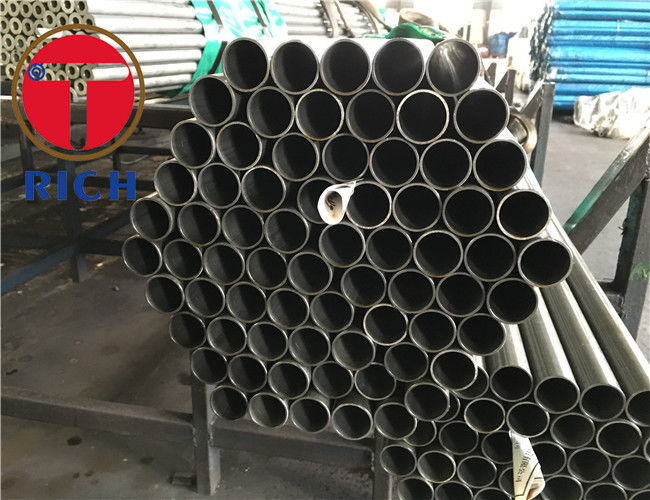

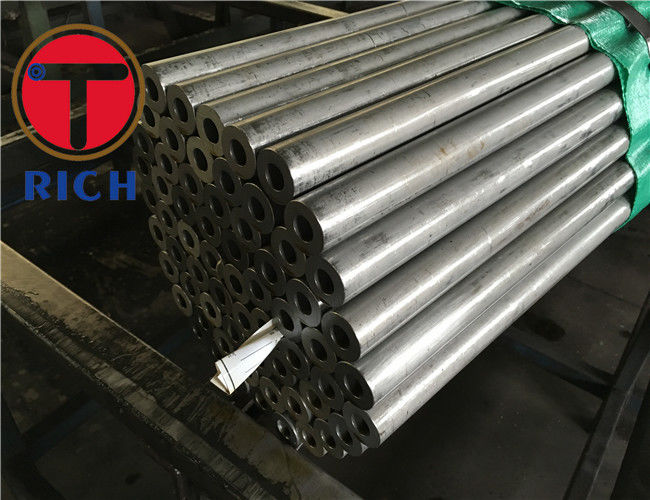

6.Product display after production:
7. Container Loading and Ready for Shipment:
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
8.Q&A
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your delivery term?
A: FOB, CIF, CFR,EXW,CPT,FCA
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
