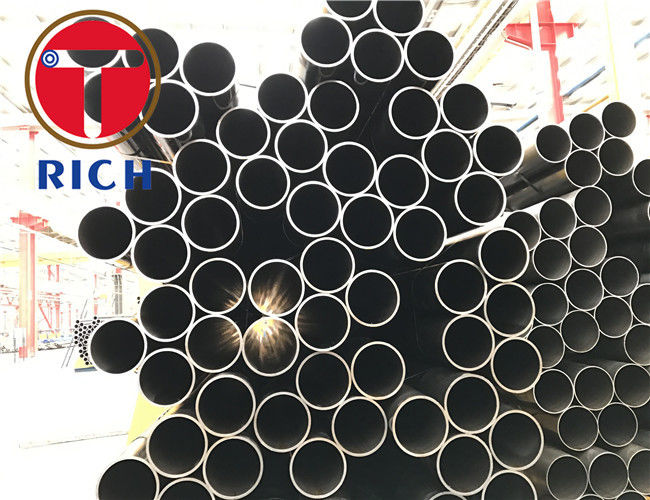

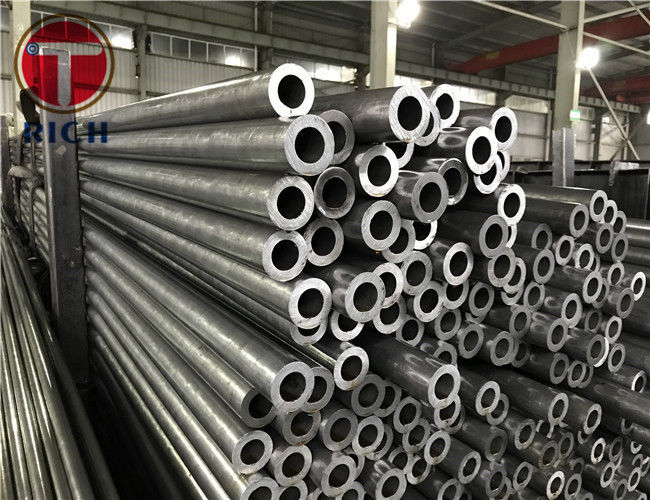

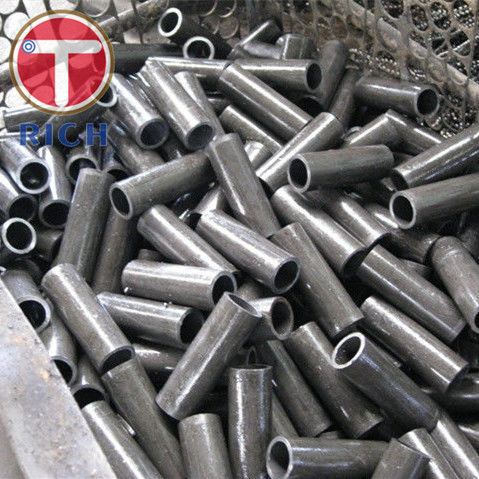

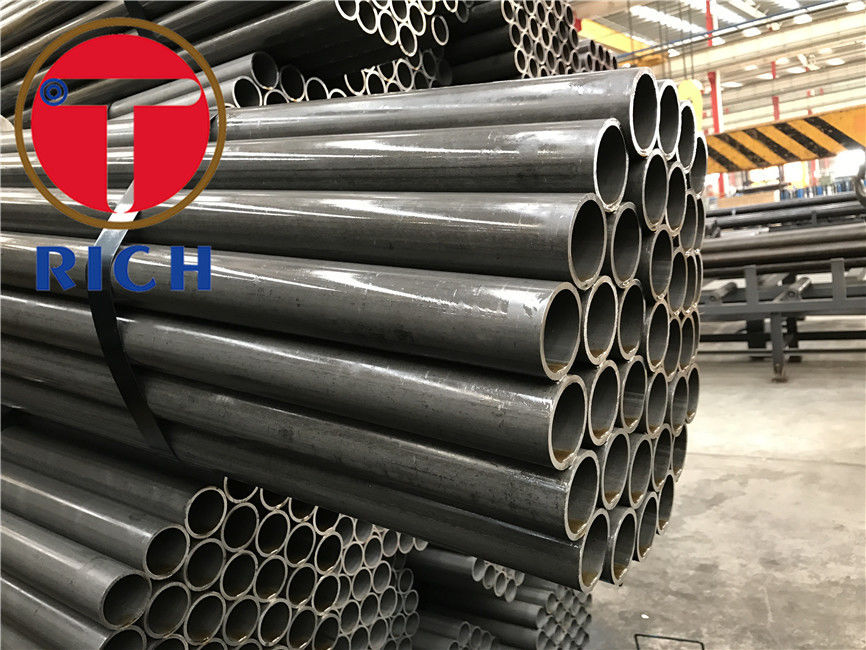

1026 1020 4130 Carbon Seamless DOM Steel Tube ASTM A513 Thin Wall High Tensile

1026 1020 4130 Carbon Seamless DOM Steel Tube ASTM A513 Thin Wall High Tensile

Brand Name: TORICH
Model Number: ASTM A513
MOQ: 5Tons
Price: USD900-2000/ton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Tons per Year
Detail Information
Place of Origin:
ZHEJIANG, CHINA
Certification:
ISO9001, ISO14001, TS16949
Keyword:
DOM Steel Tube
Material:
1008 1010 1018 1020 1026 4130 4140 Etc
OD:
3 - 420 Mm
WT:
1 - 80 Mm
Length:
Max 12000mm
Usage:
For Machinery, Automotive Parts Industry
Production Method:
ERW And Cold Drawn
Delivery Condition:
Sink-drawn, Normalizing,mandrel-drawn
Packaging Details:
DOM Steel Tubes are packed in wooden boxes in seaworthy packing.
Supply Ability:
5000Tons per Year
Highlight:

drawn over mandrel steel tube

,

dom metal tubing

Product Description
Products Description

TORICH High Tensile Thin Wall 34mm MS 1010 Plastic End Caps for AISI 1020 46mm 4130 Carbon Seamless Mild ASTM A513 1026 DOM Tube

Quick Detail:

Honed steel pipes is used for hydraulic Cylinders and oil and pnuematic Cylinders.with material E155 E195 E235 E275 E355. Raw material steel pipes as per stamdard EN10305-2, Cold drawn ERW steel pipes , Cold drawn seamless pipes.



Feature
1.Honed Hydraulic Cylinder Tube is made from DOM steel tubes,With high precison .
2.Low costs than seamless honed hydraulic cylinder tubes.
3.DOM steel tubes ID machining by method Honing, Skiving, Roller Burnish.Improve ID surface .will have Good performace on end product.
4.Steel tubes with heat treatment , will be in nice mechanical properties .



Detail info:

Product name
EN10305-2 DOM Honed Hydraulic Cylinder Tube
Grade
carbon steel E155, E195, E235, E275, E355. S45C
Size
ID.: 20-450mm W.T.:1-80mm L:max12000mm
Standard
EN10305-2
Certification
ISO9001, TS16949
Used
for Auto industry
for machinery use
Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders
Heat treatment method
+Cc, +LCc, +SR, +Ad, +N
Note: Special steel grade is also available, according to customer request.
Please specify the steel grade and heat treatment mothod when sending the enquiry!

Others:
Test Methods:

Tensile test
Flattening test
Drift expanding test
Dimensional inspection
Roughness measurement
Visual examincation
Not-destructive testing
a. Test for longitudinal imperfections-
- Eddy current test - EN10246-3, level E3
- ultrasonic testing - EN10246-7, level U3
b. Leak-tightness
- Non-destructive testing for verification of leak-tightness shall be carried out in accordance with EN10246-1

EN10305 Consists of the following Parts under the general title " Steel tubes for precision applications - Technical delivery conditions "
Part 1: Seamless Cold Drawn Tubes
Part 2: Welded Cold Drawn Tubes
Part 3: Welded Cold Sized Tubes
Part 4: Seamless Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems
Part 5: Welded and Cold Sized Square and Rectangular Tubes
Part 6: Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems

Product Use
1026 1020 4130 Carbon Seamless DOM Steel Tube ASTM A513 Thin Wall High Tensile 01026 1020 4130 Carbon Seamless DOM Steel Tube ASTM A513 Thin Wall High Tensile 1



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
