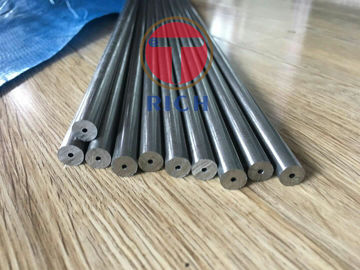

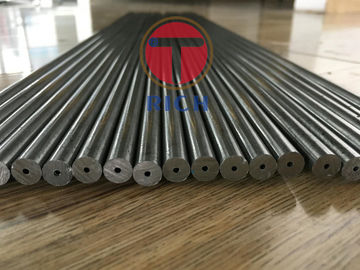

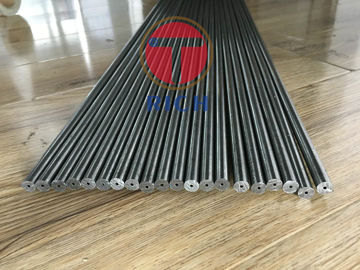

10*2 12*1 Small Bore Tubing For Nozzle Chemical Injection Liquid System
Product Details
structural steel tubing
,cold formed steel tube
10*2 **1 12*1 Small Bore Tubing For Nozzle Chemical Injection Liquid System
Quick detail:
Standard:EN 10305-1 DIN2391
Material: E235 E355 1010 1020 10# 20# St37 St42 etc
Size: 4-12mm
WT:05-7mm
Description:
Chemical composition of EN 10305-1
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel name | Steel number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Mechanical and techological properties of EN 10305-1
| Mechanical properties at room temperature | |||||||||||||
| Steel grade | Minimum values for the delivery condition | ||||||||||||
| Steel name | steel nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450f | 10 | 450 | 22 | 490-630 | 355 | 22 |
- Heat Treatment: +C, +LC, +N, +SR
- Delivery: 60-70 days after receiving 30% T/T in advance
- Payment terms: 30% T/T in advance, the balance 70% paid before shipment.
- Packaging: antirust protection, In hexagon bundles
- Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).
- Mill Test Certificate:EN10204 3.1
Process : high-quality carbon steel billets are selected to ensure their excellent performance from raw materials; special machine tools are used for fine drawing or fine rolling, and the inner and outer walls of the steel pipe have high smoothness and dimensional accuracy, showing the characteristics of metal white and bright similar to stainless steel; vacuum protection bright heat treatment process, There is no oxide layer on the inner and outer walls of the precision seamless steel pipe; it fully meets the requirements of mechanical properties such as high pressure resistance, tensile strength, and impact resistance. The steel pipe has no cracks after bending and flaring, and has excellent performance; After flushing, the inner and outer walls of the steel pipe are coated with anti-rust oil for anti-rust treatment, and both ends are covered with dust-proof covers.

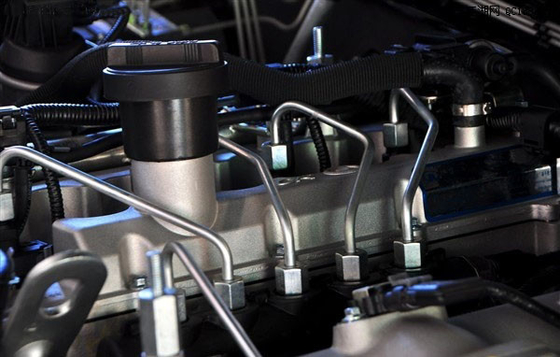

Application industry: used in automobile pipelines, hydraulic and pneumatic systems and users who have high requirements for steel pipe accuracy, inner and outer wall finish, high cleanliness and mechanical properties; fully meet the requirements for high-clean hydraulic pipelines, and the effect is ideal; in hydraulic cylinders , engine, hydraulic pump station, hydraulic system and other fields are widely used, and it is an ideal pipe for mechanical hydraulic devices.
-
