ASTM B167 Inconel 690 Nickel Chromium Iron Alloys Seamless Steel Pipe For Steam Generator
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 100 Kgs | Price : | USD 60-80 Per Kg |
|---|---|---|---|
| Packaging Details : | Anti Rust Oil Protection, in seaworthy packing | Delivery Time : | 4-6 Weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Tons Per Month |
| Place of Origin: | Zhejiang | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO | Model Number: | Inconel 625 |
|
Detail Information |
|||
| Ni (Min): | 58% | Elongation (≥ %): | 30 % |
|---|---|---|---|
| Resistance (μΩ.m): | 1.5 | Ultimate Strength (≥ MPa): | 690 |
| Grade: | Nickel Base Alloy | Material: | Inconel |
| High Light: | inconel 600 tube,inconel 601 tube |
||
Product Description

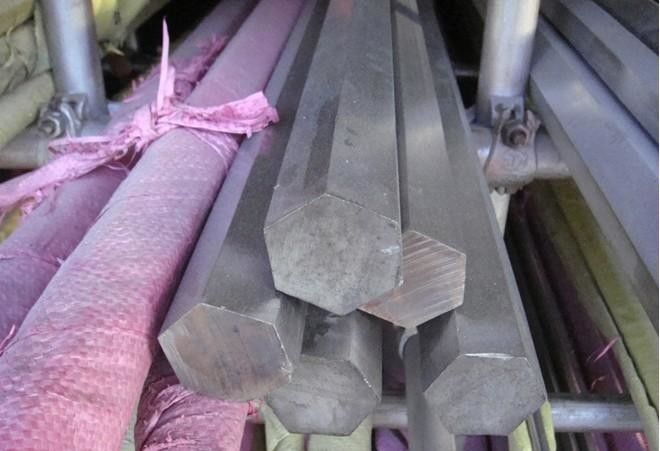

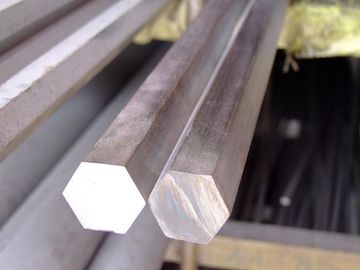

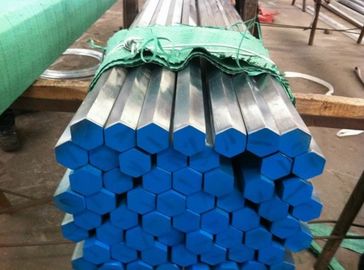

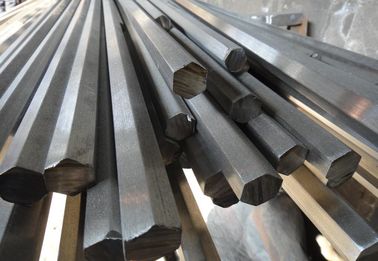

Nickel Base Alloy Inconel 625 Hex Bar Tube Make Pumps and Valves and Other High Pressure Equipment.
Inconel Alloy 625
(UNS designation N06625) is a nickel-based superalloy that possesses
high strength properties and resistance to elevated temperatures. It also demonstrates
remarkable protection against corrosion and oxidation. Its ability to withstand high stress
and a wide range of temperatures, both in and out of water, as well as being able to resist
corrosion while being exposed to highly acidic environments makes it a fitting choice for
nuclear and marine applications.
Inconel 625 was developed in the 1960s with the purpose of creating a material
that could be used for steam-line piping. Some modifications were made to its
original composition that have enabled it to be even more creep-resistant and
weldable. Because of this, the uses of Inconel 625 have expanded into a wide range
of industries such as the chemical processing industry, and for marine and nuclear
applications to make pumps and valves and other high pressure equipment.
Nickel Alloy Chemical Composition:
| UNS | Chemical ,% | ||||||||
| C max | Si max | S max | Mn max | Ni | P | V | W | |||
| N02200 | 0.15 | 0.35 | 0.01 | 0.35 | 99 min | … | … | … | |
| N02201 | 0.02 | 0.35 | 0.01 | 0.35 | Ni+Co 99min | … | … | … | |
| 10276 | 0.01 | 0.08 | 0.03 | 1.0 | Balance | 0.04max | 0.35max | 3.0-4.5 | |
| Grade | UNS | Tensile Strength Min Ksi(Mpa) | Yield Strength Min Ksi(Mpa) | Elongation in 2 in or 50 mm ,Min,% | ||||||
| S04400 | 70(483) | 28(193) | 35 | ||||||
| S06600 | 80(552) | 35(241) | 30 | ||||||
| S06601 | 80(552) | 30(207) | 30 | ||||||
| S06625 | 120(827) | 60(414) | 30 | ||||||
| UNS N08800 | 75(520) | 30(205) | 30 | ||||||
| UNS N08810 | 85(586) | 35(241) | 30 | ||||||
| UNS N08811 | 65(448) | 25(172) | 30 | ||||||
| UNS N08825 | 85(586) | 35(241) | 30 | ||||||
| UNS N02200 | 55(379) | 15(103) | 40 | |||||||
| UNS N02201 | 50(345) | 12(83) | 40 | |||||||
| UNS N10276 | 50(690) | 41(283) | 40 | ||||||
Note :
Inconel 625 : Gr1: Annealed at 871ºC min
Gr2:Solution annealed at 1090 ºC min with or without subsequent stabilization.
Available Size:
OD: 6.53-219.1 mm
WT: 0.89-12.7 mm
L: 20 meter Max
Available Specification :
ASTM B161 /B 163/ B 165/ B 167/ B 407/ B 423/ B 444/ B 751/ B 775/ B 829
ASTM SB161 /SB 163/ SB 165/ SB 167/ SB 407/ SB 423/ SB 444/ SB 751/ SB 775/ SB 829
Delivery Condition:
