ASTM A795 Welded Steel Tube for Fire Protection 1/2-10 Inch

ASTM A795 Welded Steel Tube for Fire Protection 1/2-10 Inch

MOQ: 5 tons per year
Price: 600-1000USD/ton
Standard Packaging: In bundles
Delivery Period: 5-8 week days
Payment Method: L/C, T/T
Supply Capacity: 5000tons per year
Detail Information
Place of Origin
China
Brand Name
Torich
Certification
ISO9001 TS16949
Model Number
ASTM A795
Standard:
ASTM A795
Material:
GrA And GrB
OD:
1/2"-10”
WT:
2.77-7.80mm
Length:
12m Max
Produce Method:
Welded Or Seamless
Highlight:

welded steel pipe

,

electric resistance welded steel tube

Product Description

ASTM A795 Black and Hot Dipped Zinc-Coated(Galvanized)Welded fire protection pipes (Fire Sprinkler Pipe)



Quick detail

Standard

ASTM A795

Material

GrA and GrB

OD

1/2"-10”

WT

2.77-7.80mm

Length

12m max

Produce method

Welded or Seamless

Anticorrosive

1. hot galvanized; 2. powder coating; 3.painting

End

1.Grooved; 2. Plain end; 3.screwed & socketed

Function

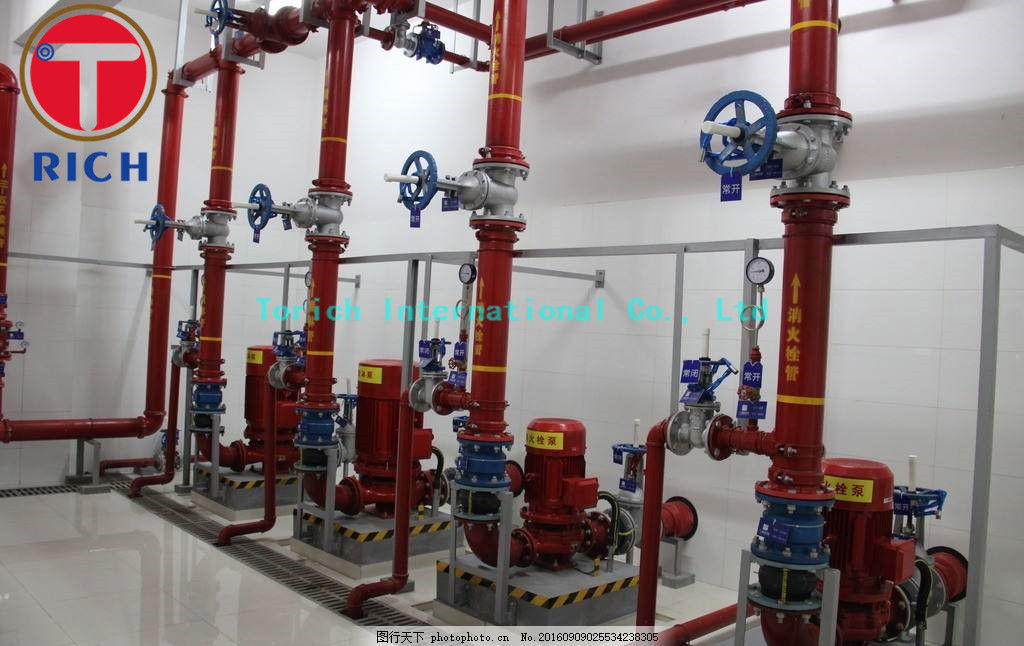

Fire and water supply system in building



Detail description:



ASTM A795 steel pipe(A fire sprinkler pipe )is the component of the fire fighting sprinkler system that

discharges water when the fire had been detected that the temperature exceeded the predetermined

temperature. The fire sprinkler piping is extensively used worldwide. There are several sprinklers provided

by the fire sprinkler pipe suppliers, like quick response, standard response, CMSA, residential, ESFR.




ASTM A795 (BLACK & GALVANISED)

N.D.

O.D.

SCH 10

SCH 30/40

WALL THICKNESS

NOMINAL WEIGHT

WALL THICKNESS

NOMINAL WEIGHT

(mm)

(inch)

(mm)

(inch)

(mm)

(inch)

(kg/mtrs)

(lbs/ft)

(mm)

(inch)

(kg/mtrs)

(lbs/ft)

15

1/2

21.30

0.84

----

----

----

----

2.77

0.109

1.27

0.85

20

3/4

26.70

1.05

2.11

0.083

1.28

0.96

2.87

0.113

1.69

1.13

25

1

33.40

1.32

2.77

0.109

2.09

1.41

3.38

0.133

2.50

1.68

32

1-1/4

42.20

1.66

2.77

0.109

2.69

1.81

3.56

0.14

3.39

2.27

40

1-1/2

48.30

1.90

2.77

0.109

3.11

2.09

3.68

0.145

4.05

2.72

50

2

60.30

2.38

2.77

0.109

3.93

2.64

3.91

0.154

5.45

3.66

65

2-1/2

73.00

2.88

3.05

0.12

5.26

3.53

5.16

0.203

8.64

5.80

80

3

88.90

3.50

3.05

0.12

6.46

4.34

5.49

0.216

11.29

7.58

90

3-1/2

101.60

4.00

3.05

0.12

7.41

4.98

5.74

0.226

13.58

9.12

100

4

114.30

4.50

3.05

0.12

8.37

5.62

6.02

0.237

16.09

10.80

125

5

141.30

5.56

3.4

0.134

11.58

7.78

6.55

0.258

21.79

14.63

150

6

168.30

6.63

3.4

0.134

13.85

9.30

7.11

0.28

28.29

18.99

200

8

219.10

8.63

4.78

0.188

25.26

16.96

7.04

0.277

36.82

24.72

250

10

273.10

10.75

4.78

0.188

31.62

21.23

7.08

0.307

51.05

34.27





  ASTM A795 Welded Steel Tube for Fire Protection 1/2-10 Inch   ASTM A795 Welded Steel Tube for Fire Protection 1/2-10 Inch
