TORICH ASTM A519 1045 4130 4140 Precision Seamless Carbon Steel Mechanical Tube
Basic Properties
Place of Origin:
ZHEJIANG, CHINA
Brand Name:
TORICH
Certification:
ISO9001, ISO14001, TS16949
Model Number:
ASTM A519
Trading Properties
Minimum Order Quantity:
5 Tons
Price:
Negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000Tons per Year
Product Summary
TORICH ASTM A519 1045 4130 4140 Precision Seamless Carbon Steel Mechanical Tube Material:1045 4130 4140 etc Size: OD: 1mm~50mm WT: 6mm~350mm Length: 12m max Technique: Cold Draw/Cold Rolled Surface: Anti Rust Oil End protector: Plastic Pipe Cap Tolerance: It can be controled within OD/Thickness +/-0...
Product Details
Highlight:
precision steel pipe
,precision seamless pipe
Keyword:
Carbon Steel Tube
Material:
1045 4130 4140
WT:
1mm~50mm
OD:
6mm~350mm
Application:
For Auto Parts, Machinery Parts
Tolerance:
+/-0.1mm
Surface:
Anti Rust Oil
End Protector:
Plastic Pipe Cap
Product Description
TORICH ASTM A519 1045 4130 4140 Precision Seamless Carbon Steel Mechanical Tube
Material:1045 4130 4140 etc
Size: OD: 1mm~50mm WT: 6mm~350mm Length: 12m max
Technique: Cold Draw/Cold Rolled
Surface: Anti Rust Oil
End protector: Plastic Pipe Cap
Tolerance: It can be controled within OD/Thickness +/-0.1mm
Application: Auto Parts, Machinery Parts
Test: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test
Chemical Requirements
| Steel grade | C max | Mn | P max | S max | Si max | Cr max | Mo |
| 1045 | 0.45-0.50 | 0.60-0.90 | 0.04 | 0.05 | | | |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.04 | 0.04 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.04 | 0.04 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Mechanical Properties
| Steel Grade | Tensile Strength, min | Yield Strength, min | Enlongation %, min | Rockwell Hardness B Scale |
| 1045 HR | 75 ksi 517Mpa | 45ksi 310Mpa | 15% | 80 |
| 1045CW | 90ksi 621Mpa | 80ksi 552Mpa | 5% | 90 |
| 1045SR | 80ksi 552Mpa | 70ksi 483Mpa | 8% | 85 |
| 1045A | 65ksi 448Mpa | 35ksi 241Mpa | 20% | 72 |
| 1045N | 75ksi 517Mpa | 48ksi 331Mpa | 15% | 80 |
| 4130 HR | 90ksi 621Mpa | 70ksi 483Mpa | 20% | 92 |
| 4130 SR | 105ksi 724Mpa | 85ksi 586Mpa | 10% | 95 |
| 4130A | 75ksi 517Mpa | 55ksi 379Mpa | 30% | 81 |
| 4130N | 90ksi 621Mpa | 60ksi 414Mpa | 20% | 89 |
| 4140 HR | 120ksi 855Mpa | 90ksi 310Mpa | 15% | 100 |
| 4140 SR | 120ksi 855Mpa | 100ksi 689Mpa | 10% | 100 |
| 4140 A | 80ksi 552Mpa | 60ksi 414Mpa | 25% | 85 |
| 4140 N | 120ksi 855Mpa | 90ksi 621Mpa | 20% | 100 |

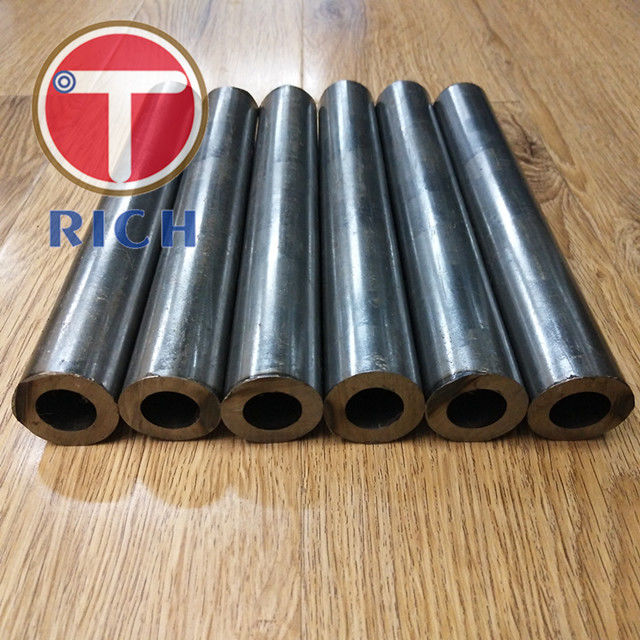

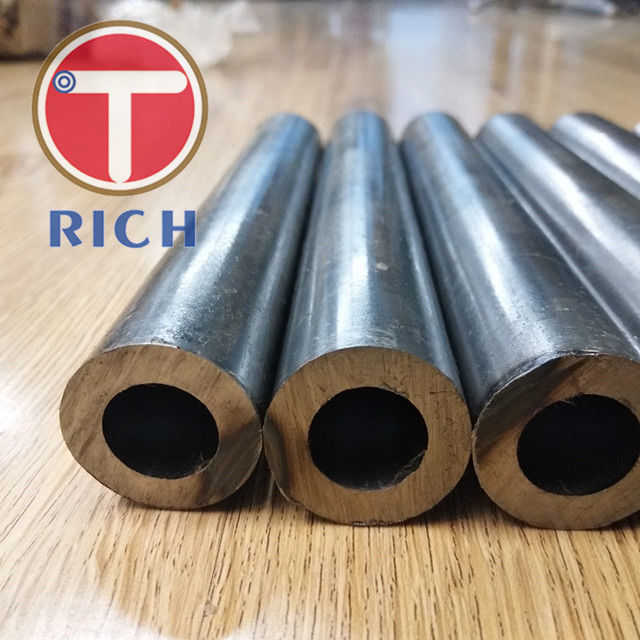

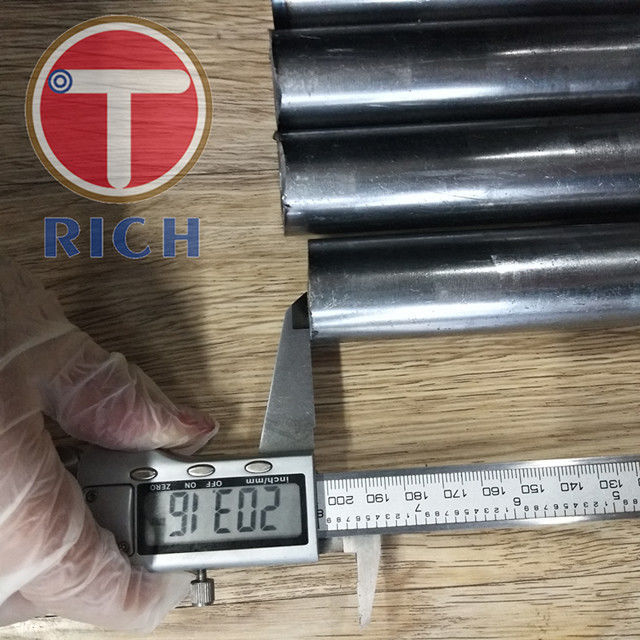

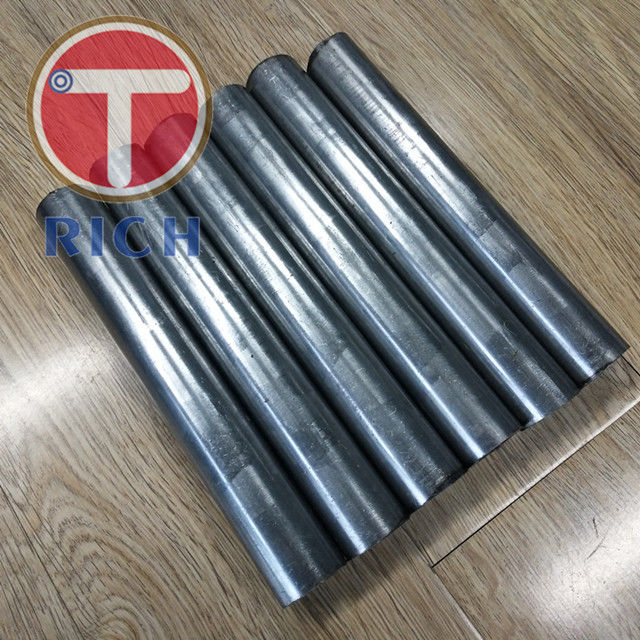

Product Show
Manufacturing Process
Packing & Delivery
Packing Details : In bundles or in wooden boxes packaging
Delivery Details : 30-60days
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
