Carbon Seamless Triangle Pto Shaft Tubing DIN 2391 For Algricultural Machineries

Carbon Seamless Triangle Pto Shaft Tubing DIN 2391 For Algricultural Machineries

MOQ: 5Tons
Price: negotiable
Standard Packaging: Triangle Lemon Tubes are packed in wooden boxes in seaworthy packing.
Delivery Period: 30-45 work days
Payment Method: L/C, D/A, D/P, T/T, Western Union,
Supply Capacity: 5000Tons per Year
Detail Information
Place of Origin
ZHEJIANG, CHINA
Brand Name
TORICH
Certification
ISO9001, ISO14001, TS16949
Model Number
DIN2391
Keyword:
Triangle Lemon Tube
Standard:
DIN 2391, GB/T3639, EN10305, DIN3094
Material:
10#~45#,16Mn, ST35~ST52 Carbon Steel
WT:
3mm~20mm
OD:
30mm~200mm
Application:
For Algricultural Machineries
Hardness:
HB170-217
Technique:
Cold Draw/Cold Rolled
Highlight:

structural steel square tubing

,

rectangular steel pipe

Product Description
Products Description

TORICH DIN 2391 Carbon Seamless Triangle Lemon Tube PTO Tube For Algricultural Machineries
Standard
DIN 2391, GB/T3639, EN10305, DIN3094
Material
10#~45#,16Mn, ST35~ST52 Carbon Steel
Size
OD: 30mm~200mm WT: 3mm~20mm Length: according to customer requirement
Technique
Cold Draw/Cold Rolled
Hardness
HB170-217
Tolerance
It can be controled within OD/Thickness +/-0.1mm
Application
The POWER-TAKE-OFF system in agriculture machinery Harvester, Tractors
Test
Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test



Diagonal(mm) A
High(mm) B
Wall Thickness(mm) S
39.1
30
2.85
30.8
23.7
3.4
48.2
41.25
3
40.1
34.5
3.85
57.5
48
3.77
49
39.5
4.6

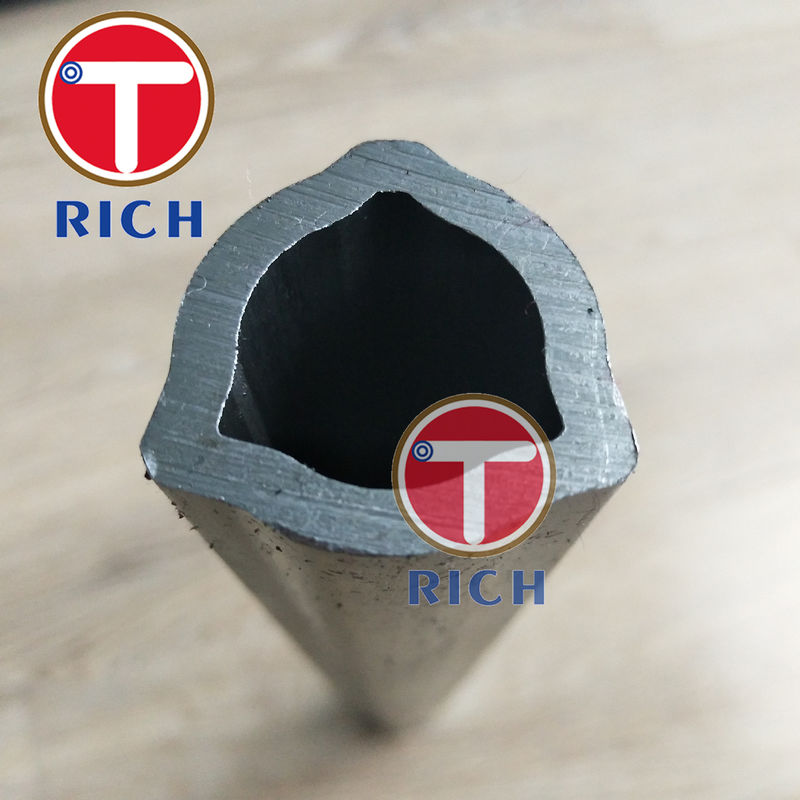

Product Show
Carbon Seamless Triangle Pto Shaft Tubing DIN 2391 For Algricultural MachineriesCarbon Seamless Triangle Pto Shaft Tubing DIN 2391 For Algricultural Machineries



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
