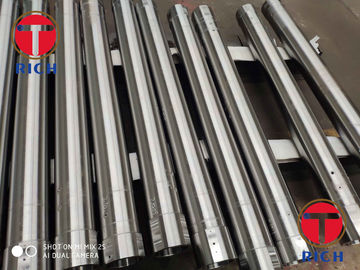

High Quality Tube Machining For Electro -Mechanical Linear Actuators from TORICH
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 TS 16949
Model Number:
42CrMo
Trading Properties
Minimum Order Quantity:
5 tons
Price:
1200-2000 usd per ton
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
6000 tons per month
Product Summary
High Quality Tube Machining For Electro -Mechanical Linear Actuators from TORICH Specification: OD: 3mm-150mm Wall thickness: 0.4mm-15mm Tolerance of diameter: ≤±0.05mm; Tolerance of W.T.: ≤±0.05mm; Concentricity: ≤0.05mm Straightness : 0.30mm/m Note: DN - Nominal Diameter NPS -Nominal Pipe Size ...
Product Details
Highlight:
steel mechanical tubing
,low carbon steel pipe
Product Name:
42CrMo + QT Seamless Precision Steel Tubes
Keyword:
Tube Machining
Application:
Used For Electro-Mechanical Linear Actuators
Material:
42CrMo,1045,35 CrMo,St52,etc.
Shape:
Round
Type:
QT (Quenched And Tempered)
Surface:
Nickle,Chrome,Nickle+Chrome Plated Or Oiled
OD:
3-150mm
WT:
0.4-15mm
Length:
Customized
Product Description
High Quality Tube Machining For Electro -Mechanical Linear Actuators from TORICH
Specification:
OD: 3mm-150mm
Wall thickness: 0.4mm-15mm
Tolerance of diameter: ≤±0.05mm;
Tolerance of W.T.: ≤±0.05mm;
Concentricity: ≤0.05mm
Straightness : 0.30mm/m
Note:
DN - Nominal Diameter
NPS -Nominal Pipe Size
Application:
1. High dimensional accuracy, the tolerance of inner and outer diameter size can be accurate to within 0.05mm, better tolerance can controled wihthin 0.025mm. Precision H8-H10
2. Good surface smoothness finish;
3. Good cleanliness, inside and outside surface no oxide layer
4. Can withstand high pressure, cold bending, flaring flattening, without cracking/ wrinkled
5. Excellent overall performance, can make a variety of complex deformation and machining.
Application:
For mechanical engineering
For mechanical and pressure use,and also for transporting steam,water,gas and etc.
ASTM A519 specification covers for several grades of carbon and alloy steel mechanical tubing, either hot-finished or cold-finished.
1.Auto parts ;Gas spring;Motor housing, dc motor;Industrial processing: machine parts, bearing sleeve, Hydraulic cylinder ,air cylinder;Other: electrical gas transmission, water generation fluid pipeline, etc.
| Processing | Cylinder diameter | Length /mm | Straightness | Size accuracy | Wall thickness/mm | Inner bore roughness |
| Cold-drawn | ID50~OD325 | ≤12m | 0.3~0.8mm/m | ±8% | 0.8~1.6um | |
| Honed tube | ID50~OD325 | ≤10m | 0.3~0.8mm/m | H8~H9 | ±8% | 0.2~0.6um |
