ERW Seamless WT24mm ASTM 500 Rectangle Steel Tube
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Stainless Steel Square Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | 304 316 |
|
Detail Information |
|||
| Keyword: | Stainless Steel Square Tube | Material: | 304, 304L, 316, 316L, TP409 Etc |
|---|---|---|---|
| OD: | 8-100mm*8-100mm | WT: | 1mm-8mm |
| Length: | 2000-12000mm | Production Method: | Seamless Or Welded |
| Delivery Condition: | Pickled And Annealed, Or As Customer's Requirement | End Protector: | Plain / Beveled |
| High Light: | stainless tube steel,large diameter stainless steel tube |
||
Product Description
|
Standard
|
ASTM, GB, JIS, DIN
|
|
Matrial
|
304, 304L, 316, 316L, TP409 Etc
|
|
Size
|
OD: 8-100mm*8-100mm WT: 1-8mm Length: max 12000mm
|
|
Production Method
|
Seamless Or Welded
|
|
Delivery Condition
|
Pickled and Annealed, or as customer's requirement
|
|
Test and Inspection
|
Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test
|
|
Production Processs
|
The tubes shall be made from flat-rolled steel by an automatic welding process with no addition of the filler metal----cold drawn to square or rectangular shape tube----cut to the required length----deburr
|
|
Grade
|
TP304
|
TP304L
|
TP304LN
|
TP316
|
TP316L
|
TP316LN
|
TPXM-29
|
TP304N
|
|
UNS
|
S30400
|
S30403
|
S30453
|
S31600
|
S31603
|
S31653
|
S24000
|
S30451
|
|
C, max
|
0.08
|
0.035
|
0.035
|
0.080
|
0.035
|
0.035
|
0.080
|
0.080
|
|
Mn, max
|
2.00
|
2.00
|
2.00
|
2.00
|
2.00
|
2.00
|
11.5-14.5
|
2.00
|
|
P, max
|
0.045
|
0.045
|
0.045
|
0.045
|
0.045
|
0.045
|
0.060
|
0.045
|
|
S, max
|
0.030
|
0.030
|
0.030
|
0.030
|
0.030
|
0.030
|
0.030
|
0.030
|
|
Si, max
|
1.00
|
1.00
|
1.00
|
1.00
|
1.00
|
1.00
|
1.00
|
1.00
|
|
Ni
|
18.0-20.0
|
18.0-20.0
|
18.0-20.0
|
16.0-18.0
|
16.0-18.0
|
16.0-18.0
|
17.0-19.0
|
18.0-20.0
|
|
Cr
|
8.0-11.0
|
8.0-13.0
|
8.0-12.0
|
11.0-14.0
|
10.0-14.0
|
10.0-14.0
|
2.3-3.7
|
8.0-18.0
|
|
Mo
|
---
|
---
|
---
|
2.00-3.00
|
2.00-3.00
|
2.00-3.00
|
---
|
---
|
|
Nitrogen
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
|
Copper
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|

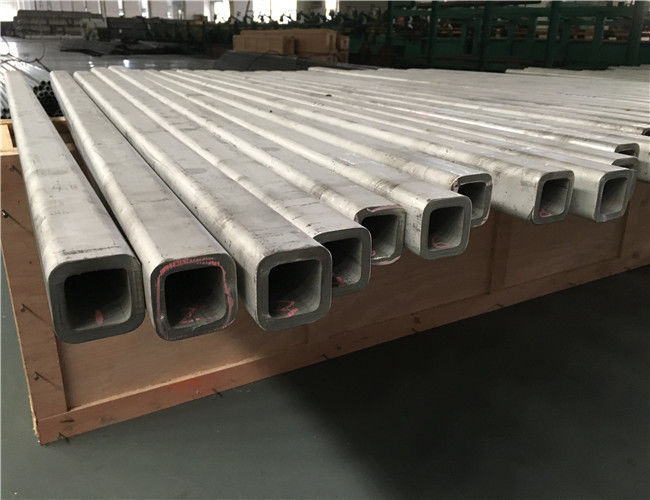

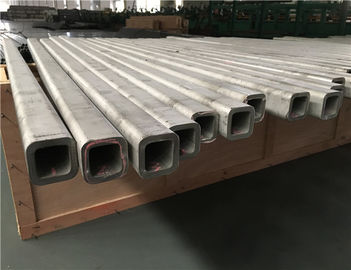

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
