SA178a Annealed ASTM A178 ERW Heat Exchanger Tubes
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | Fin Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASME SA179 |
Detail Information |
|||
Keyword: | Finned Aluminum Tubing | Standard: | ASME SA179 |
---|---|---|---|
Material: | Carbon Steel | Fin Material: | Aluminum, Copper Alloy, Stainless Steel, Carbon Steel |
Finned: | Extruded Fin, Spiral Fin, Embedded G Fin, Low Fin, H Fin, L Fin Etc | Finish: | Annealed |
Length: | 2-12m | Application: | Air Cooler, Charge Air Chiller, Condenser Etc |
High Light: | precision stainless steel tubing,seamless carbon steel tube |
Product Description
Standard
|
ASTM A213, ASTM A178, ASTM A179, ASTM A192 ASTM A106 etc
|
Size
|
OD: 5-304.8mm, WT: 3-24.5mm, Length: 2-12m
|
Fin Material
|
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
|
Finned
|
Extruded fin, Spiral fin, Embedded G fin, Low fin, H fin, L fin etc
|
Base Tube
|
Copper, Aluminum, Steel, Monel, etc
|
Application
|
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc
|
Steel Tube Characteristic:
High Anti-corrosion
Anti-wear
Lower Contact Resistance
Higher Stability
Ability to Prevent Dust
Steel Grade/Steel Material:
Core Tube Material: Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.
Fins Material: Aluminum & Copper & Steel
Fin thickness: 0.2-0.4mm
Fin height: <17mm
Fin Pitch: 1.6-10mm
Steel Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
etc
|
SUS 304TB
|
0.08max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
8.00-11.00
|
18.00-20.00
|
-
|
-
|
SUS 304HTB
|
0.04-0.10
|
0.75max
|
2.00max
|
0.040max
|
0.030max
|
8.00-11.00
|
18.00-20.00
|
-
|
-
|
SUS 304LTB
|
0.03max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
9.00-13.00
|
18.00-20.00
|
-
|
-
|
SUS 310TB
|
0.15max
|
1.50max
|
2.00max
|
0.040max
|
0.030max
|
19.00-22.00
|
24.00-26.00
|
-
|
-
|
SUS 310STB
|
0.08max
|
1.50max
|
2.00max
|
0.040max
|
0.030max
|
19.00-22.00
|
24.00-26.00
|
-
|
-
|
SUS 316TB
|
0.08max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
10.00-14.00
|
16.00-18.00
|
2.00-3.00
|
-
|
SUS 316HTB
|
0.04-0.10
|
0.75max
|
2.00max
|
0.040max
|
0.030max
|
11.00-14.00
|
16.00-18.00
|
2.00-3.00
|
-
|
SUS 316LTB
|
0.03max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
12.00-16.00
|
16.00-18.00
|
2.00-3.00
|
-
|
SUS 316TiTB
|
0.08max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
10.00-14.00
|
16.00-18.00
|
2.00-3.00
|
Ti 5xC%max
|
SUS 317TB
|
0.08max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
11.00-15.00
|
18.00-20.00
|
3.00-4.00
|
|
SUS 317LTB
|
0.03max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
11.00-15.00
|
18.00-20.00
|
3.00-4.00
|
|
SUS 347TB
|
0.08max
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
9.00-13.00
|
17.00-19.00
|
-
|
Nb 10xC%max
|
SUS 347HTB
|
0.04-0.10
|
1.00max
|
2.00max
|
0.040max
|
0.030max
|
9.00-13.00
|
17.00-20.00
|
-
|
Nb 8xC%-1.00
|

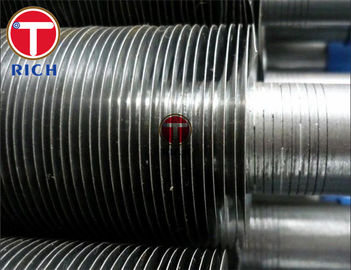

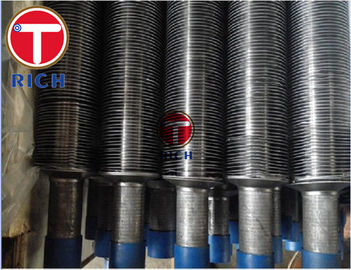

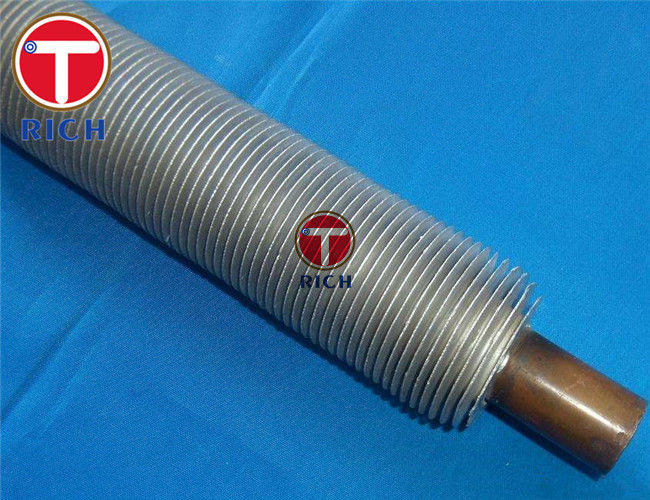

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
