ASME B16.9 316L 304L Pipe Machining Seamless Stainless Steel 180 Degree Elbow

Minimum Order Quantity : 50 piece Price : USD 2.5/ PC
Packaging Details : 1.Plastic Bubble Bags Separately first. 2.Cartons Separately then. 3.Wooden cases at last Delivery Time : 15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20000 pc/month
Brand Name: TORICH Certification: ISO
Model Number: ASME B16.9

Detail Information

Place Of Origin: China Product Name: ASME B16.9 Seamless Stainless Steel 180 Degree Elbow
Keyword: 180 Degree Elbow Standard: ASME B16.9
Surface: Polish Certificate: ISO 9001
Payment: T/T L/C D/P The Material: 316L 304L
Application: Boiler
High Light:

thin wall steel tubing

,

steel mechanical tubing

Product Description

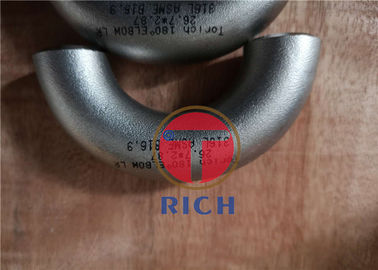

ASME B16.9 316L 304L Seamless Stainless Steel 180 Degree Elbow



Size: seamless 1/2''~12'' (DN15-DN600)

welded 1/2''~12'' (DN15~DN1200)

Standard: ASME B16.9 ; DIN2605 ; JIS



Thickness: SCH5S-SCH160





Material:



317/L ; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L



Applications:



Dairy, food, beer, beverage, pharmacy, cosmetic, etc



DN NPS OD Center to End Center to Center
25 1

32

33.4

25 50
32 1 1/4

38

42.2

32 64
40 1

45

48.3

38 76
50 2

57

60.3

51 102
65 2 1/2

76

73

64 128
80 3 89 76 152
90 3 1/2 101.6 89 178
100 4

108

114

102 204
125 5

133

141.3

139.7

127 254
150 6

168.3

159

165

152 304
200 8

219

216

203 406



1.Superior Surface Finish
The traditional annealing :Open furnace---Oxygen atmosphere---form Scale, tarnish the material,For more than 12m tubes this method is hard to clean inner surface.

A special bright annealing:Closed furnace---Intert atmosphere use noble gases(Nitrogen and argon)Preventing Oxygen to contact with marterial ---Surface finish is clean,bright and precision,which is an excellent starting point for further process,like electro-polishing and mechanical polishing. For more than 12m tubes,this method is much cleaner smoother on both inner and outer surface.



2.Better Mechanical Property

The temperature of furnace can reach more than 1350℃,and the tolerance for setting and real temperature can be controlled whithin +/-2℃,which is impossible for the traditional annealing.



3.Perfect Inspection Method And Inspection Equipment
100%PMI test
100%Hydraulic test
100%Inner cleaned by sponge

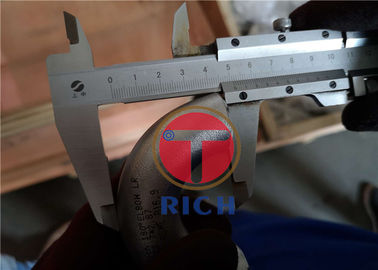

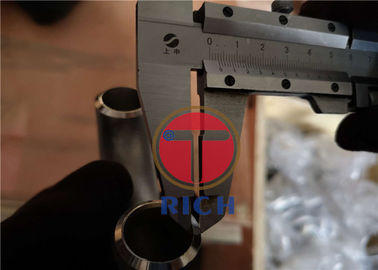

100%Dimension test
100%Surface test

Quality of precision drawn tubing is same to precision rolling.





timg (4)







123

ow to get the sample?


1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.

What is your Payment Term?


1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation


Who are your customers?


1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc


How long will you react on our requirement?


1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!



Any more questions about your doubts, please feel free to send us your emails or call!
