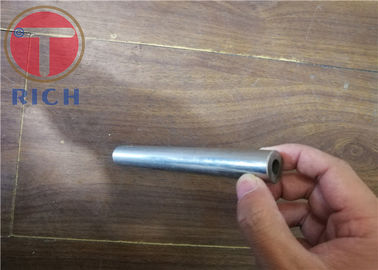

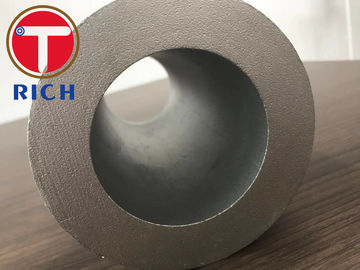

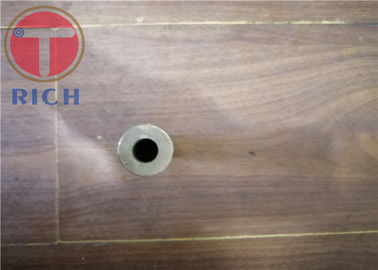

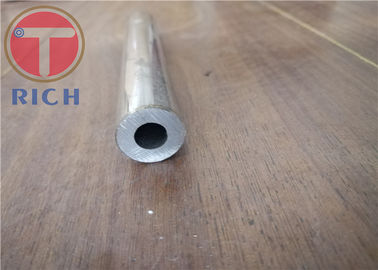

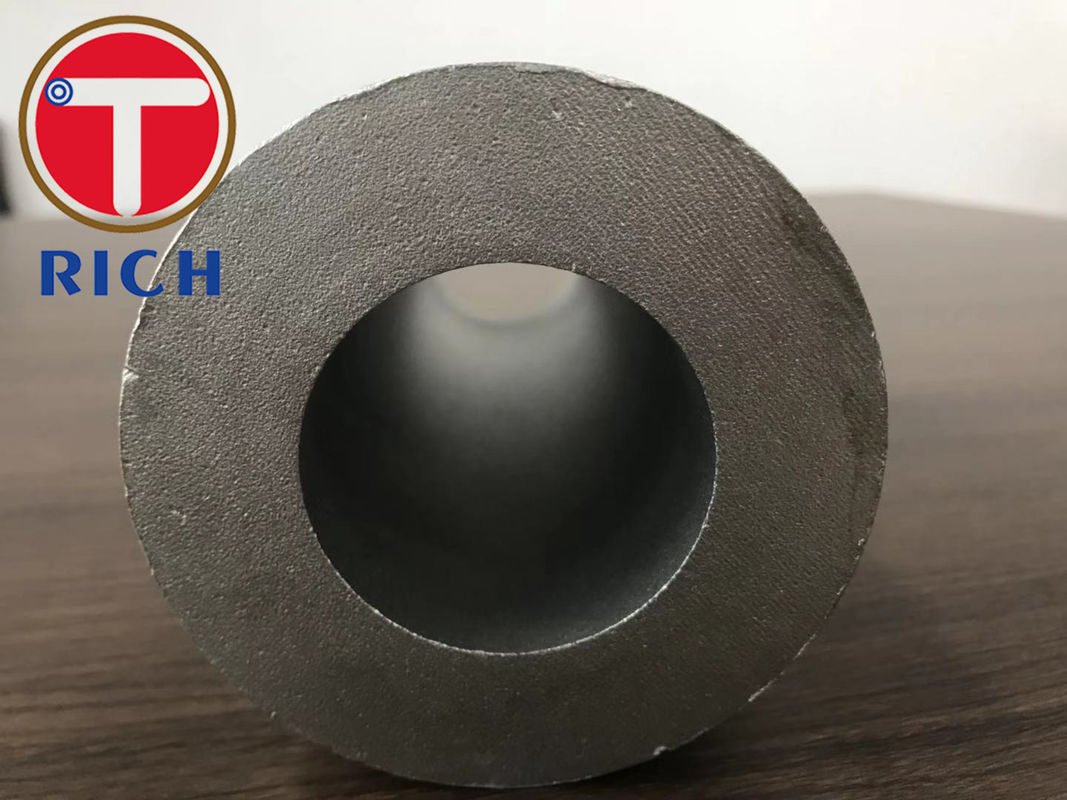

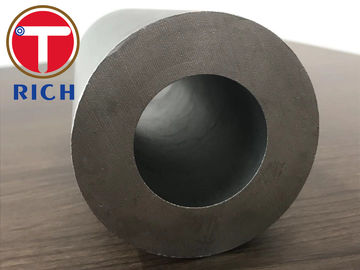

Thick Wall Seamless Stainless Steel Pipe for Mechanical ASTM A511 TP316 304

Minimum Order Quantity : 1000kg Price : negotiable
Packaging Details : In bundles in wooden box Delivery Time : 3-4 weeks
Payment Terms : L/C, D/A, D/P, T/T, Western Union Supply Ability : 5000tons per year
Place of Origin: China Brand Name: Torich
Certification: ISO9001 Model Number: ASTM A511

Detail Information

Standard: ASTM A511 Grade: TP316 304
Production: Cold Drawn Delivery Condition: Pickled And Annealed
Application: Mechanical Type: Stainless Steel Tube
High Light:

stainless steel round tube

,

stainless tube steel

Product Description

Thick Wall Seamless Stainless Steel Pipe for Mechanical ASTM A511 TP316 304

covers seamless stainless tubing foruse in mechanical applications where corrosion-resistant orhigh temperature strength is needed.

covers seamless cold-finished me-chanical tubing and seamless hot-finis hed mech anical tubing insizes up to 123/4 in.[ 325 mm] in outside nominal diameter (forround tubing) with wall thicknesses as required.



Condition

1.Round seamless stain le ss mechanical tubing is generallysupplied in the cold-worked and annealed condition (see 5.2through 5.4). Square, rectangular, or other shapes of tubing aregenerally supplied annealed prior to final cold shaping. If someother condition is desired, details shall be included in the order.

2.The thermal treatment for ferritic and martensitic steelsshall be performed by a method and at a temperature se lectedby the manufacturer unless otherwise specified by the pur-chaser.

3.Unless otherwise specified. all austenitic tubes shall befurnished in the annealed condition. The anneal shall consist ofheating the material to a minimum temperature of 1900 F

[1040 C] and quenching in water or rapidly cooling by othermeans. Alternatively. immediately following hot forming whilethe temperature of the tubes is not less than the specifiedminimum solution treatment temperature. tubes may be indi-vidually quenched in water or rapidly cooled by other means.I This anneal shall precede final cold work. when cold-workedtempers are required.

4. If any controlled microstructural characteristics arerequired, these shall be specified so as to be a guide to the mostsuitable he at treatment.



Tolerance for seamless stainless  tube:

Production MethodSize(mm)Tolerance
Hot Rolling(Extrusion)OD≤140±1.25%
>140±1.0%
WT≤10±12.5%
>10±15%
Cold Drawn(Cold Rolled)OD8~30±0.20mm
>30~50±0.30mm
>50±0.8%
WT1.0~3

+12%

-10%

>3.0

±10%


Length:
The length or general steel tube:
Hot Rolling(Extrusion) tube: 3~12 m
Cold Drawn(Cold Rolled) tube: 3~8 m
The length for water pipe & boiler steel pipe:
Hot Rolling(Extrusion) tube: 4~12 m
Cold Drawn(Cold Rolled) tube: 4~8 m


Bending tolerance:
WT≤15mm, Bending≤1.5mm/m
WT>15mm, Bending≤2.0mm/m

End shape:
Both ends of the pipe should be cut at right angles, and remove burrs

Mechanical property
Heat treatment of longitudinal mechanical properties of steel pipe shall according to the standard.

Material

Tensile strength MPa

Yield Strength MPa

Elongation

%

0Cr18Ni952020535
1Cr19Ni952020535
0Cr19Ni1048017535
1Cr18Ni9Ti55020540
0Cr18Ni12Mo2Ti53020535
0Cr26Ni5Mo259039018
1Cr1741024520
00Cr27Mo41024520
1Cr25Ti44024517


Hardness:
For the tubes which W.T. ≥2 mm, Rockwell hardness tests should be taken.

Tests of the seamless boiler tubes:
1.Bending Test:
The tubes should take the bending test when OD ≤22mm. The bending angle is 90 degrees, and the bending radius is 6 times the outer diameter of the steel tube.

2. Hydraulic test;
Eddy current testing, ultrasonic testing can be used instead of hydraulic tests. When eddy current testing, GB/T 7735-1995 Gr. A should be followed; when ultrasonic testing, GB/T 5777-1996 Gr. C8 should be followed.
3. Flattening test
4. Flanging test
5. Expand test
