Large Diameter Stainless Steel Tube 316ti 316h Astm A312 With Thick Wall

Minimum Order Quantity : 800 Kgs Price : negotiable
Packaging Details : bundle packing with woven bag/wooden or steel frame crate packing Delivery Time : 3-6 Weeks
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 500 Ton per month
Place of Origin: Zhejiang China Brand Name: TORICH
Certification: ISO 9001 Model Number: ASTM A312

Detail Information

Standard:: JIS, ASTM, GB Steel Grade:: 300 Series
Application:: Fluid Pipe,Structure Pipe Outer Diameter:: 6-813mm
Thickness:: 0.5-100mm Material:: Tp304/304l/316/316l
High Light:

stainless tube steel

,

large diameter stainless steel tube

Product Description

ASTM A312 Large Diameter 316Ti 316H Thick Wall Seamless Stainless Steel Tube



Standard: ASTM A213, A269, A312, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941,

Material: TP321 SUS321 AISI321 UNS S32100 1.4541 X6CrNiTi18-10 08X18H10T, TP316/316L/316H, 304/304L/304H, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L (1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)

Nominal Dia: 1/2 "to 32" NB for seamless pipe


Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS

All dimensions are in accordance with ANSI B36.19 and ANSI B36.10

Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)


Length:30 m(Max) or as your requirement

Process: Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube

Finish: Annealed & pickled, bright annealing, polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end


Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection & Test

1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material

2.100% Dimension & Visual Examination

3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test

4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)

5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)

6.Straightness Test (optional)

7.Roughness Test (optional)

8.Intergranular Corrosion Test(optional)

9.Impact Test (optional)

10.Grain Size Determinations (optional)

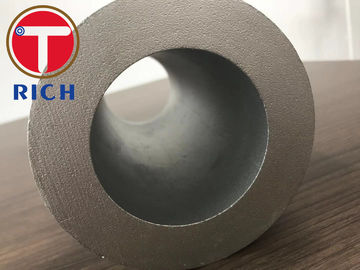

Large Diameter Stainless Steel Tube 316ti 316h Astm A312 With Thick Wall 0

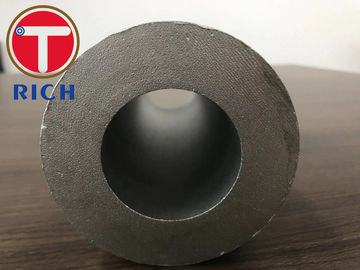

Large Diameter Stainless Steel Tube 316ti 316h Astm A312 With Thick Wall 1

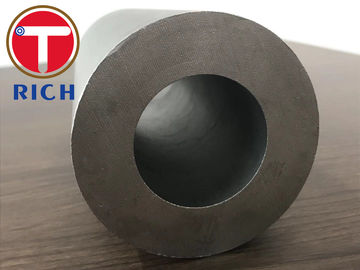

Large Diameter Stainless Steel Tube 316ti 316h Astm A312 With Thick Wall 2



How to get the sample?

1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details

2.Sample charges will be refunded when order is placed.


What is your Payment Term?

1.T/T: 30% deposit in advance, the balance 70% paid before shipment

2.30% down payment, the balance 70% paid against L/C at sight

3.Upon negotiation


Who are your customers?

1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc


How long will you react on our requirement?

1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!

Any more questions about your doubts, please feel free to send us your emails or call!
