ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | Low Carbon Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001, TS16949 | Model Number: | GB/T12771 |
Detail Information |
|||
Keyword: | Stainless Steel Pipe | Standard: | GB/T12771 |
---|---|---|---|
Material: | 1Cr18Ni9, 0Cr18Ni9, 00Cr19Ni10, 0Cr25Ni20, 0Cr17Ni12Mo2 Etc | Shape: | Round |
Surface: | Oiled | OD: | 8mm--630mm |
WT: | 0.3mm - 16mm | Length: | 2-8m |
Usage: | Liquid Delivery | Technic: | Cold Drawn |
High Light: | stainless tube steel,large diameter stainless steel tube |
Product Description
Product Name
|
Stainless Steel Welded Thick Wall Pipe For Liquid Delivery
|
Brand
|
TORICH
|
Standard
|
GB/T12771
|
Reference Standard
|
GB/T222, GB/T223, GB/T228, GB/T241, GB/T245 etc
|
Type
|
Welded
|
Material
|
1Cr18Ni9, 0Cr18Ni9, 00Cr19Ni10, 0Cr25Ni20, 0Cr17Ni12Mo2 etc
|
Delivery Condition
|
H, T, WC, SP
|
Chemical Composition
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
1Cr18Ni9
|
≤0.15
|
≤1.00
|
≤2.00
|
≤0.035
|
≤0.030
|
8.00-10.00
|
17.00-19.00
|
-
|
0Cr18Ni9
|
≤0.07
|
≤1.00
|
≤2.00
|
≤0.035
|
≤0.030
|
8.00-11.00
|
17.00-19.00
|
-
|
00Cr19Ni10
|
≤0.030
|
≤1.00
|
≤2.00
|
≤0.035
|
≤0.030
|
8.00-12.00
|
18.00-20.00
|
-
|
0Cr25Ni20
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.035
|
≤0.030
|
19.00-22.00
|
24.00-26.00
|
|
0Cr17Ni12Mo2
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.035
|
0.030
|
10.00-14.00
|
16.00-18.00
|
2.00-3.00
|
Grade
|
Yeild Strength, Mpa, min
|
Tensile Strength, Mpa, min
|
Elongation, %
|
|
1Cr18Ni9
|
210
|
520
|
35
|
25
|
0Cr18Ni9
|
210
|
520
|
||
00Cr19Ni10
|
180
|
480
|
||
0Cr25Ni20
|
210
|
520
|
||
0Cr17Ni12Mo2
|
210
|
520
|
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

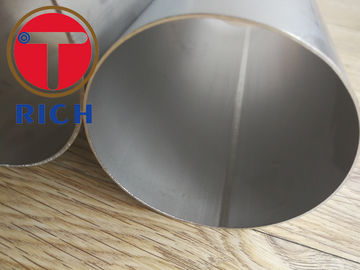

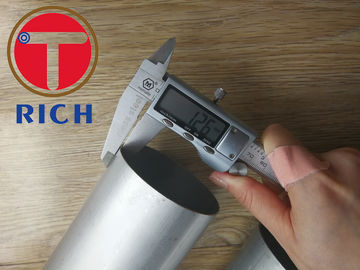

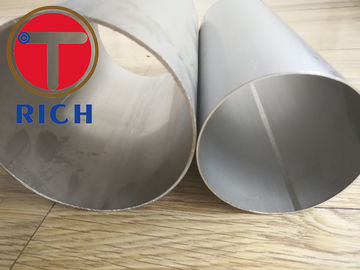

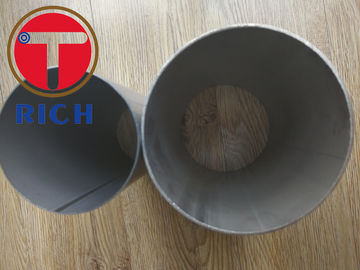

Products Show
Ferritic / Austenitic Duplex Stainless Steel Thinnest Wall Seamless Steel Tube 44.5 X 0.9mm
Tube Astm A789 For Heat Exchangers Stainless For Scientific Research
Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
