Condenser / Heat Exchanger Nickel Alloy Tubing With High Antioxidant Properties
Product Details
alloy steel tube
,seamless alloy steel pipe
TORICH ASTM B163 Seamless Nickel and Nickel Alloy Condenser and Heat-exchanger Tuebs
Standard: ASTM B163
Size Range: OD: 76.2mm and under, WT: Average wall thicknesses of 4.19mm and under
Steel Grade: UNS N02200, UNS N02201, UNS N04400, UNS N06025, UNS N06045, UNS N06600,
UNS N06601, UNS N06603, UNS N06686, UNS N06690, UNS N08120, UNS N08800, UNS N08801, UNS N08810,
UNS N08811, UNS N08825
Permissible Variations in OD and WT :
| Material | Norminal OD, in.(mm) | OD, in.(mm) | WT, % | ||||
| + | - | Average Wall | Minimum Wall | ||||
| + | - | + | - | ||||
| UNS N02200, UNS N02201, UNS N04400 | 1/2 to 5/8(12.7to15.9),excl | 0.005(0.13) | 0 | 12.5 | 12.5 | 25.0 | 0 |
| 5/8 to 1 1/2(15.9to38.1),incl | 0.005(0.13) | 0.005(0.13) | 10.0 | 10.0 | 20.0 | 0 | |
| over 1 1/2 to 3(38.1 to 76.2), incl | 0.010(0.25) | 0.010(0.25) | 10.0 | 10.0 | 22.0 | 0 | |
| UNS N06600, UNS N06601, UNS N06690, UNS N06045, UNS N06025, UNS N06603, UNS N08800, UNS N08810, UNS N08811, UNS N08801, UNS N08825, UNS N08120 | |||||||
| UNS N06686 | 5/8 to 1 1/2(15.9to38.1), incl | 0.0075(0.19) | 0.0075(0.19) | 10.0 | 10.0 | 20.0 | 0 |
| over 1 1/2 to 3(38.1to76.2), incl | 0.010(0.25) | 0.010(0.25) | 10.0 | 10.0 | 22.0 | 0 | |
Referenced ASTM Standard:
B 829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.
B 880 Specification for general requirements for Chemical check analysis limits for Nickel, Nickel alloys and Cobalt alloys.
E 8 Test method for tension testing of metallic materials.
E 18 Test methods for rockwell hardness and rockwell superficial hardness od metallic materials.
E 29 Practice for using significant digits in test data to determine conformance with sprcifications.
E 76 Test methods for chemical analysis of Nickel-Copper alloys.
E 112 Test Methods for determining the average grain size.
E140 Hardness conversion tables for metal.
E 1473 Test methods for chemical analysis of Nickel, Cobalt and high-temperature alloys.
Keywords:
Seamless tube; UNS N02200; UNS N02201; UNS N04400; UNS N06025; UNS N06045; UNS N06600;
UNS N06601; UNS N06603; UNS N06686; UNS N06690; UNS N08120; UNS N08800; UNS N08801;
UNS N08810; UNS N08811; UNS N08825

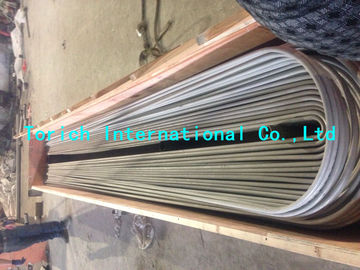

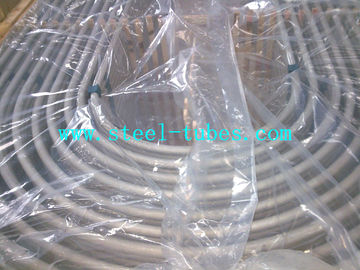

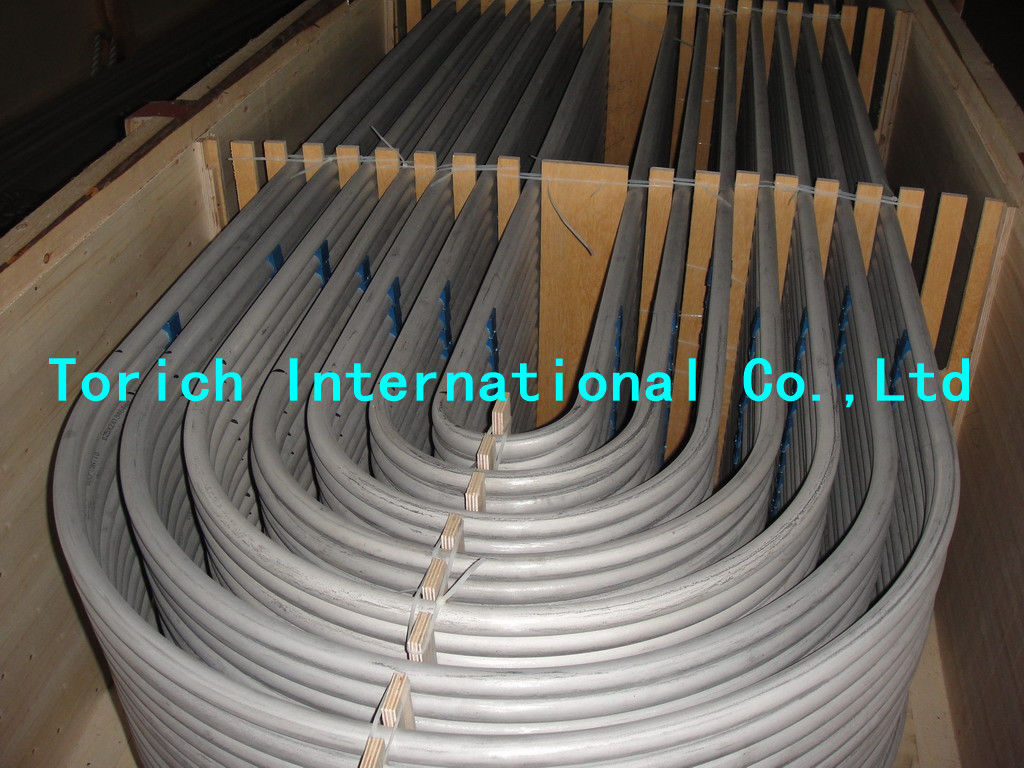

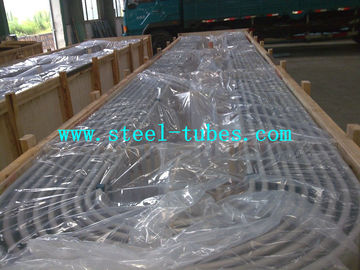

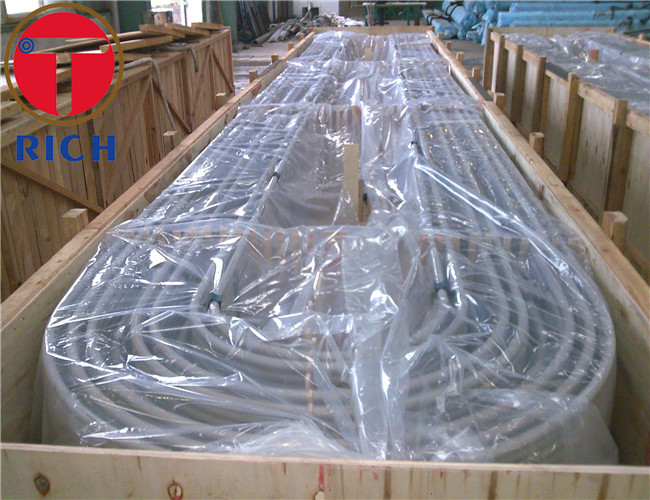

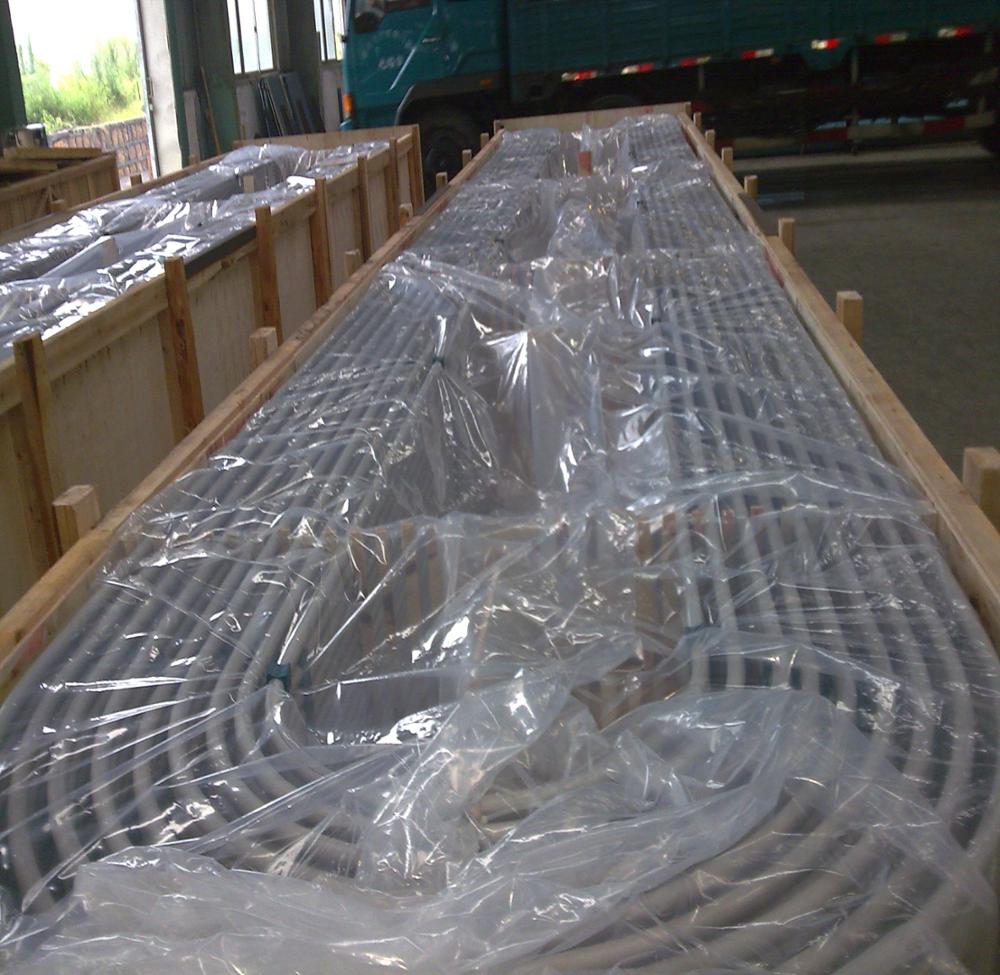

Product Pictures:

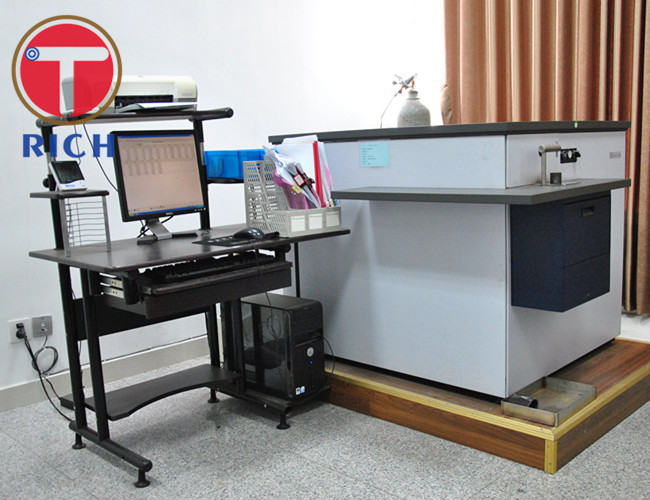

Test:

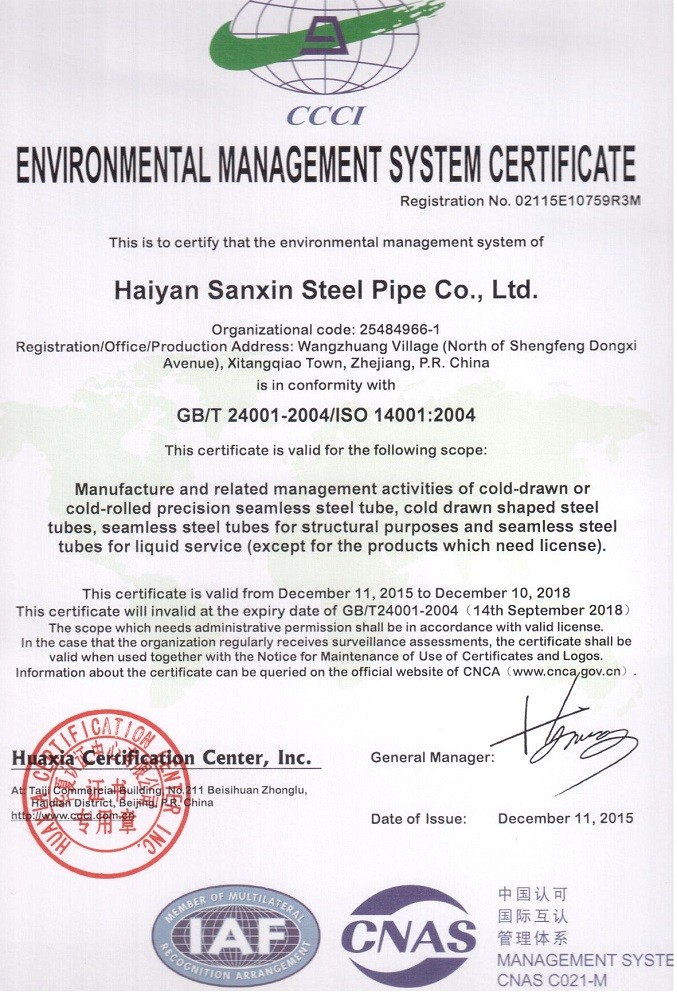

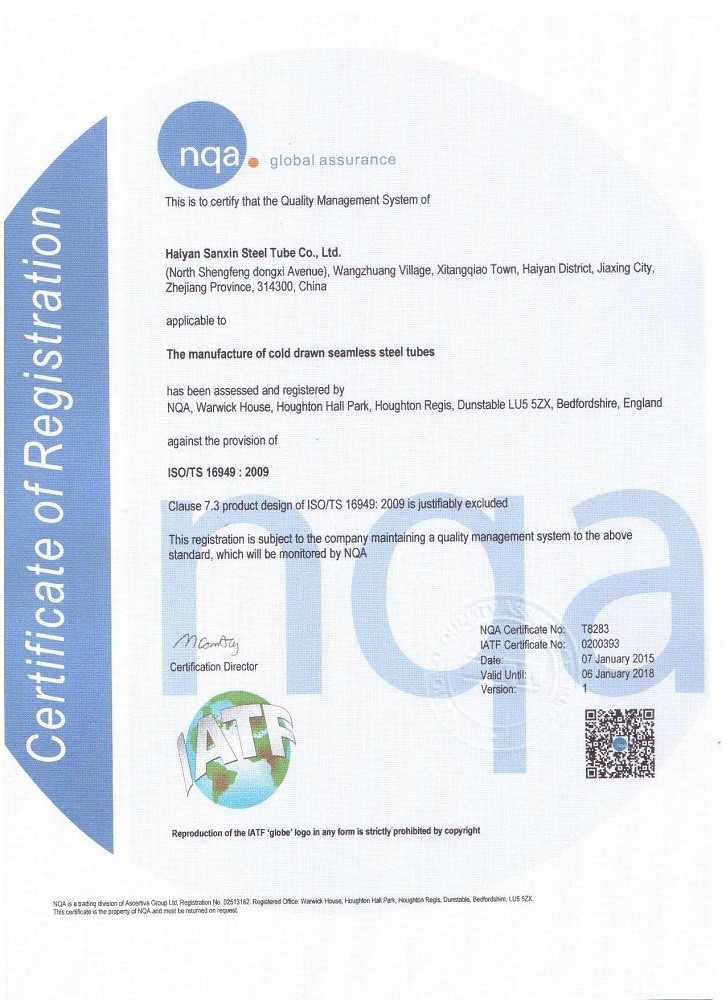

Our Certificate:
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
