products

Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft

Basic Information
Place of Origin: ZheJiang,CHINA
Brand Name: TORICH
Certification: ISO14001:2008,TS16949
Model Number: 41Cr4 40Cr DIN1.7035
Minimum Order Quantity: 2 Ton
Price: negotiable
Packaging Details: packing in wooden boxes or in hexagonal bundles
Delivery Time: 30-35 days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 60000 Ton per year
Detail Information
Product Name: Seamless Cold Drawn Or Cold Rolled Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel , Axle , Shaft Type: Cold Rolling Cold Drawn
Surface: Oiled Material: 41Cr4 40Cr DIN1.7035
Usage: For Gear Wheel , Axle , Shaft Shape: Round Shape
OD: 3-420mm WT: 0.5-50mm
High Light:

alloy steel tube

,

alloy steel seamless tube


Product Description

Seamless Cold Drawn Or Cold Rolled Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel , Axle , Shaft



Alloy Steel Tubes 41Cr4 40Cr DIN1.7035

Seamless Steel Tubes with alloy steel grade 41Cr440CrDIN1.7035

International equivalent:
JIS: SCr440
ASTM: 5140
ISO: 41Cr4


41Cr4DIN1.7035:
C:0.42
Si:0.25
Mn:0.70
Cr: 1.05

40Cr:
C:0.37-0.44
Si:0.17-0.37
Mn:0.50-0.80
Cr:0.80-1.10

Seamless steel tubes with these steel grade could achieve good mechanical properites with quenching and tempering heat treatment (QT), could also heat treatment with annealed.

Application:
Gear wheel, axle, shaft, etc

Mechanical properties:
Tensile strength
≥980 Mpa
Yield strength ≥785 Mpa
Elongation ≥9
Hardness ≤229HBS

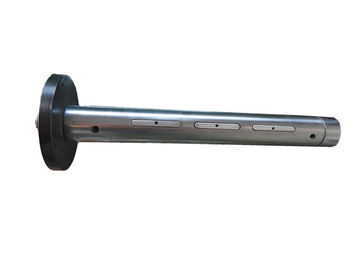

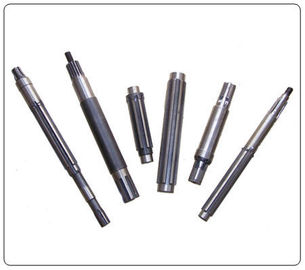

For Application of Shafts and Machinery Parts:
Gear wheel, axle, shaftAlloy steel tubes 41Cr4 40Cr DIN1.7035































Seamless Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel / Shaft Seamless Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel / ShaftSeamless Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel / Shaft Seamless Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel / Shaft




QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.




 Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft 6
