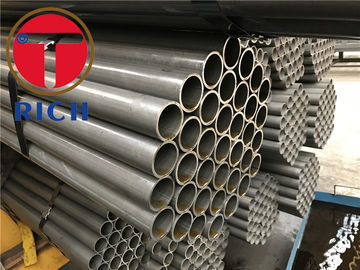

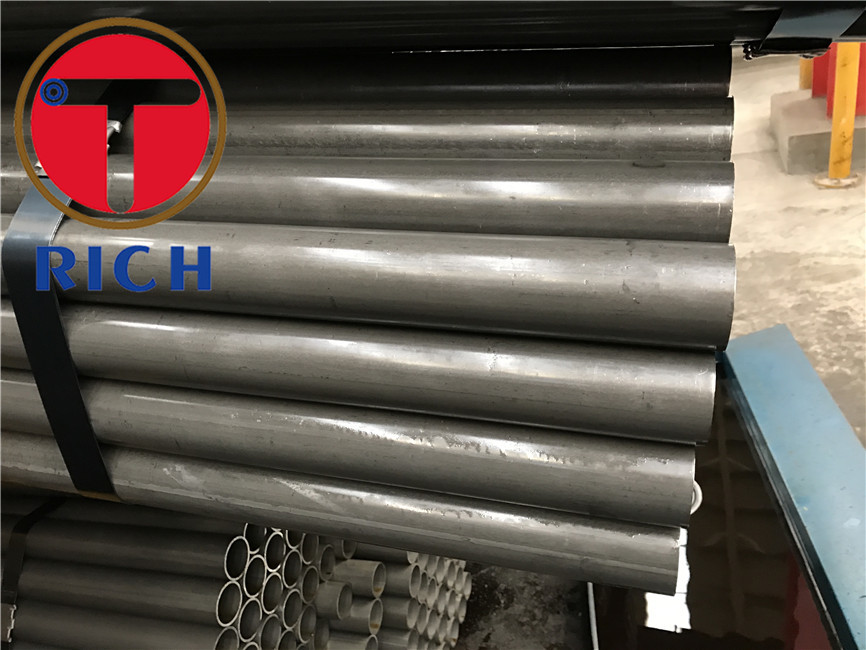

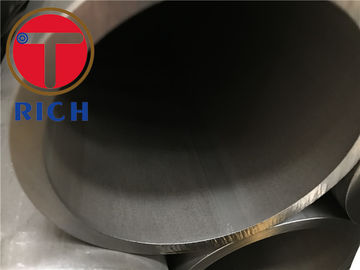

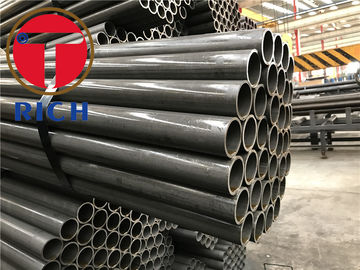

Boiler And Superheater Alloy Steel Tubes Round ASME SA-209 T1 T1a T1b
Product Details
alloy steel tube
,alloy steel seamless tube
Round ASME SA-209 T1 T1a T1b Boiler And Superheater Alloy Steel Tubes
Round ASME SA-209 T1 T1a T1b Boiler And Superheater Alloy Steel Tubes
Material : T1 T1a T1b
Standard: ASTM A209
Size: OD 6-420mm
WT1-50mm
Packaging: In bundles or in wooden boxes
Length: 1-22m
Usage: For boiler heat exchangers.
ISO Certificated Round ASTM A209 T1 T1a T1b Boiler Alloy Steel Tubes
Chemical Composition:
| Element | T1 | T1a | T1b |
| Carbon | 0.10-0.20 | 0.15-0.25 | 0.14max |
| Manganese | 0.30-0.80 | 0.30-0.80 | 0.30-0.80 |
| Phosphorus | 0.025 | 0.025 | 0.025 |
| Sulfur max | 0.025 | 0.025 | 0.025 |
| Silicon | 0.10-0.50 | 0.10-0.50 | 0.10-0.50 |
| Molybdenum | 0.44-0.65 | 0.44-0.65 | 0.44-0.65 |
| Element | T1 | T1a | T1b |
| Tensile strength min Mpa | 380 | 365 | 415 |
| Yield strength min Mpa | 205 | 195 | 220 |
| Elongation min % | 30 | 30 | 30 |
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
-
