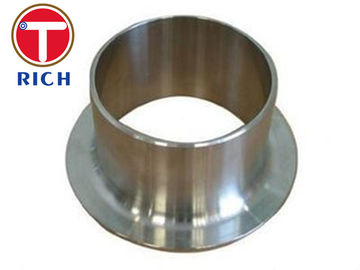

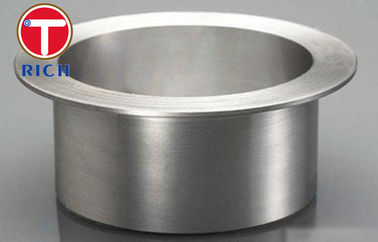

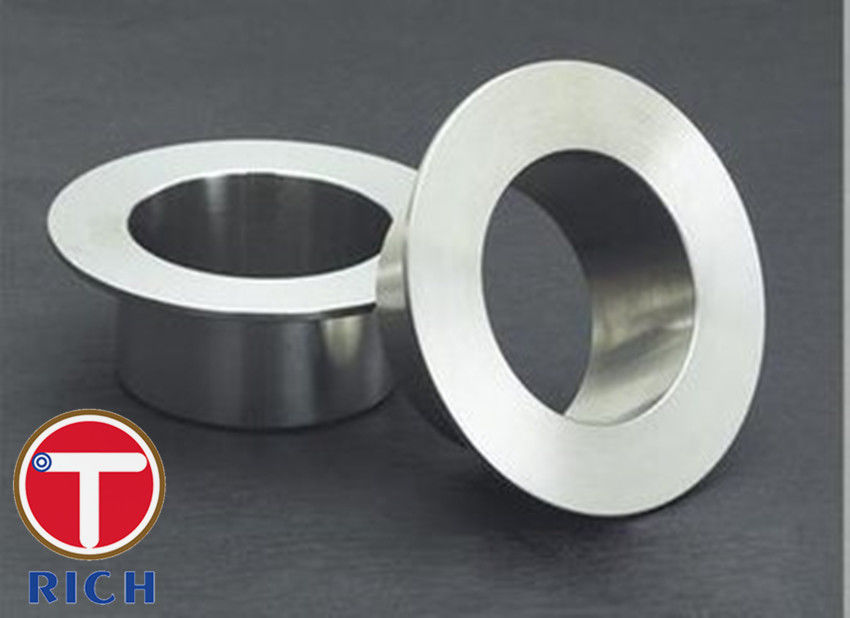

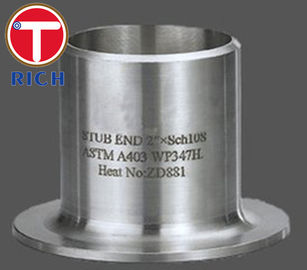

Torich Tube Machining Stainless Steel Stub Ends With Good Concentricity
Product Details
thin wall steel tubing
,low carbon steel pipe
TORICH ASME B16.9 DN15-DN1200 Stainless Steel Stub End
TORICH ASME B16.9 DN15-DN1200 Stainless Steel Stub End
Standard: GB/T 12459,GB/T13401,SH3408,SH3409,DIN2605,JIS B2313
Material: 304/L,316/L,321/L,317/L,347/H,904L,310S,Duplex2205/S31803/F51, 2507/S32750/F53
WT: SCH5S-XXS
OD: 21.3-1220mm
Usage: Machinery Parts
| Norminal diameter | Outside diameter | Length F | Diameter of lap Norminal&Maximun | | (E) Approx weight | |||
| sch5S | ||||||||
| DN | PNS | OD | SP | LP | G | A | B | SP |
| 15 | 1/2 | 21.3 | 50.8 | 76.2 | 35.1 | 3 | 0.75 | 0.049 |
| 20 | 3/4 | 26.7 | 50.8 | 76.2 | 42.9 | 3 | 0.75 | 0.064 |
| 25 | 1 | 33.4 | 50.8 | 101.6 | 50.8 | 3 | 0.75 | 0.082 |
| 32 | 1.1/4 | 42.2 | 50.8 | 101.6 | 63.5 | 5 | 0.75 | 0.109 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 600 | 24 | 610 | 152.4 | 304.8 | 692.2 | 13 | 1.5 | 16.132 |
Characteristic:
Good concentricity High Precision
Good surface quality Stable quality
Good OD and ID tolerance Smooth Roughness
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
TORICH ASME B16.9 DN15-DN1200 Stainless Steel Stub End
-
