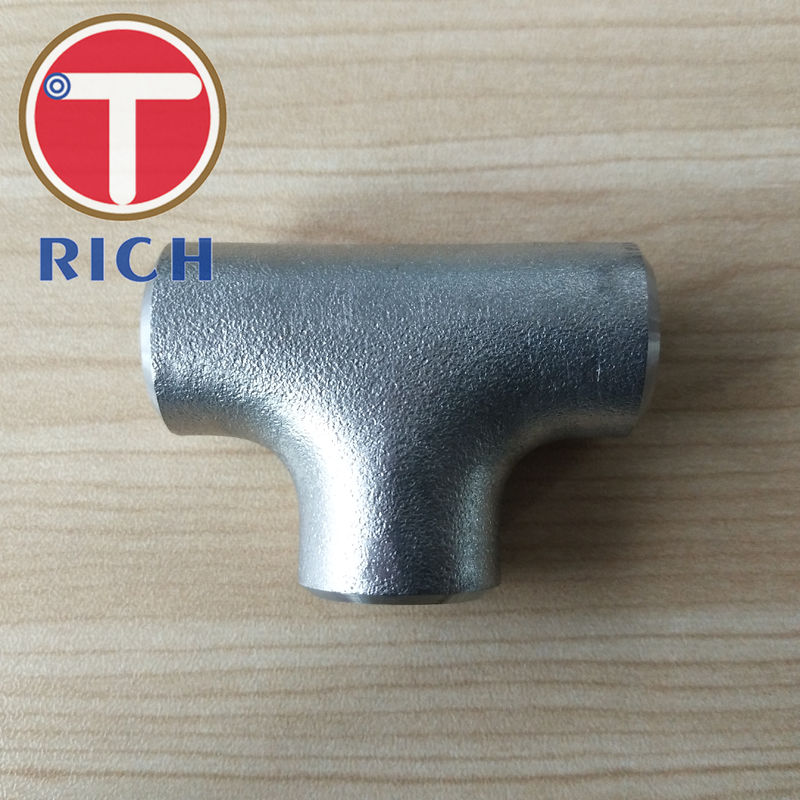

Seamless Stainless Steel Tube Machining Straight Tee For Machinery Parts
Product Details
thin wall steel tubing
,low carbon steel pipe
TORICH GB/T12459 Welded and Seamless Stainless Steel Straight Tee
TORICH GB/T12459 Welded and Seamless Stainless Steel Straight Tee
Standard: GB/T 12459,GB/T13401,SH3408,SH3409, HG/T21635, HG/T21631, ASME B16.9, MSS SP-43, DIN2605,JIS B2313
Welded: 1/2"-48" DN15-DN1200
Seamless: 1/2"-24" DN15-DN600
Material: 304/L,316/L,321/L,317/L,347/H,904L,310S,Duplex2205/S31803/F51, 2507/S32750/F53
WT: SCH5S-XXS
OD: 25-920mm
Usage: Machinery Parts
| Dorminal diameter | OD | Center to the end | Approx weight | ||
| DN | PNS | D1xD2 | C | M | SCH5S |
| 20x20 | 3/4x3/4 | 25X25 26.7X26.7 | 29 | 29 | 0.07 0.08 |
| 25x25 | 1x1 | 32X32 33.4X33.4 | 38 | 38 | 0.11 0.12 |
| 32x32 | 1.1/4x1.1/4 | 38X38 42.2X42.2 | 48 | 48 | 0.19 0.20 |
| 40x40 | 1.1/2x1.1/2 | 45X45 48.3X48.3 | 57 | 57 | 0.35 0.45 |
| ... | ... | ... | ... | ... | ... |
| 900x900 | 36x36 | 920X920 914X914 | 673 | 673 | -- |
Characteristic:
Good concentricity High Precision
Good surface quality Stable quality
Good OD and ID tolerance Smooth Roughness
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
