Torich Oil Cylinders Dom Steel Tubing , Carbon Steel Drawn Over A Mandrel Pipe
Product Details
welded steel pipe
,electric resistance welded steel tube
EN10305-2 DOM Steel Tubing for Oil Cylinders E155 E195 E235 E275 E355
EN10305-2 Welded Precision Cold Drawn Steel Tubes
Applications:
for Auto industry
for machinery use

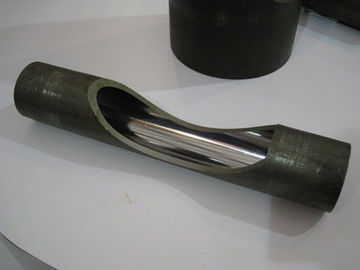

Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders
Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
Steel Grade:
E155, E195, E235, E275, E355.
Steel Grade and Chemical Compositions
| Steel Grade | C | Si | Mn | P | S | |
| Steel Name | Steel Number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
Heat treatment method:
+Cc, +LCc, +SR, +Ad, +N
Note: Special steel grade is also available, according to customer request.
Please specify the steel grade and heat treatment mothod when sending the enquiry!
For Application of:
Test Methods:
Tensile test
Flattening test
Drift expanding test
Dimensional inspection
Roughness measurement
Visual examination
Not-destructive testing
a. Test for longitudinal imperfections-
- Eddy current test - EN10246-3, level E3
- ultrasonic testing - EN10246-7, level U3
b. Leak-tightness
- Non-destructive testing for verification of leak-tightness shall be carried out in accordance with EN10246-1
EN10305 Consists of the following Parts under the general title " Steel tubes for precision applications - Technical delivery conditions "
Part 1: Seamless Cold Drawn Tubes
Part 2: Welded Cold Drawn Tubes
Part 3: Welded Cold Sized Tubes
Part 4: Seamless Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems
Part 5: Welded and Cold Sized Square and Rectangular Tubes
Part 6: Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems
Normative references:
EN10002-1, Metallic materials - Tensile Testing - Part 1: Method of test at ambient temperature
EN10020, Definition and classification of grades of steel
EN10021, General technical delivery requirements for steel and iron products
EN10027-1, Designation systems for steel - Part 1 : Steel names, principal symbols
EN10027-2, Designation systems for steel - Part 2: Numerical systems
EN10052, Vocabulary of heat treatment terms for ferrous products.
EN10204, Metallic products - Types of inspection documents
EN10233, Metallic materials - Tube - Flattening Test
EN10234, Metallic materials - Tube - Drift expanding test
EN10246-1, Non-destructive testing of steel tubes - Part 1: Automatic electromagnetic testing of seamless and welded ( except submerged arc-welded) ferromagnetic steel tubes for verification of hydraulic leak-tightness
EN10246-3, Non-destructive testing of steel tubes - Part 3: Automatic eddy current testing of seamless and welded (except submerged arc-welded) steel tubes for detection of imperfections
EN10246-5, Non-destructive testing of steel tubes - Part 5: Automatic full peripheral magnetics transducer/flux leakage testing of seamless and welded ( except submerged arc-welded) ferromagnetic steel tubes for the detection of longitudinal imperfections
EN10246-7, Non-destructive testing of steel tubes - Qualification and competence of level 1 and 2 non-destructive testing personnel.
EN ISO377, Steel and Steel products - Location and preparation of samples and test pieces for mechanical testing (ISO 377:1997)
EN ISO 2566-1, Steel - Conversion of elongation values - Part 1: Carbon and Low alloy steels (EN102566-1:1984)
EN 10168, Iron and steel products - Inspection documents - List information and description
ENV10220, Seamless and welded steel tubes - Dimensions and masses per unit length
EN10266, Steel Tubes, fittings and structural hollow sections - Definitions and symbols for use in product standards
EN ISO 4287, Geometrical product specifications (GPS) - Surface Texture: Profile method - Terms, definition and surface texture parameters ( ISO 4287:1997)
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
-
