Stainless Steel Tubes Welded Ferritic U Bend Tube For Feedwater Heater GB/T 30065

Minimum Order Quantity : 1 tons Price : negotiable
Packaging Details : In bundles or as per requests Delivery Time : 45-60days after order confirmed
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000 Ton per Year
Place of Origin: China Brand Name: TORICH
Certification: ISO 9001 ISO14001 TS16949 Model Number: GB/T 30065

Detail Information

Characteristic: Welded Ferritic Stainless U Bend Tube Material: 06Cr11Ti, 019Cr18MoTi, 022Cr18Ti Etc
Production Method: Uto-welding From Cold Rolled Steel Strip Package: In Bundles Or As Per Requests
End Protector: Plain Length: Acc To Customer's Requirement
Type: Alloy Tubes MTC: EN10204.3.1
High Light:

stainless steel round tube

,

large diameter stainless steel tube

Product Description

Products Description:

Stainless Steel Tubes Welded Ferritic U Bend Tube For Feedwater Heater GB/T 30065



Steel Grade/Steel Material:

Steel Grade Chemical Composition, %
C Mn P S Si Ni Cr Mo Cu N
06Cr11Ti ≤0.08 ≤1.00 ≤0.030 ≤0.020 ≤1.00 ≤0.50 10.50-11.70 - - -
019Cr18MoTi ≤0.025 ≤1.00 ≤0.030 ≤0.020 ≤1.00 ≤0.60 16.00-19.00 0.75-1.50 - ≤0.025
022Cr18Ti ≤0.030 ≤0.75 ≤0.030 ≤0.020 ≤1.00 ≤0.60 16.00-19.00 - - -
022Cr18NbTi ≤0.030 ≤1.00 ≤0.030 ≤0.015 ≤1.00 ≤0.60 17.50-18.50 - - -
019Cr19Mo2NbTi ≤0.025 ≤1.00 ≤0.030 ≤0.020 ≤1.00 ≤1.00 17.50-19.50 1.75-2.50 - ≤0.030



Mechanical Property:

Steel Grade

Tensile Strength

Rm

MPa

Yield Stength

Rp0.2

MPa

Elongation

A50mm

%

06Cr11Ti 380 170 20
019Cr18MoTi 410 245 20
022Cr18Ti 380 170 20
022Cr18NbTi 430 250 18
019Cr19Mo2NbTi 415 275 20



Delivery Condition:

Annealed and Pickled



Size Range:

OD: 12-32mm
WT: 0.5-2.5mm
Length: acc to customer's requirement

Our regular size: 12.7x0.889mm, 19.05x1.65mm, 19.05x2.11mm etc



Clad Pipes Characteristic:
High strength
Can bend into U tubes
Corrosion-resisting
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE



Production Processs:

Auto-welding from Cold Rolled Steel Strip + Heat Treatment of Annealed and Pickled

Bend with Cold Bending

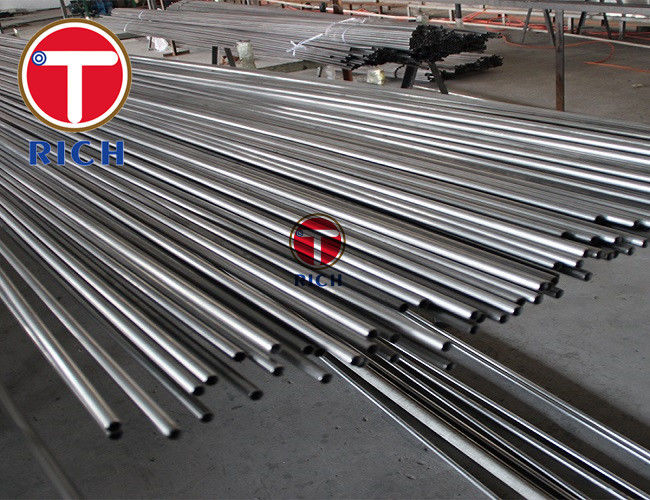

Raw Material Steel:

Stainless Steel Tubes Welded Ferritic U Bend Tube For Feedwater Heater GB/T 30065 0

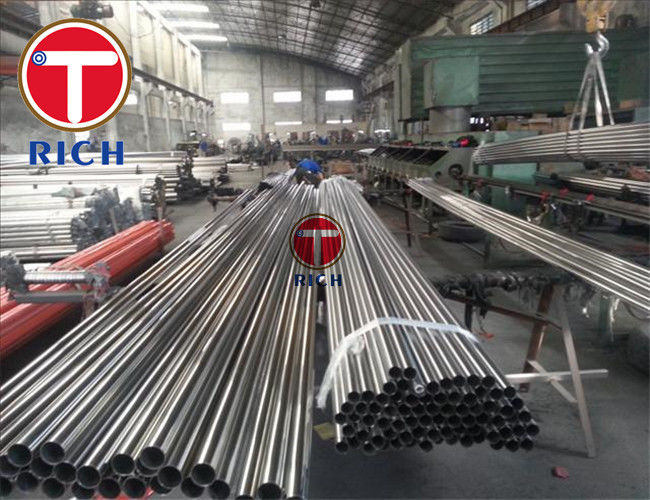

Production Line:

Stainless Steel Tubes Welded Ferritic U Bend Tube For Feedwater Heater GB/T 30065 1

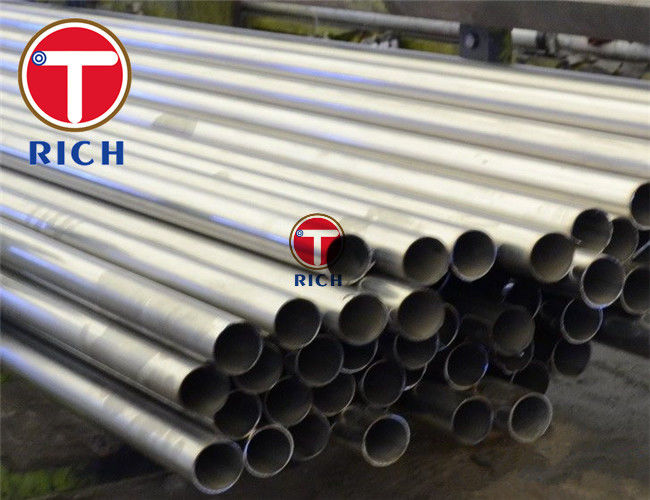

Eddy Current Test and Ultrasonic Test:

Stainless Steel Tubes Welded Ferritic U Bend Tube For Feedwater Heater GB/T 30065 2

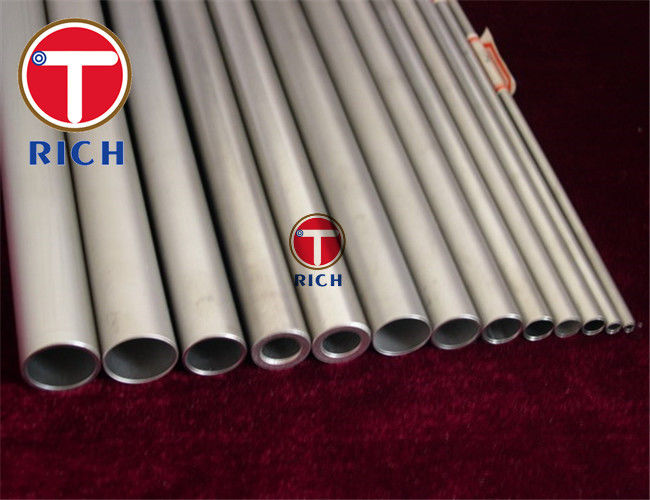

Quality Inspection in lab:

Stainless Steel Tubes Welded Ferritic U Bend Tube For Feedwater Heater GB/T 30065 3
