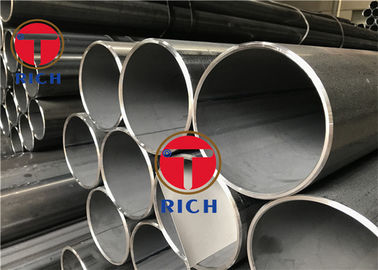

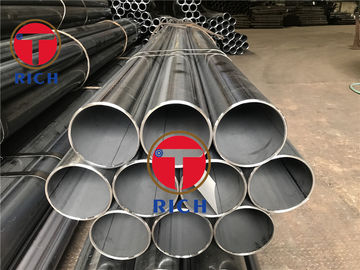

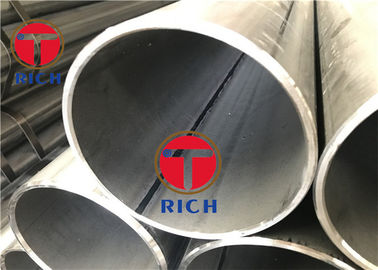

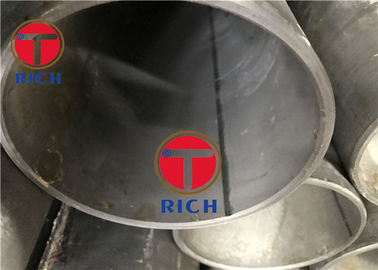

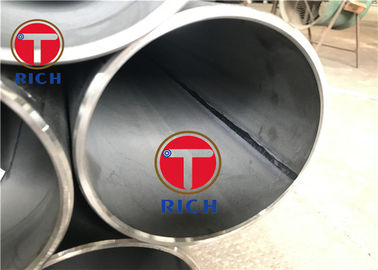

GB/T 14291 Q235A / Q235B Welded Steel Tube for Mine Liquid Service
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 LR KR
Model Number:
GB/T 14291
Trading Properties
Minimum Order Quantity:
2 Tons
Price:
USD 400-700 Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
6000 Tons per Year
Product Summary
GB/T 14291 Welded Q235A/Q235B Steel Tubes for Mine Liquid Service Application:Mine wind, drainage, drainage gas pressure and the pulp conveying with straight seam welded steel pipe Size:L--4~12m OD--21.3-660mm WT--2.5-14mm Grade:Q235A,Q235B,Q295A,Q295B,Q345A,Q345B Manufacture method:High-frequency ...
Product Details
Highlight:
welding steel tubing
,electric resistance welded steel tube
Product Name:
GB/T 14291 Welded Q235A/Q235B Steel Tubes For Mine Liquid Service
Material:
Q235A,Q235B,Q295A,Q295B,Q345A,Q345B
Type:
Welded Steel Tube
Surface:
Oiled
Usage:
Mine Liquid Service
Shape:
Round
Length:
4-12m
OD:
21.3-660mm
WT:
2.5-14mm
Product Description
GB/T 14291 Welded Q235A/Q235B Steel Tubes for Mine Liquid Service

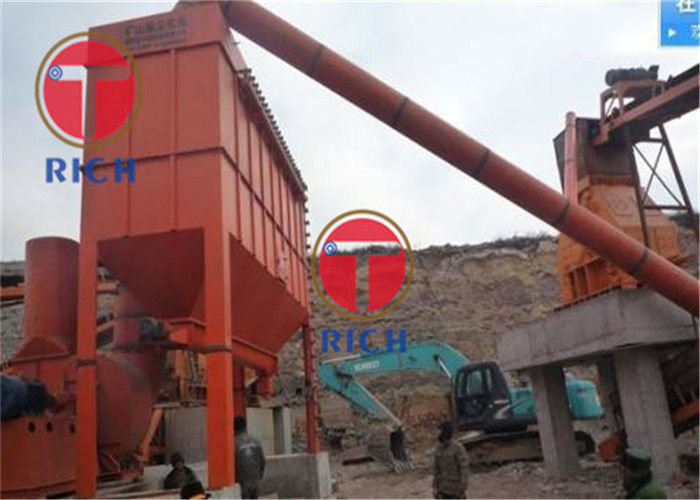

Application:Mine wind, drainage, drainage gas pressure and the pulp conveying with straight seam welded steel pipe
Size:L--4~12m
OD--21.3-660mm
WT--2.5-14mm
Grade:Q235A,Q235B,Q295A,Q295B,Q345A,Q345B
Manufacture method:High-frequency resistance welding
Delivery state:Steel pipe should be straight seam tube flat end light delivery.The supply and demand both sides talks things over, can also according to the weld heat treatment delivery status or other status.
TABLE 1 Allowable deviation of outer diameter and wall thickness
Unit: millimeter
| Nominal outside diameter D | Allowable deviation of outer diameter | Permissible deviation of wall thickness |
| D≤48.3 | ±0.50 | ±10%S |
| 48.3<D≤273 | ±1%D | |
| D>273 | ±0.75%D |
TABLE 2 Mechanical Property
| Grade | Tensile strength
| Lower yield strength | Elongation A% Not less than | |
| D≤168.3 | D>168.3 | |||
| Q235A,Q235B | 375 | 235 | 15 | 20 |
| Q295A,Q295B | 390 | 295 | 13 | 18 |
| Q345A,Q345B | 470 | 345 | 13 | 18 |
| Note : Tensile test arbitration time is based on longitudinal sample. | ||||
TABLE 3 Inspection items, test methods and sampling number of steel pipes
| NO | Inspection project | Sampling method and test method | Sampling quantity |
| 1 | chemical composition | GB/T 20066,GB/T 223,GB/T 4336 | One each furnace(canister) |
| 2 | Tensile test | GB/T 228,GB/T 2975 | One each batch |
| 3 | Tensile test | GB/T 241 | One by one |
| 4 | Ultrasonic examination | GB/T18256 | One by one |
| 5 | Eddy current flaw detection | GB/T 7735 | One by one |
| 6 | Bending test | GB/T 244 | Two per batch |
| 7 | Flattening test | GB/T 246 | Four each roll |
Table4 Outer Diameter,Wall Thicknes,Theoretical Weight and Test Pressure
| Norminal Outer Diameter(D)/mm | Norminal Wall Thickness(S)/mm | Theoretical Weight/(kg/m) | Test Pressure/MPa | ||
| Q235A,Q235B | Q295A,Q295B | Q345A,Q345B | |||
| 21.3 | 2.5 | 1.16 | 15 | 15 | 15 |
| 21.3 | 3 | 1.35 | 15 | 15 | 15 |
| 21.3 | 3.5 | 1.54 | 15 | 15 | 15 |
| 25 | 2.5 | 1.39 | 15 | 15 | 15 |
| 25 | 3 | 1.63 | 15 | 15 | 15 |
| 25 | 3.5 | 1.86 | 15 | 15 | 15 |
| 25 | 4 | 2.07 | 15 | 15 | 15 |
| 26.9 | 2.5 | 1.50 | 15 | 15 | 15 |
| 26.9 | 3 | 1.77 | 15 | 15 | 15 |
| 26.9 | 3.5 | 2.02 | 15 | 15 | 15 |
| 26.9 | 4 | 2.26 | 15 | 15 | 15 |
| 31.8 | 2.5 | 1.81 | 15 | 15 | 15 |
| 31.8 | 3 | 2.13 | 15 | 15 | 15 |
| 31.8 | 3.5 | 2.44 | 15 | 15 | 15 |
| 31.8 | 4 | 2.74 | 15 | 15 | 15 |
| 33.7 | 2.5 | 1.92 | 15 | 15 | 15 |
| 33.7 | 3 | 2.27 | 15 | 15 | 15 |
| 33.7 | 3.5 | 2.61 | 15 | 15 | 15 |
| 33.7 | 4 | 2.93 | 15 | 15 | 15 |
| 38 | 2.5 | 2.19 | 15 | 15 | 15 |
| 38 | 3 | 2.59 | 15 | 15 | 15 |
| 38 | 3.5 | 2.98 | 15 | 15 | 15 |
| 38 | 4 | 3.35 | 15 | 15 | 15 |
| 40 | 2.5 | 2.31 | 15 | 15 | 15 |
| 40 | 3 | 2.74 | 15 | 15 | 15 |
| 40 | 3.5 | 3.15 | 15 | 15 | 15 |
| 40 | 4 | 3.55 | 15 | 15 | 15 |
| 42.4 | 2.5 | 2.46 | 15 | 15 | 15 |
| 42.4 | 3 | 2.91 | 15 | 15 | 15 |
| 42.4 | 3.5 | 3.36 | 15 | 15 | 15 |
| 42.4 | 4 | 3.79 | 15 | 15 | 15 |
| 48.3 | 2.5 | 2.82 | 14.6 | 15 | 15 |
| 48.3 | 3 | 3.35 | 15 | 15 | 15 |
| 48.3 | 3.5 | 3.87 | 15 | 15 | 15 |
| 48.3 | 4 | 4.37 | 15 | 15 | 15 |
| 51 | 2.5 | 2.99 | 13.8 | 15 | 15 |
