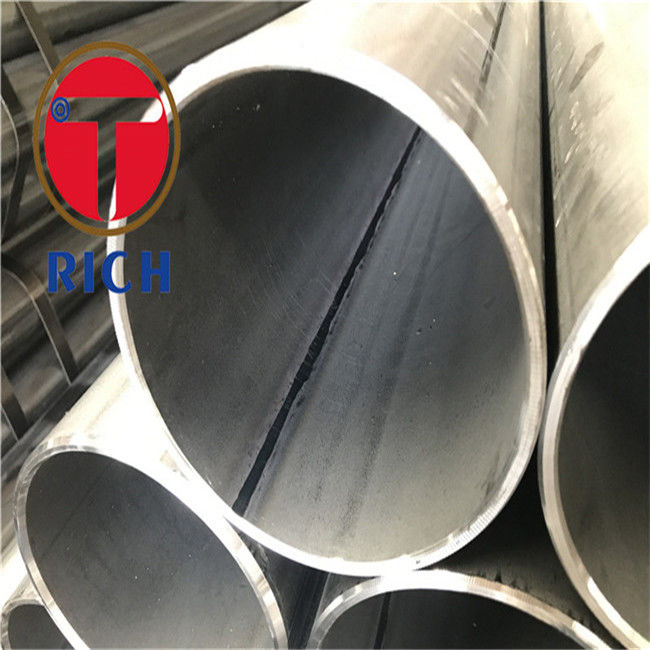

Welded Steel Tubes for Mine Liquid Service GB/T 14291 Q235A Q235B
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 TS 16949
Model Number:
GB/T 14291
Trading Properties
Minimum Order Quantity:
5 Ton
Price:
USD 400-800 / Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
40000 Ton/Year
Product Summary
Welded Steel Tubes for Mine Liquid Service GB/T 14291 Q235A Q235B Spec: Material:Q235A Q235B Q345A Q345B Size Range:OD:4-1200mm WT:0.3-200mm General Length:4-12m Tolerance: According to the following tables or customers’ request. Table 3 Outer Diameter,Wall Thicknes,Theoretical Weight and Test ...
Product Details
Highlight:
welded steel pipe
,welding steel tubing
Product Name:
Welded Steel Tubes For Mine Liquid Service GB/T 14291 Q235A Q235B
Material:
Q235A Q235B Q345A Q345B
Surface:
Galvanized
Application:
Pulp Delivery，gas Draining ，mine Drainage
Shape:
Round
OD:
4-1200mm
WT:
0.3-200mm
Length:
4-12m
Product Description
Welded Steel Tubes for Mine Liquid Service GB/T 14291 Q235A Q235B
Spec:
Material:Q235A Q235B Q345A Q345B
Size Range:OD:4-1200mm
WT:0.3-200mm
General Length:4-12m
Tolerance:
According to the following tables or customers’ request.
Table 3 Outer Diameter,Wall Thicknes,Theoretical Weight and Test Pressure
| Norminal Outer Diameter(D)/mm | Norminal Wall Thickness(S)/mm | Theoretical Weight/(kg/m) | Test Pressure/MPa | ||
| Q235A,Q235B | Q295A,Q295B | Q345A,Q345B | |||
| 21.3 | 2.5 | 1.16 | 15 | 15 | 15 |
| 21.3 | 3 | 1.35 | 15 | 15 | 15 |
| 21.3 | 3.5 | 1.54 | 15 | 15 | 15 |
| 25 | 2.5 | 1.39 | 15 | 15 | 15 |
| 25 | 3 | 1.63 | 15 | 15 | 15 |
| 25 | 3.5 | 1.86 | 15 | 15 | 15 |
| 25 | 4 | 2.07 | 15 | 15 | 15 |
| 26.9 | 2.5 | 1.50 | 15 | 15 | 15 |
| 26.9 | 3 | 1.77 | 15 | 15 | 15 |
| 26.9 | 3.5 | 2.02 | 15 | 15 | 15 |
| 26.9 | 4 | 2.26 | 15 | 15 | 15 |
| 31.8 | 2.5 | 1.81 | 15 | 15 | 15 |
| 31.8 | 3 | 2.13 | 15 | 15 | 15 |
| 31.8 | 3.5 | 2.44 | 15 | 15 | 15 |
| 31.8 | 4 | 2.74 | 15 | 15 | 15 |
| 33.7 | 2.5 | 1.92 | 15 | 15 | 15 |
| 33.7 | 3 | 2.27 | 15 | 15 | 15 |
| 33.7 | 3.5 | 2.61 | 15 | 15 | 15 |
| 33.7 | 4 | 2.93 | 15 | 15 | 15 |
| 38 | 2.5 | 2.19 | 15 | 15 | 15 |
| 38 | 3 | 2.59 | 15 | 15 | 15 |
| 38 | 3.5 | 2.98 | 15 | 15 | 15 |
| 38 | 4 | 3.35 | 15 | 15 | 15 |
| 40 | 2.5 | 2.31 | 15 | 15 | 15 |
| 40 | 3 | 2.74 | 15 | 15 | 15 |
| 40 | 3.5 | 3.15 | 15 | 15 | 15 |
| 40 | 4 | 3.55 | 15 | 15 | 15 |
| 42.4 | 2.5 | 2.46 | 15 | 15 | 15 |
| 42.4 | 3 | 2.91 | 15 | 15 | 15 |
| 42.4 | 3.5 | 3.36 | 15 | 15 | 15 |
| 42.4 | 4 | 3.79 | 15 | 15 | 15 |
| 48.3 | 2.5 | 2.82 | 14.6 | 15 | 15 |
| 48.3 | 3 | 3.35 | 15 | 15 | 15 |
| 48.3 | 3.5 | 3.87 | 15 | 15 | 15 |
| 48.3 | 4 | 4.37 | 15 | 15 | 15 |
| 51 | 2.5 | 2.99 | 13.8 | 15 | 15 |
Processing:
Technical Delivery Conditions:Welding or heat treatment
Widely used in the field of:
Product Images:
