Name: Welded Stainless Steel Tubes for Mechanical Structure GB/T 12770
Brand: TORICH INTERNATIONAL LIMITED
SKU: GB 12770
Price: 1,000.00 USD
Availability: InStock

Home > products > Welded Steel Tube >

Welded Stainless Steel Tubes for Mechanical Structure GB/T 12770

welded steel pipe

electric resistance welded steel tube

Place of Origin:

China

Brand Name:

TORICH

Certification:

ISO 9001 ISO 14001 TS 16949

Model Number:

GB 12770

Request A Quote

Product Details

Product Name:

Welded Stainless Steel Tubes For Mechanical Structure GB/T 12770

Material:

304/304L 316/316L 321 302 310S

Surface:

Polishing

Application:

Mechanical Structure Purpose Or Decration

Shape:

Round

OD:

80-1200mm

WT:

4-100m

Length:

4-12m

Highlight:

welded steel pipe

electric resistance welded steel tube

Payment & Shipping Terms

Minimum Order Quantity

5 Ton

Price

USD 800-1200/Ton

Packaging Details

Packing in wooden box，hexagonal bundles or other seaworthy ways.

Delivery Time

30 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

20000 Ton/Year

S235JR Galvanized Square Steel Pipe Cold Formed Welded Steel Tube For Structural

Get Best Price

video

ASTM A500 Cold Formed Tube Welded Carbon Steel Structural Tubing For Structural Use

Get Best Price

video

GOST 5005 20 Cold Formed Steel Tube Electric Welded Steel Pipes For Cardan Shafts

Get Best Price

video

Large Caliber Seamless Welded Pipe Od 4 - 1200mm Carbon Flat Elliptical Oval Steel Tubes

Get Best Price

86-574-88086983

Contact Now

Product Description

300L~3000L Seamless Steel Tubes for Large Volume Gas Cylinder GB 28884

SPEC:

Material:30CrMoE 42CrMoE 4130X 4142

Size Range:OD:80-1200mm

WT:4-100mm

General Length:4-12m

Tolerance:

According to the following tables or customers’ request.

Category	Size	Tolerance
Outside Diameter(D)	-	±1%D
Minimum Wall Thickness(Smin)	D≤559	+25%Smin 0
Minimum Wall Thickness(Smin)	D>559	+27.5%Smin 0
Wall Thickness(S)	D≤559	+12.5%S -10%S
Wall Thickness(S)	D>559	±12.5%S

Mechanical Properties:

Steel	Tensile Strength	Lower yield strength or specified plasticity elongation	percentage elongation after fracture	Yield ratio	Hardness	-40℃ Shock absorption energy
Grade					HBW	KV2/
	Ra /	ReL or Rp0.2a /	A50mma/	(ReL/Ra orRp0.2/Ra)/%		J
	MPa	MPa	%			Average	Single Sample
30CrMoEb	≥720	≥485	≥20	≤86	≤269	≥40	≥32
42CrMoEc	≥930	≥760	≥16	-	≤330	≥40	≥32
Grade 30CrMoE mechanical property is equivanlent to 4130X
Grade 42CrMoE mechanical property is equivanlent to 4142

Chemical Compositions:

Steel Grade	Tensile Strength Ra / MPa	Lower yield strength or specified plasticity elongation ReL or Rp0.2a / MPa	percentage elongation after fracture A50mma/ %	yield ratio (ReL/Ra or Rp0.2/Ra)/ %	Hardness HBW	-10℃Shock absorption energy KV2/ J
Steel Grade	Tensile Strength Ra / MPa		percentage elongation after fracture A50mma/ %	yield ratio (ReL/Ra or Rp0.2/Ra)/ %	Hardness HBW	Average	Single Sample
30CrMoEb	≥720	≥485	≥20	≤86	≤269	≥40	≥32
42CrMoEc	≥930	≥760	≥16	-	≤330	≥40	≥32

Characteristic:

TORICH QUALITY ASSURANCE

Good surface quality

Good OD and ID tolerance controlled to Technical Standard
Stable quality
100% Eddy Current Test

Processing:

Technical Delivery Conditions:Steel pipe in hot rolling(enlarge) state,cold drawn or cold drawn after heat treatment state delivery.

Widely used in the field of:Manufacturing gas cylinder with 300L~3000L volume

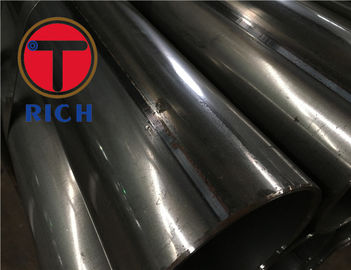

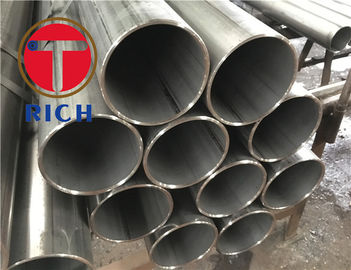

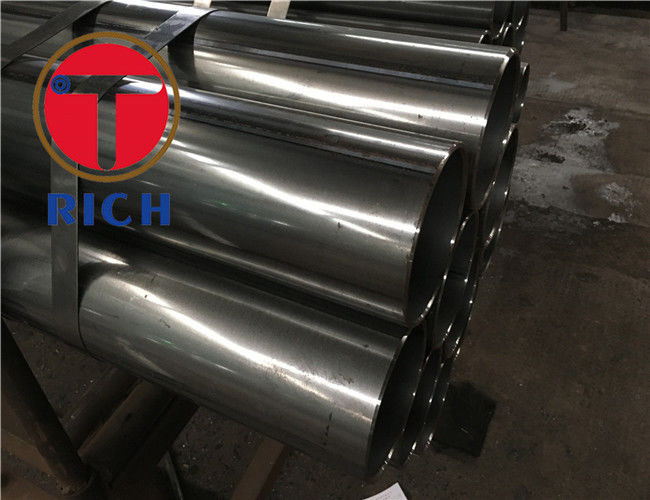

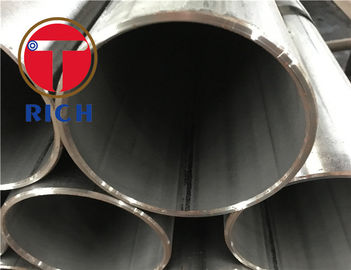

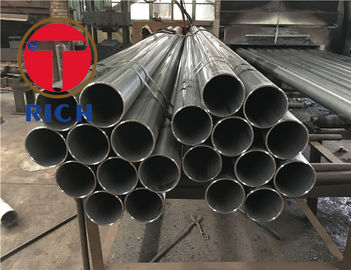

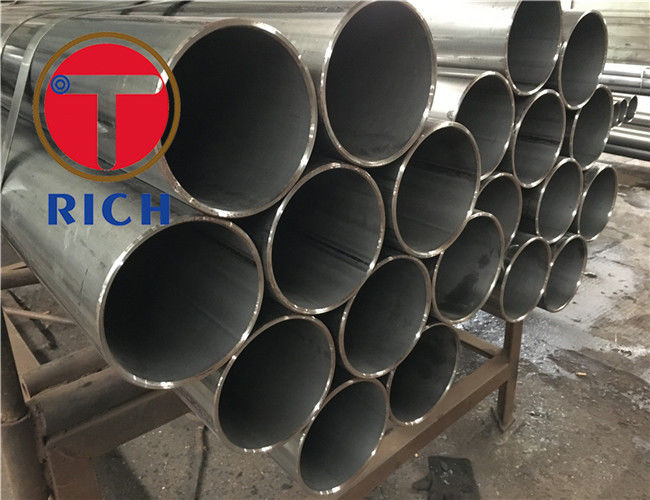

Product Images:
