Cold Drawn Tube Machining
Product Details
steel mechanical tubing
,low carbon steel pipe

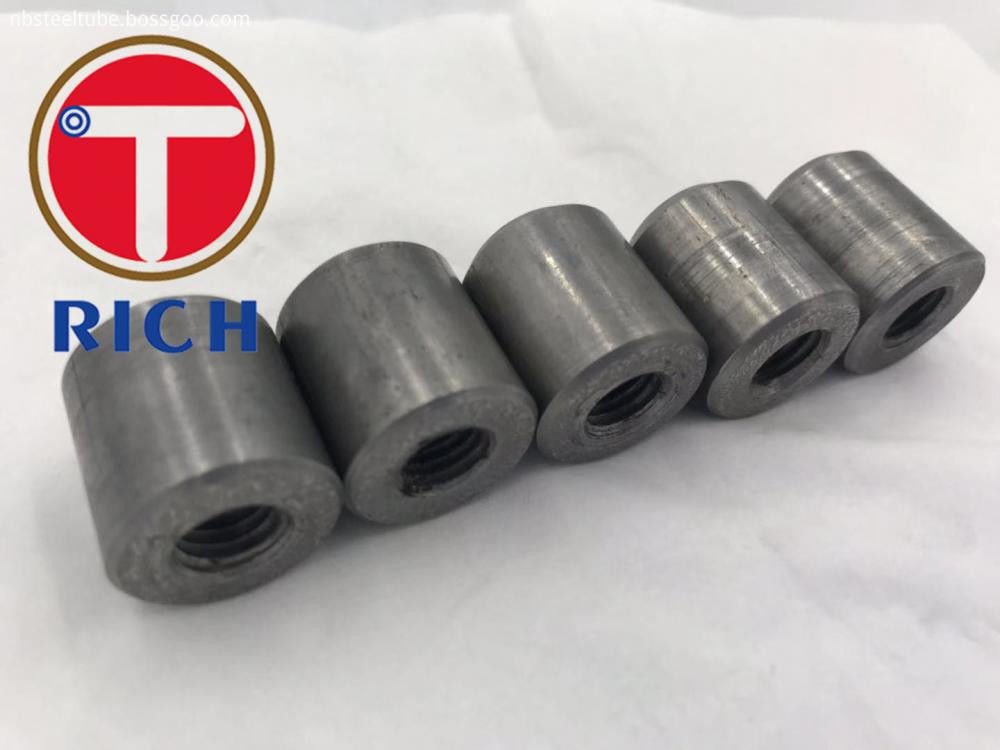

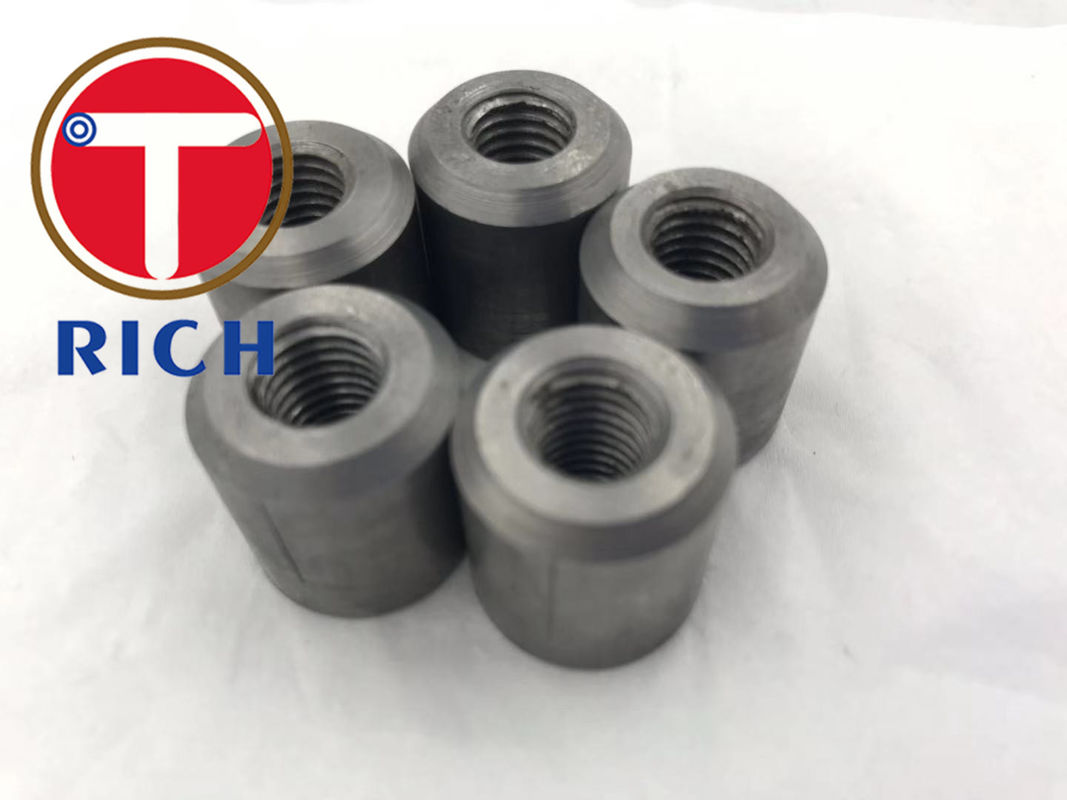

TORICH 32mm Carbon Steel 1045 Screw Connecting Rebar Tapered Thread Rebar Coupler
Threaded Rebar Couplers are a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars.
Mechanical couplers to splice reinforcing bar has been regarded as a means of reducing the use of long bars and reduce wastage of expensive rebar's due to Splice lapping of the ends in the conventional methods of joining rebar's. More recently, engineers and installers have recognized the benefits of using couplers to increase construction speed, improve productivity and simplify design details. There are numerous mechanical splicing systems available for use on rebar, many with elements of strength and/or operational compromise
Features:
Couplers are designed and manufactured in compliance with ACI318, JGJ107, UBC1997, BS8110, NF35-20-1, DIN1045, ISO/WD 15835 (Draft).
Under Full-Tension the bar breaks during tensile tests, but Coupler the remains unbroken.
Easy to operate and maintain, High production efficiency and fast installation, no need for skilled technicians.
The splices can be produced in advance saving valuable construction time.
Inexpensive to purchase, maintain and repair.
Couplers and threaded bars are protected by plastic cover.
Full traceability of material origin and production batch.
|
Name of commodity |
Rebar Size mm |
Length (±2.0mm) |
Outside Diameter (±0.5mm) |
Thread Pitch (mm) |
Thread Angle (°) |
Weight (kg) |
| Rebar coupler | D16 | 40 | 24 | 2.5 | 75 | 0.079 |
| D18 | 45 | 27 | 2.5 | 75 | 0.112 | |
| D20 | 50 | 31 | 2.5 | 75 | 0.173 | |
| D22 | 55 | 33 | 2.5 | 75 | 0.205 | |
| D25 | 60 | 37 | 3.0 | 75 | 0.276 | |
| D28 | 65 | 41 | 3.0 | 75 | 0.360 | |
| D32 | 70 | 47 | 3.0 | 75 | 0.512 | |
| D36 | 85 | 53 | 3.0 | 75 | 0.793 | |
| D40 | 90 | 58 | 3.0 | 75 | 0.979 | |
| Coupler grade | Yield strength :485Mpa, Tensile strength :630Mpa | |||||
| Material | 45# High quality carbon steel | |||||
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
-
