Wrought Austenitic Seamless Tube Manufacturing Stainless Steel Astm A403

Wrought Austenitic Seamless Tube Manufacturing Stainless Steel Astm A403

thin wall steel tubing

steel mechanical tubing

Place of Origin:

ZHEJIANG, CHINA

Brand Name:

TORICH

Certification:

ISO9001, ISO14001, TS16949

Model Number:

ASTM A403

Contact Us
Request A Quote
Product Details
Keyword:
Stainless Steel Piping Fitting
Grade:
WPXM-19, WP304, WP304L, WP309, WP310S, WP316, WP316L Etc
Surface:
Surface
Delivery Condition:
Solution Annealed
Type:
Seamless/Welded
Usage:
Pressure Piping A Pplication
Highlight:

thin wall steel tubing

,

steel mechanical tubing

Payment & Shipping Terms
Minimum Order Quantity
5Tons
Price
USD10-100/PC
Packaging Details
Stainless Steel Piping Fittings are packed in wooden boxes in seaworthy packing.
Delivery Time
30-45 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000Tons per Year
Product Description
Products Description

TORICH ASTM A403 Wrought Austenitic Stainless Steel Piping Fitting
Product Name
TORICH ASTM A403 Wrought Austenitic Stainless Steel Piping Fitting
Brand
TORICH
Standard
ASTM A403
Reference Standard
A351/A351M,A743/A743M,A960/A960M,E112,E165,ASME B16.9,MSS SP-25 etc
Grade
WPXM-19, WP304, WP304L, WP309, WP310S, WP316, WP316L etc
Type
Seamless/Welded
Test
Hydrostatic Test
Used
Pressure Piping application



Chemical Requirements

Grade
C
Mn
P
S
Si
Ni
Cr
Mo
Ti N
WPXM-19
0.06
4.0-6.0
0.045
0.030
1.00
11.5-13.5
20.5-23.5
1.50-3.00
--- 0.20-0.40
WP304
0.08
2.00
0.045
0.030
1.00
8.0-11.0
18.0-20.0
---
--- ---
WP304L
0.030
2.00
0.045
0.030
1.00
8.0-12.0
18.0-20.0
---
--- ---
WP309
0.20
2.00
0.045
0.030
1.00
12.5-15.0
22.0-24.0
---
--- ---
WP310S
0.08
2.00
0.045
0.030
1.00
19.0-22.0
24.0-26.0
---
--- ---
WP316
0.08
2.00
0.045
0.030
1.00
10.0-14.0
16.0-18.0
2.00-3.00
--- ---
WP316L
0.030
2.00
0.045
0.030
1.00
10.0-14.0
16.0-18.0
2.00-3.00
--- ---



Tensile Requirement

Grade
Yield Strength, min, ksi [MPa]
Tensile Strength, min, ksi [MPa]
304,304LN,304H,309,310,316,316LN316H,317
317L,321,321H,347,347H,348,348H,S31725
30 [205]
75 [515]
304L,316L
25 [170]
70 [485]
304N,316N,S31726
35 [240]
80 [550]
XM-19
55 [380]
100 [690]
S31254
44 [300]
94 [650]-119[820]
S33228
27 [185]
73 [500]
S34565
60 [415]
115 [795]


QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

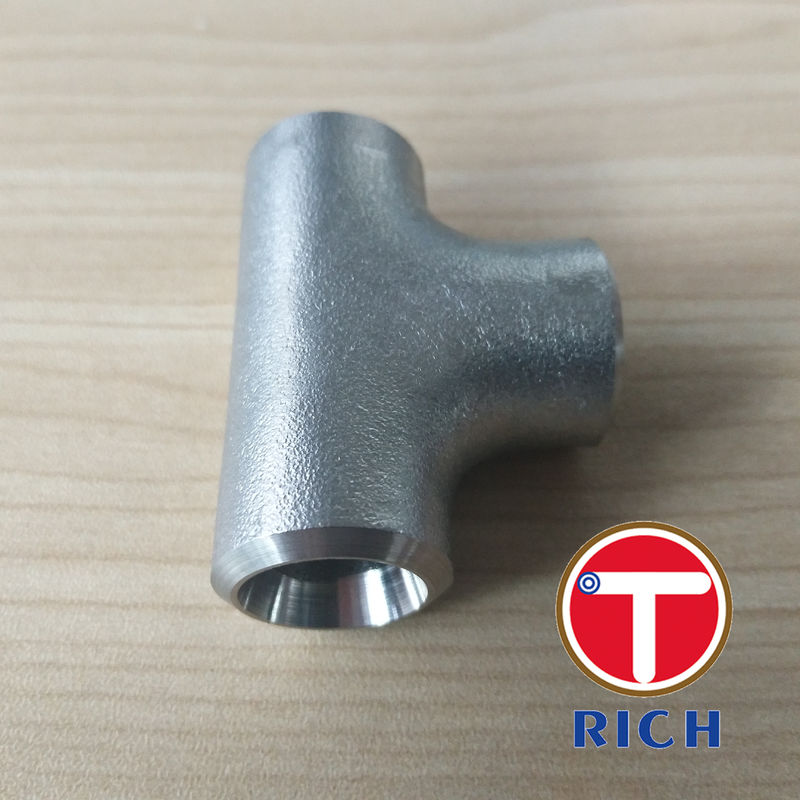

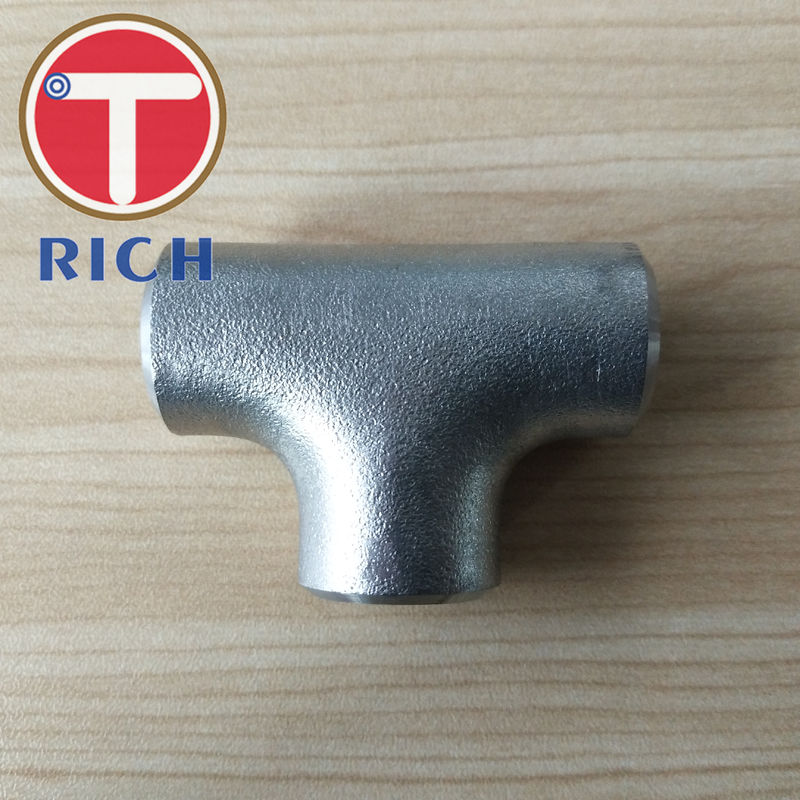

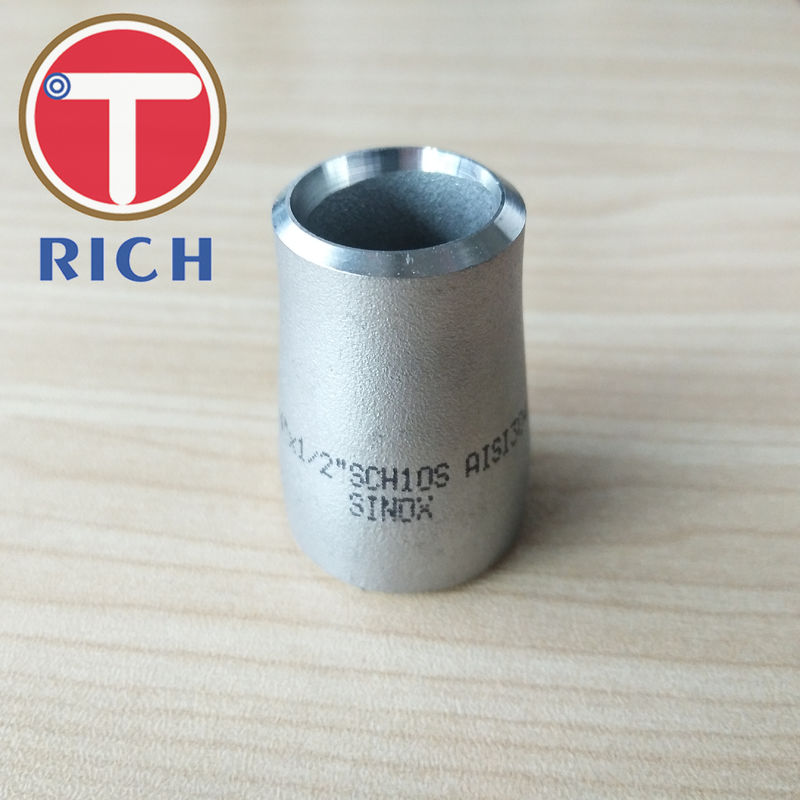

Products Show

Wrought Austenitic Seamless Tube Manufacturing Stainless Steel Astm A403 0Wrought Austenitic Seamless Tube Manufacturing Stainless Steel Astm A403 1
