Weldable Nickel Base Alloy Steel Pipe Make Pumps / Valves Creep - Resistant
Product Details
inconel 600 tube
,inconel 601 tube

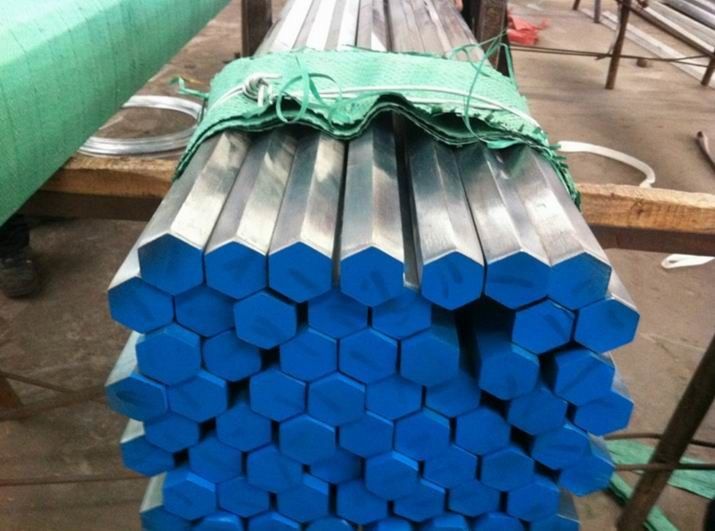

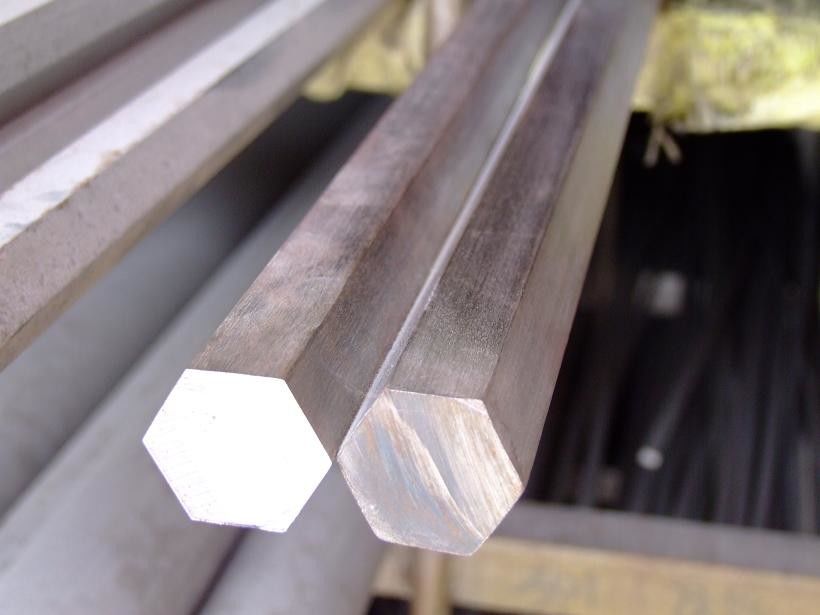

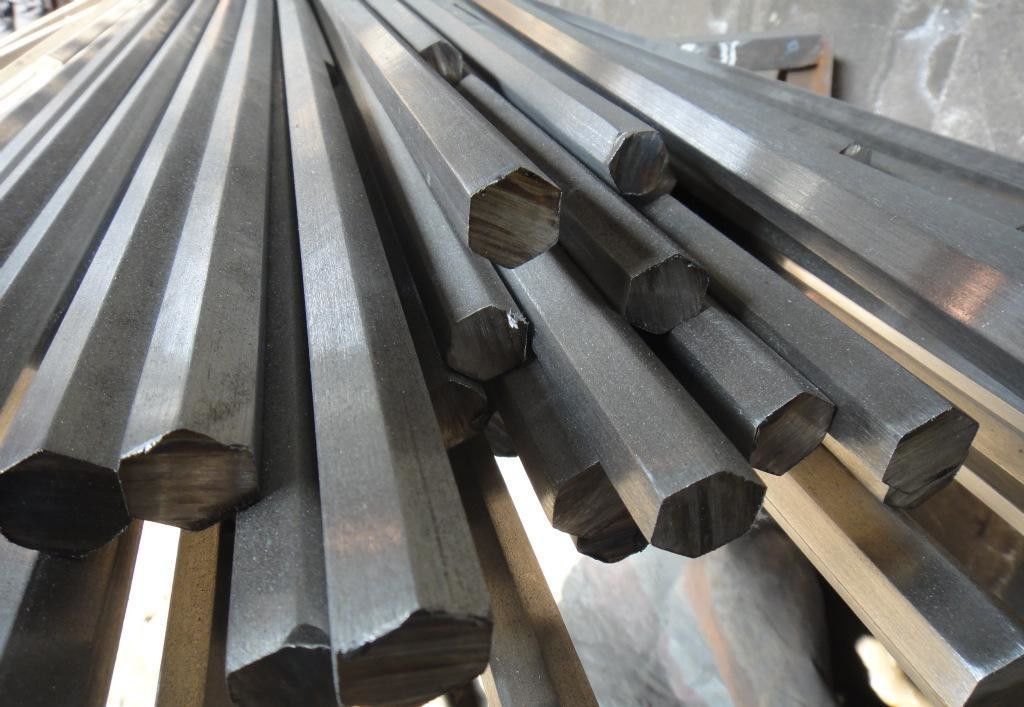

Nickel Base Alloy Inconel 625 Hex Bar Tube Make Pumps and Valves and Other High Pressure Equipment.
Inconel Alloy 625
(UNS designation N06625) is a nickel-based superalloy that possesses
high strength properties and resistance to elevated temperatures. It also demonstrates
remarkable protection against corrosion and oxidation. Its ability to withstand high stress
and a wide range of temperatures, both in and out of water, as well as being able to resist
corrosion while being exposed to highly acidic environments makes it a fitting choice for
nuclear and marine applications.
Inconel 625 was developed in the 1960s with the purpose of creating a material
that could be used for steam-line piping. Some modifications were made to its
original composition that have enabled it to be even more creep-resistant and
weldable. Because of this, the uses of Inconel 625 have expanded into a wide range
of industries such as the chemical processing industry, and for marine and nuclear
applications to make pumps and valves and other high pressure equipment.
Nickel Alloy Chemical Composition:
| UNS | Chemical ,% | ||||||||
| C max | Si max | S max | Mn max | Ni | P | V | W | |||
| N02200 | 0.15 | 0.35 | 0.01 | 0.35 | 99 min | … | … | … | |
| N02201 | 0.02 | 0.35 | 0.01 | 0.35 | Ni+Co 99min | … | … | … | |
| 10276 | 0.01 | 0.08 | 0.03 | 1.0 | Balance | 0.04max | 0.35max | 3.0-4.5 | |
| Grade | UNS | Tensile Strength Min Ksi(Mpa) | Yield Strength Min Ksi(Mpa) | Elongation in 2 in or 50 mm ,Min,% | ||||||
| S04400 | 70(483) | 28(193) | 35 | ||||||
| S06600 | 80(552) | 35(241) | 30 | ||||||
| S06601 | 80(552) | 30(207) | 30 | ||||||
| S06625 | 120(827) | 60(414) | 30 | ||||||
| UNS N08800 | 75(520) | 30(205) | 30 | ||||||
| UNS N08810 | 85(586) | 35(241) | 30 | ||||||
| UNS N08811 | 65(448) | 25(172) | 30 | ||||||
| UNS N08825 | 85(586) | 35(241) | 30 | ||||||
| UNS N02200 | 55(379) | 15(103) | 40 | |||||||
| UNS N02201 | 50(345) | 12(83) | 40 | |||||||
| UNS N10276 | 50(690) | 41(283) | 40 | ||||||
Note :
Inconel 625 : Gr1: Annealed at 871ºC min
Gr2:Solution annealed at 1090 ºC min with or without subsequent stabilization.
Available Size:
OD: 6.53-219.1 mm
WT: 0.89-12.7 mm
L: 20 meter Max
Available Specification :
ASTM B161 /B 163/ B 165/ B 167/ B 407/ B 423/ B 444/ B 751/ B 775/ B 829
ASTM SB161 /SB 163/ SB 165/ SB 167/ SB 407/ SB 423/ SB 444/ SB 751/ SB 775/ SB 829
Delivery Condition:
- Annealed and pickled
- Bright and Annealed
- Annealed and Pickled + Polishing
- Bright and Annealed + Polishing
-
