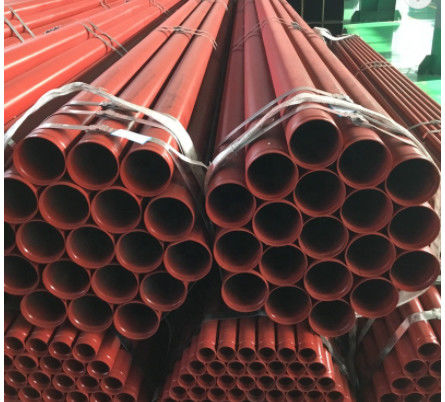

UL FM Plastic Lined Steel Fire Sprinkler Piping

ASTM A795 (BLACK & GALVANISED)

N.D. O.D. SCH 10 SCH 30/40

WALL THICKNESS NOMINAL WEIGHT WALL THICKNESS NOMINAL WEIGHT

(mm) (inch) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft)

15 1/2 21.30 0.84 ---- ---- ---- ---- 2.77 0.109 1.27 0.85

20 3/4 26.70 1.05 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13

25 1 33.40 1.32 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68

32 1-1/4 42.20 1.66 2.77 0.109 2.69 1.81 3.56 0.14 3.39 2.27

40 1-1/2 48.30 1.90 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72

50 2 60.30 2.38 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66

65 2-1/2 73.00 2.88 3.05 0.12 5.26 3.53 5.16 0.203 8.64 5.80

80 3 88.90 3.50 3.05 0.12 6.46 4.34 5.49 0.216 11.29 7.58

90 3-1/2 101.60 4.00 3.05 0.12 7.41 4.98 5.74 0.226 13.58 9.12

100 4 114.30 4.50 3.05 0.12 8.37 5.62 6.02 0.237 16.09 10.80

125 5 141.30 5.56 3.4 0.134 11.58 7.78 6.55 0.258 21.79 14.63

150 6 168.30 6.63 3.4 0.134 13.85 9.30 7.11 0.28 28.29 18.99

200 8 219.10 8.63 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72

250 10 273.10 10.75 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
