Plain Finned Aluminum Tubing Non - Secondary , Seamless Heat Exchanger Tubes For Exchanger

Basic Information
Place of Origin: China
Brand Name: TORICH
Certification: ISO
Model Number: ASTM A179
Minimum Order Quantity: 1 Ton
Price: USD 800-1000 Ton
Packaging Details: In wooden boxes packaging
Delivery Time: 30-45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Tons/Year
Detail Information
Secondary Or Not: Non-secondary Product Name: ASTM A179 Carbon Steel Aluminum Fin Tube For Exchanger For Exchanger
Keyword: Fin Tube Dimension: OD:16-140mm WT:2-10mm Length:1-25m
Fin Material: Aluminum End Protector: Plain
Brand: TORICH STEEL GRADE: Per Requested
Packing: Wooden Box Usage: Exchanger
High Light:

high carbon steel tube

,

heat exchanger tubes


Product Description

ASTM A179 Carbon Steel Aluminum Fin Tube for Exchanger for Exchanger

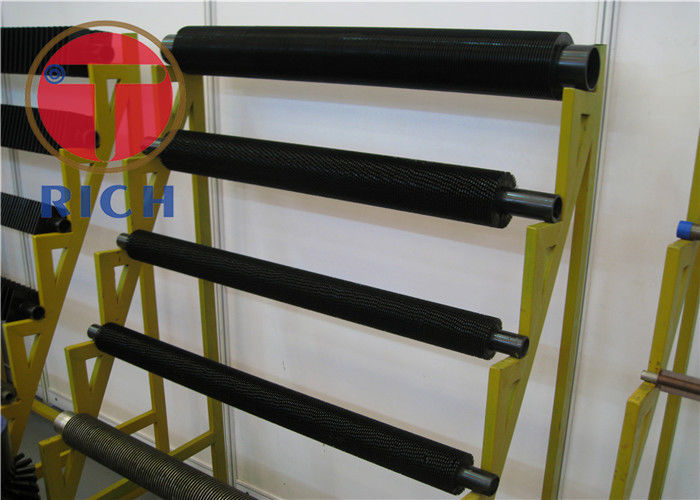

Plain Finned Aluminum Tubing Non - Secondary , Seamless Heat Exchanger Tubes For Exchanger 0

Aluminum fin tube
Application It is widely used for Heat exchanger ,Air-conditioner ,Refrigerator,Economizer and other parts of Heat Industry.
Material of base pipe

Carbon &Alloy steel, Aluminium or Stainless

ASTM A106/A53,ASTM/ASME SA210,ASTM A213,ASTM A179/A192

Material of fins Cold rolled steel strip,Aluminium or Stainless
Type of base pipe Seamlesss,Welded
Type of fins Aluminum,steel or Copper
OD of Base pipes 12mm-219mm
WT of base pipes 1.2-6mm
Height of fins 8mm-30mm
WT of fins 0.8mm-3.0mm
Pitch of fins 2.0mm-20mm
Length of blank area according to Customer's request.
Length of finned tubes ≤23m
Embeded Fin Tube Specification
Items
General Materials
Popular ASTM Materials


Core Tube Material
Carbon steel, ow-alloy steel,
stainless steel, brass, copper,
copper-nickel alloys,
aluminum bronze, nickel alloys.
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
CuNi70/30,CuNi 90/10
Fins Material
1. Aluminum
2. Copper.
1. Aluminum(Alu.1100,Alu.1060)
2. Copper.



QUALITY CONTROL

1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up

3. Heating and Hammering End for Cold Drawing

4. Cold Drawing and Cold Rolling, on line inspection

5. Heat Treatment, +A, +SRA, +LC, +N, Q+T

6. Straightening-Cutting to specified length-Finished Measuring Inspection

7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc

8. Packing and Stocking.



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.


The parameters and performance are as follows:
1: Technical parameters: The high degree of fin 0-16mm (or outside diameter of fin φ 38.1-φ77m); Pitch of fins 2.3-12mm; Length of finning tube 0.5~ 14m.
2: Single metal rolling finning tube: Pure aluminum 1060 or aluminum alloy 6063.
3: Double metal rolling finning tube: Tube-based protection from the outer layer of aluminum tubes, corrosion-resistant; Tube-based can be made from carbon steel pipe, in addition to, stainless steel tube and copper tube can also be used, as well as titanium alloy tube.

Package: The aluminum finned tubes are well packed in steel frame and polywood.

One Of Reference Drawing

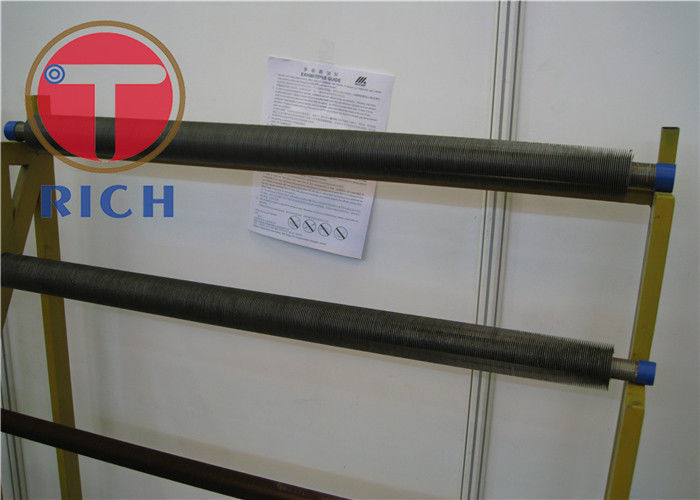

Plain Finned Aluminum Tubing Non - Secondary , Seamless Heat Exchanger Tubes For Exchanger 1

Plain Finned Aluminum Tubing Non - Secondary , Seamless Heat Exchanger Tubes For Exchanger 2
